Linear Profile Series

GYMR6-PF Probe.
High accuracy flat head type
(detachable probe element)
GYMR6-PF Probe.

This is the linear profile version of GYMR6.
Between probe and controller, RS-422 differential line driver
transmission, providing robustness against electrical noise, is used.
In combination with a digital output controller, Min.1μm resolution
is possible.
The inside probe element can be detached from the outer housing.
And by auto calibration function, a difference in the output when you
change the probe is adjusted automatically.

◆Associated controller
・Analogue output:GYHC(page 56), GYFC2 / 3(page 58)
・Digital output:GYDC-S1(page 60), GYDC-05(page 62)
・IRDS-GY (page 65) : When using the IRDM, you can connect with
　　　　CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
・DC-Q (page 64) : MELSEC-Q built-in unit

　( Created on Feb. 8. 2023 )

Specifications

Non-linearity≦±0.025%FS Typ.
Resolution(Analogue) 16bit
(Digital) Min. 1μm
Repeatability≦±0.001%FS
Temp. drift≦±20ppmFS/°C
Operating temp.-20°C〜+80°C
Storage temp.-40°C〜+80°C
Vibration15G ( 10〜2000Hz )
Shock100G ( 2msec )
IP gradeIP65

　・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
　・The specification of stroke less than 300mm is equal that of stroke 300mm.

　・Fixing clamps are supplied.　(One clamp is added every 500mm)
　　　stroke　　　< 600mm:2 pcs
　　　　　　　600-1000mm:3 pcs
　　　　　　　1001-1500mm:4 pcs
　　　　　　　1501-2000mm:5 pcs

Model No.

① Effective stroke
　　15mm〜7500mm


② Head dead zone
　　50 :50mm (Std.)
　　□ :□mm (option)(specified by customers)
　　　・Possible Min. length depends on the selected magnet.


③Tip dead zone
　　70 :70mm (Std.)
　　□ :□mm (option)(specified by customers)
　　　・Possible Min. length depends on the selected magnet.


④ Associated magnet
　　PFU : PFU slide magnet
　　FE : No.5N-UK
　　BP : No.5PFT-LG
　　M11N : No.11N
　　M11S : No.11S
　　・Please consult if you select a magnet of other than above.
　　・This Model code means only specifying associated magnet.
　　・Ordering magnet individually.


⑤ Cable connection
　　△G□F :pigtail / cable end : free
　　△G□A :pigtail / cable end : with connector for relay
　　△G□FC :pigtail / cable end : with connector for GYFC2/3
　　　　(□:cable length (m)、Max.10m)(*)
　　　　(△:cable type
　　　　　　　S:standard, H:high temp. cable, R:robot cable, UL : cUL cable)
　　　(*) In case of using extension cable sensor cable (m) + extension cable (m) ≦ 200m
　　　・Please confirm extension cable on page 120-122.


⑥ Output
　　00:depends on external controller


⑦ Clamp
　　F50 :with fixing clamps
　　N :without fixing clamps
　　　・ Standard pcs (depend on stroke) of the clamp are applied.
　　　　　Possible to order extra pcs individually.
　　　・ Please refer to page 118 for clamp drawings.

Dimensions

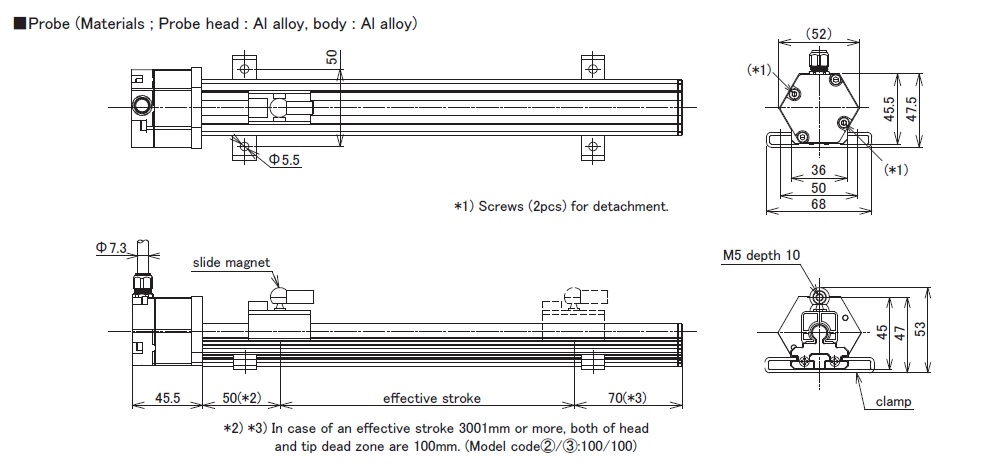

Probe Cable Detachable probe element
Zoom ZoomZoom
