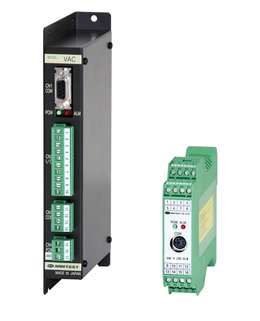

VAC seriesModel VAC Series

Model VAC Series

VAC series

Proportional Solenoid Valve Digital Amp
VAC series

Do you have any trouble in setting up Null, Gain and current output valueof a proportional solenoid valve?
Proportional Solenoid Valve Digital Amp

- Adjusting trimmers by a small screw driver takes time?
- Preparing a tester for observing Max. and Min. current values needed?
- Re-adjusting the trimmers when changing amp value needed?
- Max. current value set not changing while adjusting Null value?
- Individual manual adjustment of each amp value needed, even when using several amps ofthe same spec.?

■Features
①(VAC-V) Quick digital setting of current value for Null and Gain. It is not necessary to employ traditional procedure, adjusting Null and Gain trimmers while observing current or voltage value given to the solenoid by a user.Simply just give the requested value by 1mA.

②(VAC-S) Quick digital setting of output current value for each contact. 6-point contact for input. Current value and rise/fall time setting is possible for each point.

③Easy and quick setting by a PC or touchpanel. The parameters can be stored and duplicated.

④Monitoring function providing status update of input/output, input voltage and output current values.

⑤Two-piece connector.

⑥Emergency stop signal.

⑦Noise filter for contact input.

⑧LED for power supply and alarm.

⑨DC24V power supply

Specifications

ModelVAC-V, VAC-I, VAC-S
Input typeVAC-V : Voltage
VAC-I : Current
VAC-S : Contact
Input signalVAC-V : -10V~+10V (input impedance :16kΩ)
VAC-I : -20mA~+20mA (input impedance : 240Ω)
VAC-S : contact DC24V (±10%) 6 points (each 8mA)
Output0~1000mA (unit : 1mA)
Power supplyDC24V(±10%)
Consumption1.2A
Operating Temp0°C~50°C
Storage Temp-25°C~75°C
Weight600g approx.
Dimensions32(W) x 120(D) x 200(H)

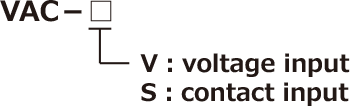

Model No.

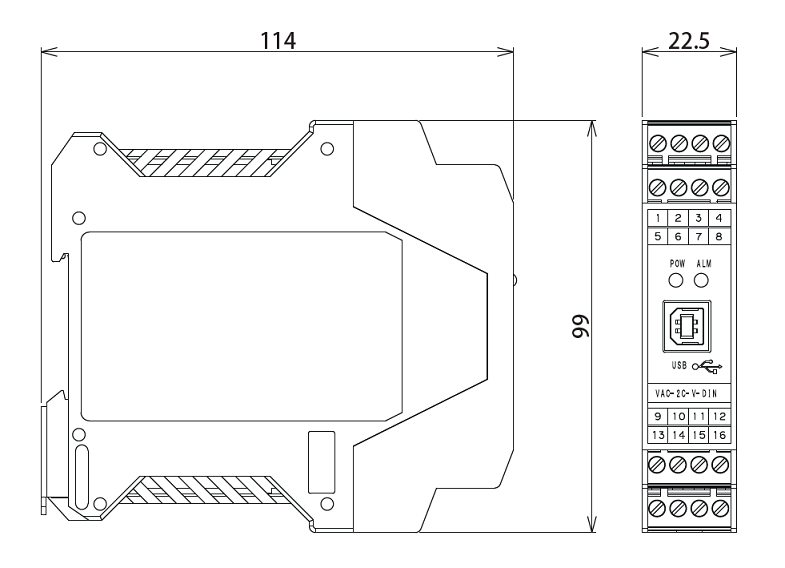

Dimensions

VAC-BOX VAC-DIN
Zoom Zoom
