SANTEST CO.,LTD.

IRDS-SSI.Model IRD Series

Model IRD Series

IRDS-SSI.

SSI communication module
IRDS-SSI.

This is a module for SSI interface of IRD series.
It interfaces with SSI output device like rotary encoder.

● Having 4 ports of SSI.
● The data is transferred to the industrial network (CC-Link,
EtherNet/IP, PROFIBUS) through IRD master module.
● Possible to transfer SSI data to other IRD slave module and
have analogue or digital output (IRDS-AIO, AO4, DO).
● Selection clock frequency (100, 200, 400, 800kHz).
● Selection number of bit (3 - 32bit).
● Possible to monitor special bit status such as error among the
acquired data.
● Possible to convert Gray to Binary.
● Possible to make parity check.
● Setting or changing inside parameter through IRD master
module over host industrial network or the dedicated Windows
software (IRD Manager).

Model No.

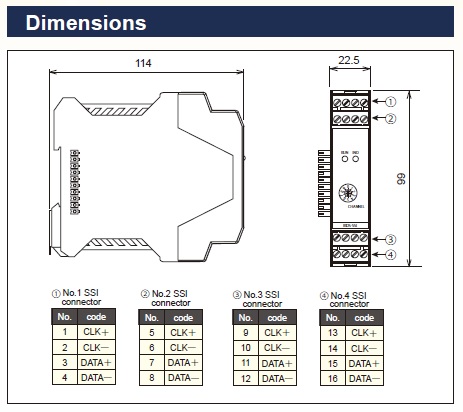

Dimensions
