Controller

GYDC-S1 Controller.
High accuracy digital output (Parallel output)
GYDC-S1 Controller.

GYDC-S1 outputs displacement of the magnet by a digital parallel
output of minimum resolution 1μm.
Using DIP switches in the case cover, you can change the code
(binary or gray), the output direction, and the logic of the alarm output.
And using pin A6 and A7 of parallel input in GYDC-S1, you can adjust
zero and full points.
With the captive software (GPM), zero and gain adjustment is
possible at user side.
If you need to support analog speed output, A / B phase pulse,
SSI output, high speed sampling, etc., please select the high-performance
digital controller "GYDC-05".

 ・ CE marking
 ・ Noise cancellation
 ・ GPM setting

◆Auto-calibration
In combination with the probe (GYMR6, GYSE-R, GYKMR,
GYRHP-MR6) having auto calibration function, a difference in
the output when you change the probe is adjusted automatically.

( Created on Nov. 12. 2021 )

Specifications

Position(24bit)Parallel (NPN),
Binary code (*1),
Negative logic (*2)
ResolutionStd. 0.01mm (Min.0.001mm) (*3)
0.1mm (*4)
Alarm Open drain (*5)
Power supply≦24VDC±5% (≦150mA)
Sampling freq.Std. 1kHz (up to stroke 1000mm)
Temp. drift≦±1μm/°C (*6)
Operating temp.0°C〜+65°C
Storage temp.-20°C〜+75°C

(*1) can be changed to Gary code at user side
(*2) Tr On = output “0”
(*3) associated probe : GYMR6, GYSE-R, GYcRS, GYMR5, GYFRS, GYKMR, GYRHP-MR6
(*4) associated probe : GYMS, GYGS, GYPM, GYPE2K, GYPMR, GYcRP, GYHTR, GYHR
(*5) cable disconnection and magnet drop
(*6) not include the temp. drift of the probe

Model No.

① Resolution
  D2 :0.1mm
  D3 :0.05mm
  D4 :0.01mm
  D5 :0.005mm
  D7 :0.002mm
  D8 :0.001mm

・probe :GYMR6, GYSE-R, GYcRS, GYMR5, GYFRS, GYKMR, GYRHP-MR6, D4 is Std..
・probe :GYMS, GYGS, GYPM, GYPE2K, GYPMR, GYcRP, GYHTR, GYHR, only D2 is available.

② Probe
MR6 : GYMR6
SR : GYSE-R
RS : GYcRS
RP : GYcRP
R5 : GYMR5
FS : GYFRS
HTR : GYHTR
HR24 : GYHR
MS : GYMS
GS : GYGS
PM : GYPM
P2 : GYPE2K
RR : GYPMR
KMR : GYKMR
PMR6 : GYRHP-MR6
ETS : EX-GYdT-R
ESP : EX-GYdS-R


③ Effective Stroke (mm)


④ Head dead zone
  S :20mm / 30mm / 50mm(Std.)
  □ :□ mm (option) (specified by customers)

  ・Possible Min. length depends on the selected magnet or float.
  It's different in the standard dead zone length depending on connected probes.


⑤ Associated magnet or float

magnetfloat
MG0:No.Φ
M0SM:No.ΦSPM
M0LM:No.ΦLPM
M2P:No.2P
M2PN:No.2PN
M3:No.3
M11:No.11
M11N:No.11N
T142:No.T14-M2
T144:No.T14-M4
T162:No.T16-M2
T163:No.T16-M3
BA:No.2KYN-17-LG
F28S:Φ28SUS316L
F30S:Φ30SUS316L
F40S:Φ40SUS316(B)
F42S:Φ43SUS316L
F50S:Φ50SUS316L
F54S:Φ54SUS304
F25N:RF-A10 plastic
F28N:RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.

【 Output code / Direction of output 】

◆ Output code is Binary.
   It’s possible to change to Gray by DIP switch on GYDC-S1.
◆ The output increases when magnet (float) moves toward tip.
   It’s possible to change the direction of output by DIP switch on GYDC-S1.

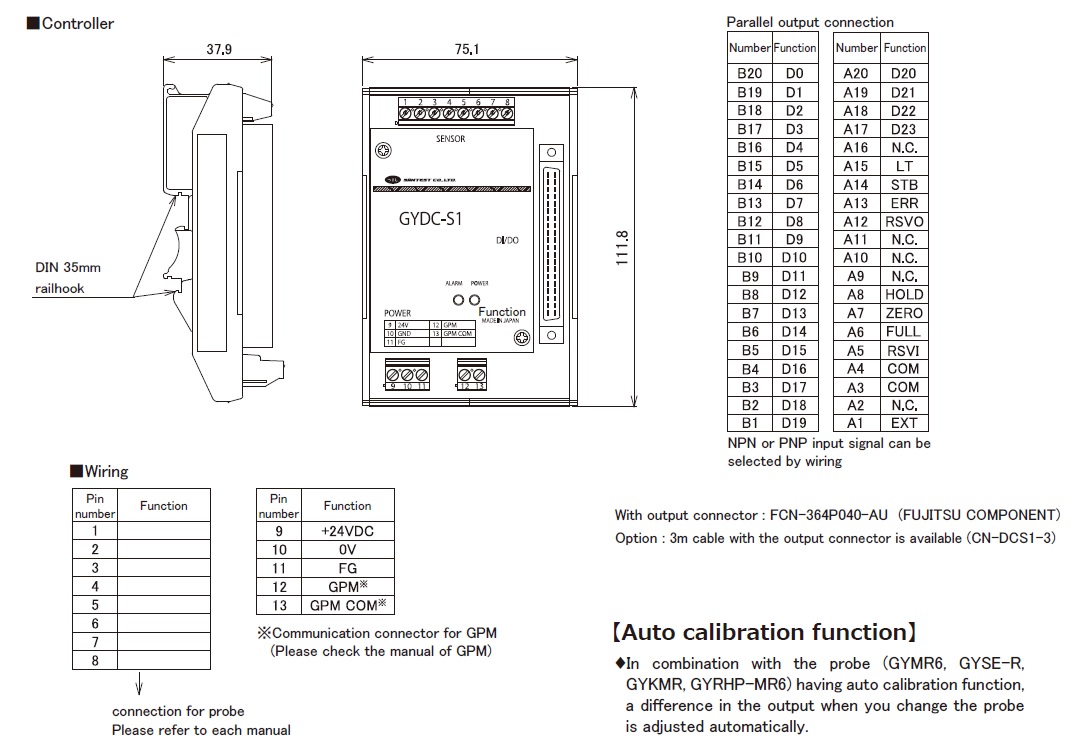

Dimensions

Controller
