Model IRD Series

IRDS-DO.
Digital OUTPUT module
IRDS-DO.

This is a slave module for digital OUTPUT of IRD series.
Having two kinds of output, parallel and switch. Having
digital output from host industrial network through IRD
master module or from other IRD slave module.

● Having digital output from host industrial network through
IRD master module.
● Having digital output data transferred from other IRD slave
module.
● Parallel Output (PO) mode : Parallel (Binary / Gray / BCD,
6 digits, with sign) output. With round function.
● Switch Output (SO) mode : Switch output with 0.2ms response.
With switch program function, multi dog, setting hysteresis.
● Combined mode : Possible to set both outputs.
● Setting or changing inside parameters through IRD master
module over host industrial network or the dedicated Windows
software (IRD Manager).
● RoHS compliant

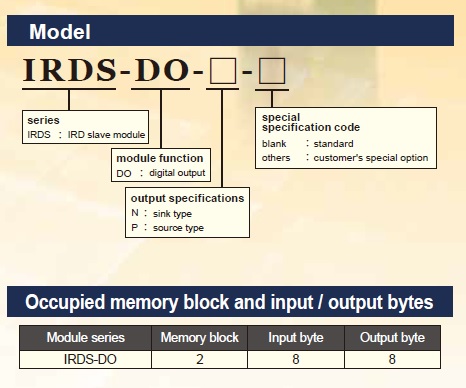

Model No.

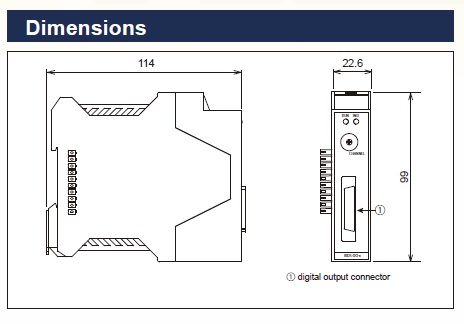

Dimensions


Zoom
  • Catalogue
  • Manuals
