Controller

GYFC2 / 3 Controller.
Analogue output
GYFC2 / 3 Controller.

GYFC2/3 controller outputs 0-10V or 4〜20mA for position
and ±10V for velocity (velocity output : option).
Having alarm output for cable cut and missing magnet (standard function).
GYFC2/3 controller can be used in combination with GYMR6, GYcRP,
GYcRS, GYMR5, and GYFRS probe.
GYFC2/3 controller can't be used in combination with GYSE-R probe.
And a connection with a probe will be a terminal stand, not a
connector for GYFC3.

・ Noise cancellation


( Created on Nov. 12. 2021 )

Specifications

Resolution
(position)
≦0.005%FS (*1)
≦0.01%FS (*2)
Position (OUT1)
(OUT2 : option)
0〜10V (Max.5mA, Min.2kΩ)
4〜20mA (load :Max.500Ω)
or inverted output etc.
Velocity (option)±10V (Resolution: 1%FS)
Alarm (*3)Dry contact b 1A 30VDC(*3)
Power supplyStd. : +24VDC±5% (≦350mA)
Option (*4) : ±15VDC, +12VDC
Sampling freq. (*5)Std. 1kHz (up to stroke 1000mm)
Temp. drift≦±20ppmFS / °C
Operating temp.0°C〜+65°C
Storage temp.-20°C〜+85°C

・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.
・Zero/Gain adjustments by trimmer are possible. (Std.:±3%FS)

(*1) associated probe :GYMR6, GYcRS, GYMR5, GYFRS
(*2) associated probe :GYcRP
(*3) Cable disconnection and magnet drop
(*4) The associated probe is GYcRP only.
(*5) Sampling frequency is Max. 2kHz. It depends on the total rod length (model⑨), and the consumption current increases.

Model No.

① Controller type
  2 :phenix connector type (Std.)
  3 :terminal type


② Probe
  MR6 :GYMR6
  RS : GYcRS
  RP : GYcRP
  R5 : GYMR5
  FS : GYFRS
  ESP : EX-GYdS-R
  RPH2 : GYcRP with H2 option


③ Effective stroke (mm)


④ Head dead zone
  S :50mm (Std.)
  □ :□ mm (option) (specified by customers)

・Possible Min. length depends on the selected magnet or float.


⑤ Associated magnet or float

magnetfloat
MG0 :No.Φ
M0SM :No.ΦSPM
M0LM :No.ΦLPM
M2P : No.2P
M2PN : No.2PN
M3 :No.3
M11 :No.11
M11N : No.11N
T142 : No.T14-M2
T144 : No.T14-M4
T162 : No.T16-M2
T163 : No.16-M3
BA : No.2KYN-17-LG
F28S :Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.


⑥ Position output (OUT1 / OUT2)

OUT1OUT2
AD/AR0〜10V10〜0V
AD/BD0〜10V4〜20mA
AR/AR10〜0V20〜4mA
CD05/CR05-5〜5V5〜-5V
CD10/CR10-10〜10V10〜-10V


⑦ Power supply
  24S :+24VDC (Std.)
  15W :±15VDC (Std.) ( GYcRP probe only )
  12S :+12VDC (option) ( GYcRP probe only )

±15VDC +15V(±5%)≦200mA
-15V(±5%)≦100mA
+12VDC +12V(±3V)≦700mA


⑧ Option ( blank : No option )
  Velocity output (Note1)
 V[ ] ( [ ] : Max speed (mm/sec) )

(Note1)
・You can specify max speed within 3%〜300%/sec of effective stroke(mm).
    ( ex : effective stroke = 300mm, 9mm/sec〜900mm/sec)


⑨ Option
   X2 :2kHz sampling (total rod length : Max. 750mm)

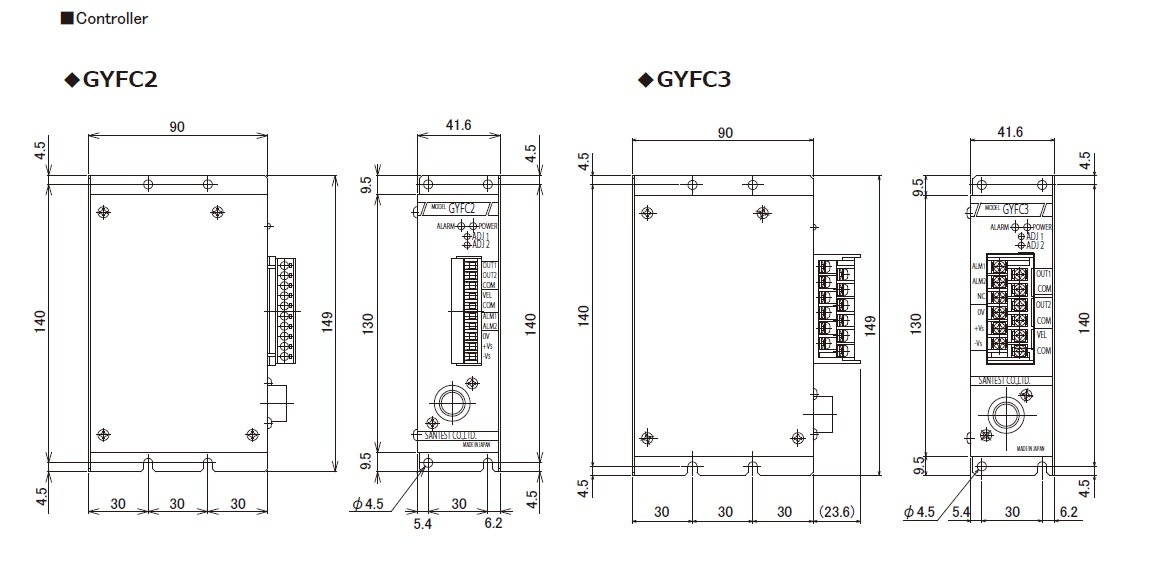

Dimensions


Zoom
