Model ATG Series

ATG1
High accuracy linear gauge
ATG1

ATG1 series is the all-in-one type of linear gauge.
A magnetic resistance element and magnetic tape are mounted inside
the sensor.

The tape is magnetized with the same pitch of N and S pole precisely.
The magnetic resistance element detects the magnetic fields on
the tape and LSI converts the measured values into pulse output.

Specifications

Measuring range10mm
Outputincremental
A/B pulse, line driver
Resolution1μm (standard9), 0.2μm (option)
Linearity±2μm (≦1mm:partial of stroke), ±10μm (≦10mm:total stroke)
Repeatability≦1μm at 20°C
Measuring force1.3〜2.6N (lateral) at 20°C
Power supplyDC24V (±2V), 0.15A
Travel speed500mm/s (Resolution:1μm), 100mm/s (Resolution:0.2μm)
Operating temp.0°C〜+60°C
Storage temp.-20°C〜+60°C
Vibration6G (or 40Hz 2mmpp)
Shock50G (2ms)
ProtectionIP67 (dustproof waterproof structure)
Sensor cablestandard 1m (option Max.10m)
Extension cableMax.30m
Weightapprox. 200g (including 2m-cable)

Model No.

① Resolution
　　L :1μm (standard)
　　H :0.2μm (option)

② Material of bellows
　　N :NBR (standard)
　　F :Fluoro rubber (option)

③ Sensor cable length(m)
　　in unit of meter (Max. 10m)

④ Extension cable length(m)
　　in unit of meter (Max. 30m)
　　note)③+④≦40m

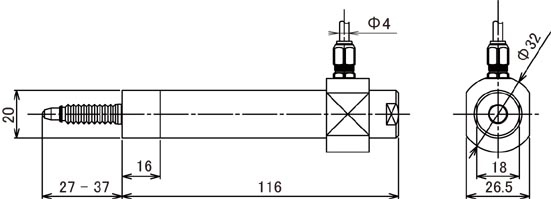

Dimensions

sensor
Zoom Zoom

・Stylus :carbide ball (HRA : ≧89)
・Sensor cable :diameter Φ4(PVC sheath)
・Extension cable :diameter Φ6.6(PVC sheath)
・Body material:SS304
