DC-Q Controller.
MELSEC-Q Built-in unit
DC-Q Controller.

This unit is the converter for GY probe, which can be built into PLC
MELSEC-Q (Mitsubishi).
One unit can be associated with 1 probe (1 axis) or 2 probes (2 axes)
and stores digital position data (Binary code).
The CPU unit can read the data through the buffer memory.

【Feature】
① Supportable PLC:
 Can be connected to the Q bus as an I / O unit for MELSEC-Q.

② Conformity detector:
 This module is compatible with the GY series.

③ Sensor value:
 Outputs the position of the magnet moving along the sensor
 probe with arbitrary resolution (min. 1 μm).
 Since the position output is a full absolute method, highly
 reliable data can be obtained.

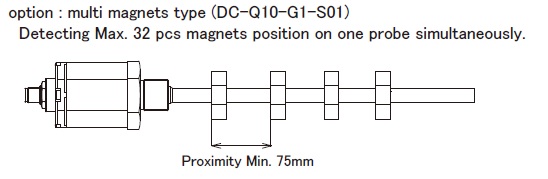

④ Multi-magnet support:
 Up to 3 magnet positions can be detected at the same time.
 (Option: Up to 32 can be supported for 1-axis specifications.)

⑤ Zero setting function:
 The zero position can be changed from the Y output from the CPU.

⑥ Upper and lower limit detection function:
 Limit output for the set upper and lower limit values.

⑦ External preset function:
 The zero position can be changed by an external input signal.

⑧ Pulse output function (model option):
 Outputs A / B phase pulse to the outside.

⑨ Self-diagnosis function (RAS function):
 The following four abnormalities are detected.
 Sensor not connected, Internal hardware error,
 Sensor magnet error, Sensor data error

⑩ RoHS compatible

<Connection probe >
 G1 type: GYSE-R, GYcRS, GYMR6, GYFRS, GYHTR(*),
     GYKMR, GYRHP-MR6, EX-GYdT-R
 G2 type: GYcRP, EX-GYdS-R
 G3 type: GYHR

( Created on Nov. 15. 2021 )

Specifications

No. of Probe1 axis or 2 axes
ResolutionProgramable Min. 1μm (G1)
Sampling freq.1kHz (Std.) ( up to stroke 1000mm )
I/O occupation
point
Intelligent, 32 points
Current
consumption
1 axis : 0.7A (5VDC)
2 axes : 0.9A (5VDC)
FunctionExternal preset, upper and lower limit
Cable lengthMax. 200m (G1, G2)
Max.100m (G3)
Working temp.0°C〜+60°C
Storage temp. -20°C〜+75°C

Model No.

① No. of probe
  1 :1 axis
  2 :2 axes

② Application
  blank :FA industry
  H :steel industry (resin coating against humidity)

③ Probe type
  G1:GYMR6, GYSE-R(*1), GYcRS, GYFRS, GYKMR, GYHTR(*2), GYRHP-MR6, EX-GYdT-R
  G2:GYcRP, EX-GYdS-R
  G3:GYHR
  (*1)special shield connection
  (*2)Min. resolution is 0.05 mm

④ Option(1 axis type only)
  blank :without option
  P :with pulse output
  -S01 :multi magnets type

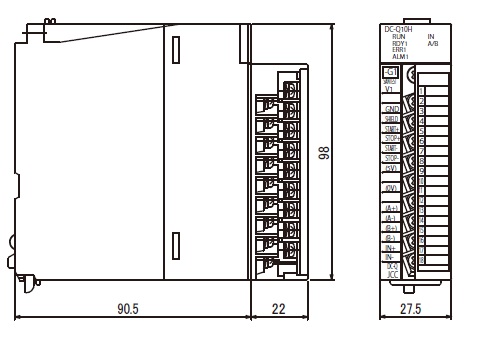

Dimensions

Dimensions
