I-SAC MX

I-SAC Series High-end Version
I-SAC MX

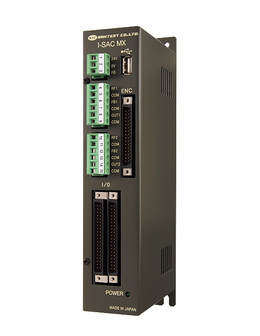

I-SAC MX is the high-end version of series mploying 32bit DSP, in addition motion control unction is integrated. Increased I/O interfaces enable flexible measures to most user needs.

[ Motion Program ]
User can set a motion profile into ISAC-MX and can automatically control the plant according to the profile.
Various interfaces with PLC can be worked by giving special target value needed.

[ Various Handshaking Signals ]
Servo On/Off, Automatic Zero Searching, In-Position output etc are equipped and can be easily interfaced with PLC.

[ 2-Axis Independent control and Axis Switching ]
Two Independent controllers are built-in and can swith axes during operations. Example is a firstly position control then immediate switch to load control in real time.

Specifications

elec powerDC 24V (±15%) 250mA
input signalanalog (±10V or ±20mA) (A/D16bit) or CW/CCW, pulse train/direction、A/B 1/2/4 (multiply) (differential line driver or open collector)
output signal±10V or ±50mA max load 200Ω (D/A16bit) (scale adjustable)
sampling5kHz
general-purposed interfaceInput 17 points, Output 12 points (per channel)
optionsIntegration compensation, velocity/acceleration feedback, dither, motion etc.

Model No.

channel 1

(1):command input V,I,D,O

(2):feed-back input V,I,D,O

(3):controlled output V or I

channel 2

(4):command input V,I,D,O

(5):feed-back input V,I,D,O

(6):controlled output V or I

Symbol

Command/feed-back

V:analog voltage (±10V)

I:analog current (±20mA)

D:differential line-driver

O:digital open collector

Output

V:analog voltage ±10V

I:analog current ±50mA (load200ΩMAX)

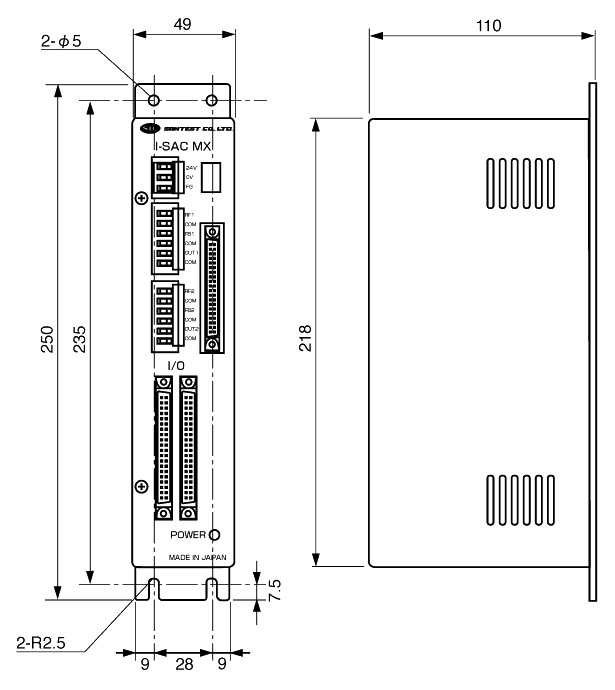

Dimensions
