SANTEST CO.,LTD.

IRDS-AO4.Model IRD Series

Model IRD Series

IRDS-AO4.

Analogue OUTPUT module
IRDS-AO4.

This is a slave module for analogue OUTPUT of IRD series.
It has 4 output ports for voltage or current.

● Having 4 ports for voltage or current output.
● Voltage range : ±10V, resolution : 1/60000
● Current range : 0-20mA, resolution : 1/30000
● Output analogue data which is transferred from other IRD
slave module or from host industrial network through IRD
master module.
● Possible to make inside parameters setting (offset value to
the output analogue and low pass filter degree etc.) through IRD
master module over host industrial network or the dedicated
Windows software (IRD Manager).
● Possible to make the upper and lower limit in output range.
With digital low pass filter for eliminating noise on output analogue
data.
● 0.2ms (5kHz) update inside *1
● RoHS compliant

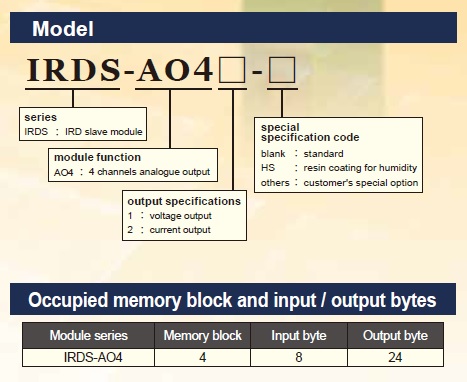

Model No.

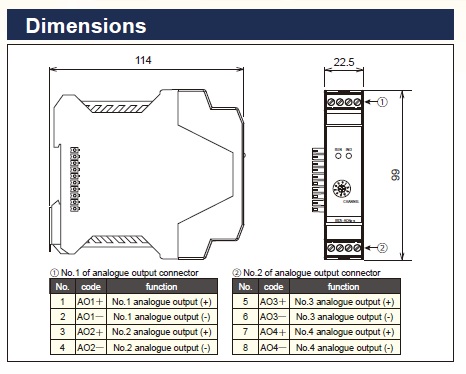

Dimensions
