GYMR6 Probe.
High accuracy flat head type
(detachable probe element)
GYMR6 Probe.

GYMR6 probe is the flat head type, high accuracy probe which put
the thickness of the head part of a GYSE probe in 48.5mm by the
latest circuit design.

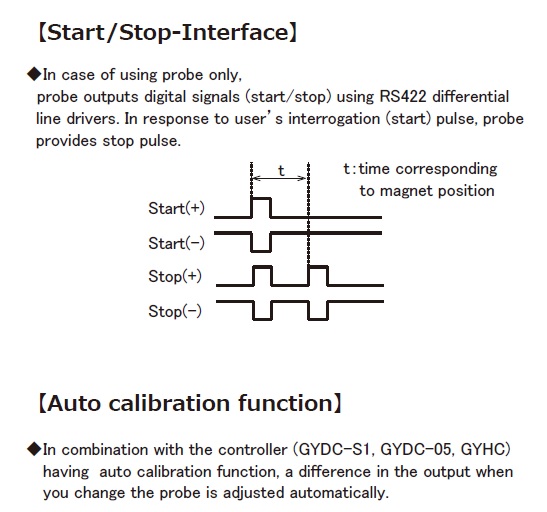

Between probe and controller, RS-422 differential line driver
transmission, providing robustness against electrical noise, is used.
In combination with a digital output controller, Min.1μm resolution is
possible.
The inside probe element can be detached from the outer housing.
And by auto calibration function, difference in the output when you
exchange the probe is adjusted automatically.

◆Associated controller
・Analogue output:GYHC(page 52, 53), GYFC2 / 3(page 54, 55)
・Digital output:GYDC-S1(page 56, 57), GYDC-05(page 58, 59)
IRDS-GY (page 61) : When using the IRDM, you can connect with
    CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
DC-Q (page 60) : MELSEC-Q built-in unit

◆Auto-calibration
 When combined with an auto-calibration compatible controller.
  (GYHC, GYDC-S1, GYDC-05).
 Output deviation (error due to individual sensor differences) that
 occurs when replacing the sensor is automatically eliminated.
 You can improve compatibility when replacing the sensor.

 ( Created on Nov.15.2021 )

Specifications

Non-linearity≦±0.025%FS Typ.
Resolution(Analogue) 16bit
(Degital) Min. 1μm
Repeatablity≦±0.001%FS
Temp. drift≦±20ppmFS / °C
Max. Pressure35MPa ( probe rod )
Operating temp.-20°C〜+80°C
Storage temp.-40°C〜+80°C
Vibration15G ( 10〜2000Hz )
Shock100G ( 2msec )
IP gradeIP67

 ・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
 ・The specification of stroke less than 300mm is equal that of stroke 300mm.



Model No.

① Effective stroke
  15〜7500mm

② Head dead zone
  S :50mm (Std.)
  □ :□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
  S:70mm/ 90mm/ 100mm(Std.)
  ・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZmagnetfloat
70mmM2PN, M0SM, M0LM,
M3,M11N,BA
F25N,F28N
90mmF28S,F30S
100mmT144,T163F40S,F42S,F50S,F54S

   □ :□mm ( option ) ( specified by customers )
   ・Possible Min. length depends on the selected magnet or float.

④ Thread / Rod diameter
  M :M24xP1.0, rod Φ10(Std.)
  N :M18xP1.5, rod Φ10
  U :3/4-16UNF-3A, rod Φ10
  M8 :M24xP1.0, rod Φ8
  N8 :M18xP1.5, rod Φ8
  U8 :3/4-16UNF-3A, rod Φ8
  M14 :M24xP1.0, rod Φ13.8
  Z :EF ( flexible element ) only ( without outer housing )

⑤ Associated magnet or float

magnetfloat
M2PN :No.2PN (Std.)
M0SM :No.ΦSPM
M0LM :No.ΦLPM
M3 :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3
BA : No.2KYN-17-LG
F28S :Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.

⑥ Cable connection
  △G□F :pigtail / cable end : free
  △G□A :pigtail / cable end : with connector for relay
  △G□FC :pigtail / cable end : with connector for GYFC2/3
    ( □ :cable length (m)、Max.10m ) (*)
    ( △ :cable type
     S :standard, H :high temp. cable, R :robot cable, UL :cUL cable)
   (*) In case of using extension cable
       sensor cable (m) + extension cable (m) ≦ 200m
       ・Please consider extension cable on page 112.

⑦ Output
  00:depends on external controller

⑧ Option
 blank :without option
 SRT :SRT option

Dimensions

Probe Detachable probe element Cable
Zoom ZoomZoom

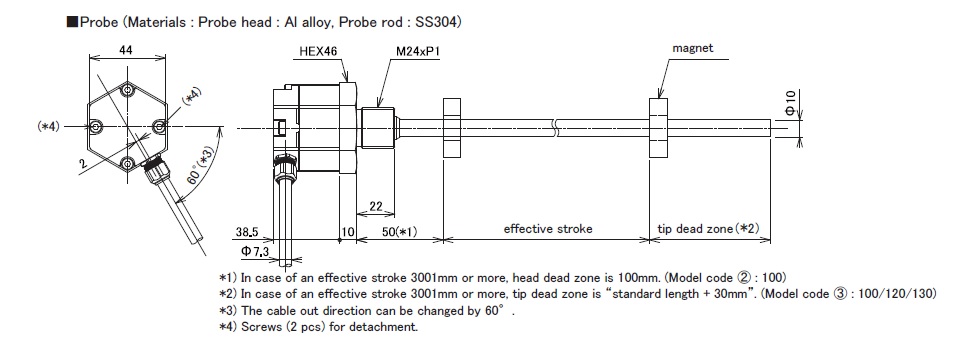

  ・materials : Probe head : Al alloy,  Probe rod : SS304
  ・magnet : Select one from group GG on page 110
  ・The tip dead zone length depends on the selected magnet or float.
