Environmentally Resistant Linear Encoder
Model SMR Series

SMR series are the linear encoders using GMR (Giant Magneto Resistor) element. The sensor outputs A/B incremental signal according to relative movement between sensor and ferromagnetic scale of having 2mm pitch serration.

●Sensor adopts a highly-sensitive GMR element. It gives a stable output at velocity up to 15m/sec by high speed digital signal processing.

●SMR works without mechanical contact and can be used under harsh environments such as injection cylinder and die-casting machine.

●Serrated ferromagnetic scale shall be provided by customer.

Specifications

Power supply24VDC±10% 0.05A
Resolution0.5mm/pulse (Multiply by 4)
Output typeA/B NPN O.C. 30VDC/0.1A
Frequency7.5kHz
Phase difference90°±10°
Duty rate50%±10%
Operating temp.temp. -20°C to 60°C
ProtectionIP64

Model No.

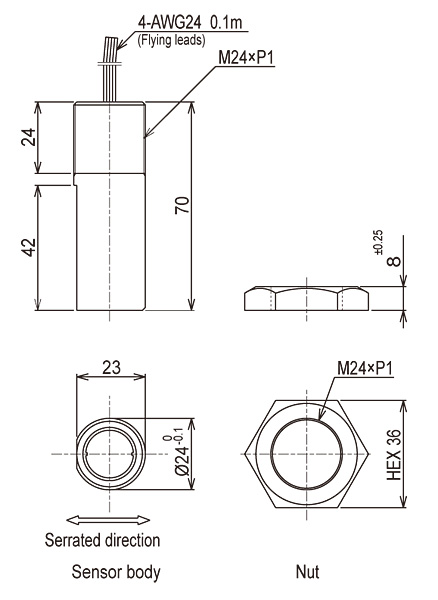

Dimensions


Zoom

Material:Stainless304 (Sensor) / Stainless316 (Nut)

Contact Form
