SANTEST CO.,LTD.

RR-16Q.Model RR Series

Model RR Series

RR-16Q.

【Discon.】
RR-16Q.

Discontinued as of March 2022
--------------------------------------
・Low height
Simple structure : Constructed by two PCB bords and one rotor with magnetic plate

・Robust
Patterned Coil on multi-layered PCB : Hard to break compared with winding coil

・High Performance
High resolution (Absolute type : 0.22degree/ bit (16384bits/rotation)
Incremental type : 00055degree / bit (65536bits / rotation)
Accuracy (Absolute type : 1degree max. / Incremental type : 0.4degree max)

Specifications

Resolition Per Rotation16bit(1/65536, Approx. 0.055°/bit)
Error Valuemax. 0.4°
Repeatability±4LSB(approx. ±0.022°)
Absolute outputParallel,Binary or Gray code, Open Collector DC24V 10mA
Incremental outputA/B RS-422 Line Driver (Quad devide) (without Z)
Pulse frequency-
Output(Alarm) Open Collector DC24V 10mA
Input(Error Clear) DC24V internal R:3kΩ)
Power SupplyDC24V (±5%) 150mA
Allowable shaft load radial98N (10kgf)
Allowable shaft load thrust49N (5kgf)
Max.rpm1500rpm
lifetime4x10^9turn(66,00H at 1000rpm)
start torque0.05N・m
inertia moment1.0x10^-5 (kg・m^2)
Vibration20G(15-60Hz) XYZ earch direction : 1 hour (Sensor)
Shocks100G (2msec) (Sensor)
Working Temp-20-+80°C(Sensor) / 0-+60°C (Controller)
Strage Temp-40-+100°C (Sensor) / -40-+80°C (Controller)
Working Humidity10-90%RH (without dew)
Protection GradeIP65 (Sensor)
Max.cable length100m (Snsor cable + extension cable)
WeightApprox. 900g (Sensor) / Approx. 200g (Controller)

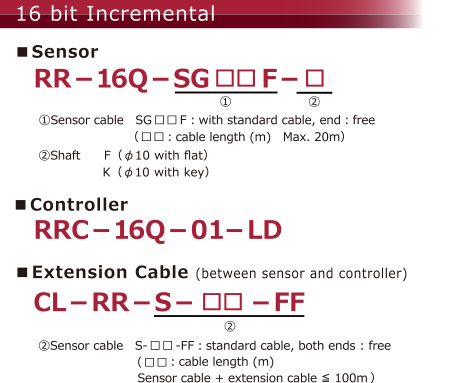

Model No.

Dimensions

Sensor (14R, 16Ω) Controller Wiring
Zoom ZoomZoom

Contact Form
