High Performance Series

GYHR Probe.
High ambient temperature
GYHR Probe.

GYHR probe is designed to operate at high ambient temperatures
up to 100°C, including sensor head.
Electronic parts inside are minimized, yet provide high performance
and reliability in the application.
Cable used has reinforced silicon rubber sheath which stands
ambient temperatures up to 150°C.
Max cable extension is 100m.

◆ Associated controller
・Analogue output :GYHC(page 52, 53)
・Digital output :GYDC-S1(page 56, 57), GYDC-05(page 58, 59)
IRDS-GY(page 61) : When using the IRDM, you can connect with
  CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
DC-Q (page 60) : MELSEC-Q built-in unit


( Created on Nov.16.2021 )

Specifications

Non-linearity≦±0.1%FS Typ.
Resolution( Analogue ) ≦0.01%FS
( Digital ) 0.1mm
Repeatability≦±0.05%FS
Temp. drift≦±70ppmFS /°C
Max. Pressure35MPa ( probe rod )
Operating temp.-5°C〜+100°C
Storage temp.-40°C〜+120°C
Vibration6G ( 40Hz 2mmPP )
Shock50G ( 2msec )
IP gradeIP64

 ・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
 ・The specification of stroke less than 300mm is equal that of stroke 300mm.

Model No.

① Effective stroke
  15〜2000mm

② Head dead zone
  S :50mm (Std.)
  □ :□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
  S:90mm/ 100mm(Std.)
・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZmagnetfloat
90mmF28S, F30S
100mmT142, T162F40S, F42S, F50S, F54S

   □ :□mm ( option ) ( specified by customers )
   ・Possible Min. length depends on the selected magnet or float.

④ Thread / Rod diameter
  K8 :M16xP1.5, rod Φ8(Std.)
  K :M16xP1.5, rod Φ10
   ・In case of stroke longer than 1001mm, rod Φ10 should be used.

⑤ Associated magnet or float

magnetfloat
T142 :No.T14-M2
T162 :No.T16-M2
F28S :Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.

⑥ Cable connection
  G□F :pigtail / cable end : free
  G□A :pigtail / cable end : with connector for relay
     ( □ :cable length (m)、Max.10m ) (*)

 (*) In case of using extension cable
     sensor cable (m) + extension cable (m) ≦ 100m
   ・Please consider extension cable on page 112.

⑦ Output
  24:depends on external controller
  (*) In case of replacing old model (⑦:00), please consult us.

⑧ Option
  blank :without option
  H2 :probe rod only 200°C
   ・Please confirm the details of options on page 106.

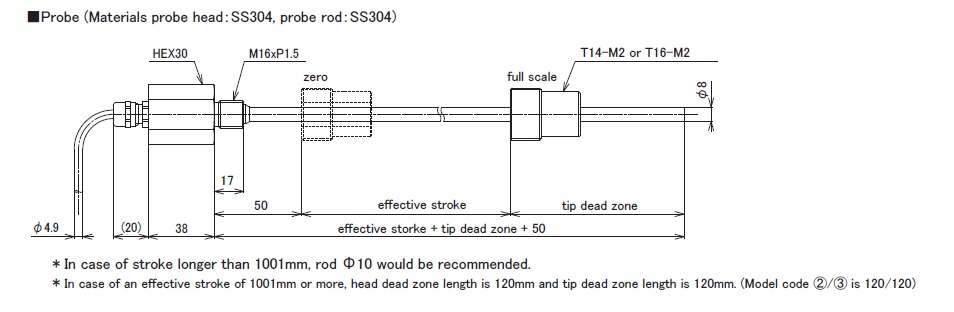

Dimensions

Probe Cable
Zoom Zoom

 ・Material probe head:SS304, probe rod:SS304
 ・The tip dead zone length depends on the selected magnet or float type.
