Heavy Duty Type

GYRHP-MR6 Probe.
Pressure resistance rod : 70MPa, heavy duty type
(with external controller)
GYRHP-MR6 Probe.

GYRHP-MR6, which is different from conventional GY series, achieved
pressure-resistant 70MPa (rod) by redesign in head and rod part.
Standard of protection grade is IP67, but you can select water-proof type
(IP68) or cable conduit type (IP69K) by option.
Between probe and controller, RS-422 differential line driver
transmission, providing robustness against electrical noise, is used.
In combination with a digital output controller, Min. 1μm resolution is
possible.
And by auto calibration function, difference in the output when you
exchange the probe is adjusted automatically.

◆Associated controller
・Analogue output:GYHC(page 52, 53), GYFC2 / 3(page 54, 55)
・Digital output:GYDC-S1(page 56, 57), GYDC-05(page 58, 59)
・IRDS-GY (page 61) : When using the IRDM, you can connect with
　　　　CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
・DC-Q (page 60) : MELSEC-Q built-in unit

◆Auto-calibration
　When combined with an auto-calibration compatible controller.
　　(GYHC, GYDC-S1, GYDC-05).
　Output deviation (error due to individual sensor differences) that
　occurs when replacing the sensor is automatically eliminated.
　You can improve compatibility when replacing the sensor.


( Created on Nov. 19. 2021 )

Specifications

Non-linearity≦±0.025%FS (Typ.)
Resolution(Analogue) 16bit
(Digital) Min. 1μm
Repeatability≦±0.001%FS
Temp. drift≦±20ppmFS / °C
Max. Pressure70MPa ( probe rod )
Operating temp.-20°C〜+80°C
Storage temp.-40°C〜+80°C
Vibration15G ( 10〜2000Hz )
Shock100G ( 2msec ) / 800G ( SRT option )
IP gradeIP67(Std.), IP68 / IP69K (option)

　・The specification of stroke less than 300mm is equal that of stroke 300mm.
　　The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.

　◆ Associated controller
　　・analogue output :GYHC (page 52, 53)
　　・digital output :GYDC-S1(page 56, 57), GYDC-05(page 58, 59)
　　・IRDS-GY(page 61) : When using the IRDM, you can connect with
　　　　　　CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
　　・DC-Q (page 60) : MELSEC-Q built-in unit

Model No.

① Effective stroke
　　15-1000mm

② Head dead zone
　　S :50mm(Std.)
　　□ :□mm(specified by customers)

　　・Possible Min. length depends on the selected ma

④ Mount / Rod diameter
　　F12 :pressure-resistant flange, rod Φ12 (Std.)

③Tip dead zone
　　S :70mm(in case ⑤ is BA)
　　 100mm(in case ⑤ is T163)
　　□ :□mm(specified by customers)

⑤ Associated magnet
　　BA :No.2KYN-17-LG(STD)
　　T163 :No.T16-M3

　　・Please consult if you select a magnet of other than above.
　　・This Model code means only specifying associated magnet, please order separately.

⑥ Cable connection
　　○△G□◇F :pigtail / cable end : free (STD)
　　○△G□◇A :pigtail / cable end : with connector for relay
　　WP3G□◇F :pigtail of water proof cable / cable end : free
　　WP3G□◇A :pigtail pf water proof cable / cable end : with connector for relay

　　　○:pigtail type (S : standard, C : cable conduit)
　　　△:cable type (S : standard, H : high temp. cable, R : robot cable, UL : cUL cable)
　　　□:cable length (m)　Max.10m(*)
　　　◇:head shape type (L : radial, S : axial)

　　(*　)In case of using extension cable, sensor cable (m) + extension cable (m) ≦ 200m

⑦ Position output
　　00:depends on external controller

⑧ Option
　　blank :without option
　　SRT :SRT option (800G)

① Probe
　　PMR6:GYRHP-MR6

② Cable type
　　S : Standard cable
　　H : High temp. cable
　　R : Robot cable
　　W : Water proof cable

③ Cable length (m)

④ Cable end (sensor side)
　　F : free
　　S : with straight connector

⑤ Cable end (controller side)
　　F : free
　　A : with connector for relay

Dimensions

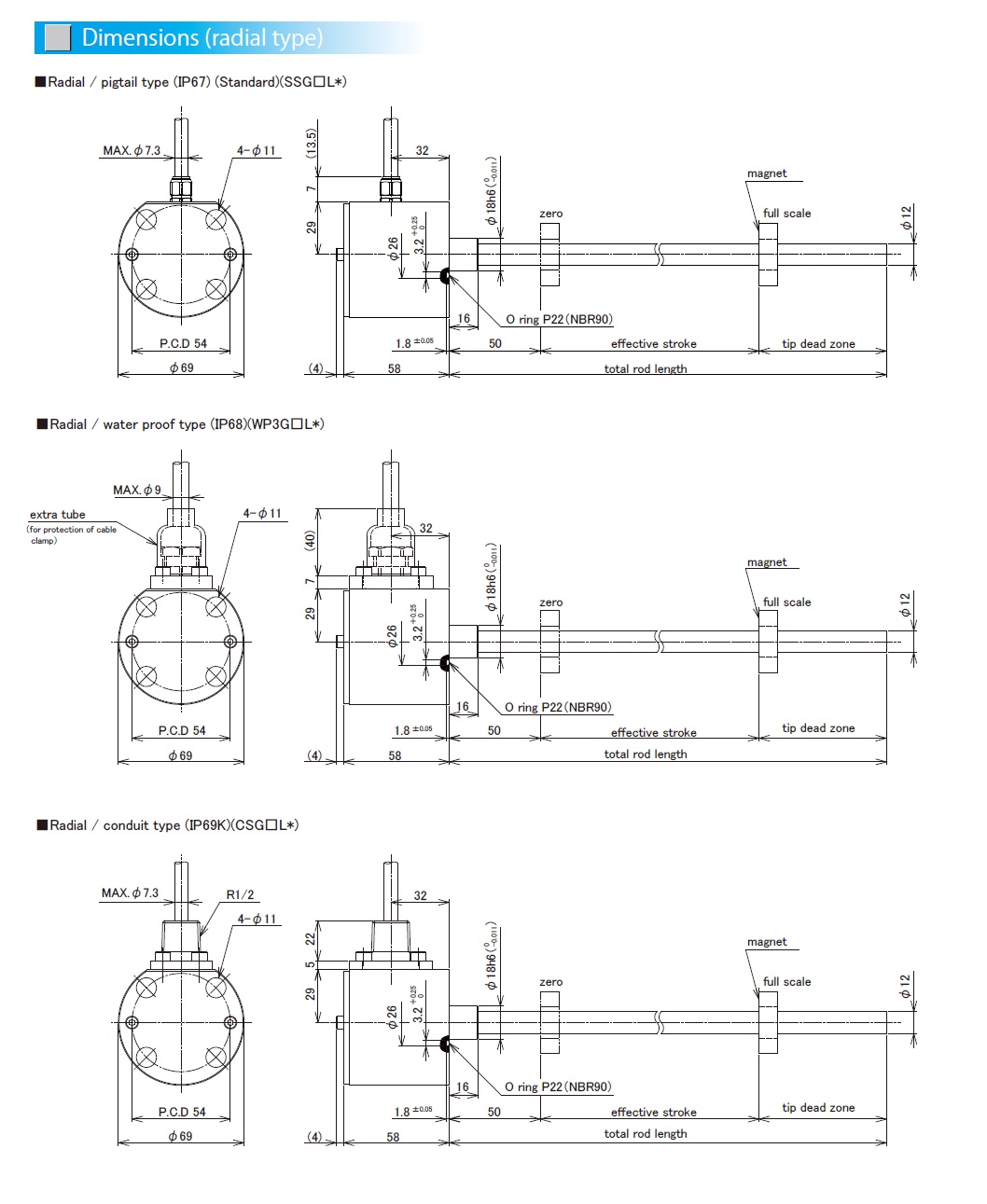

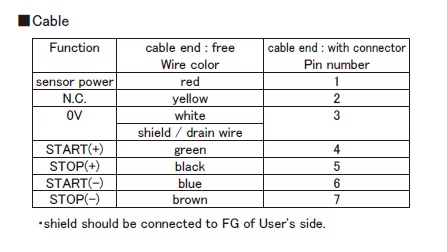

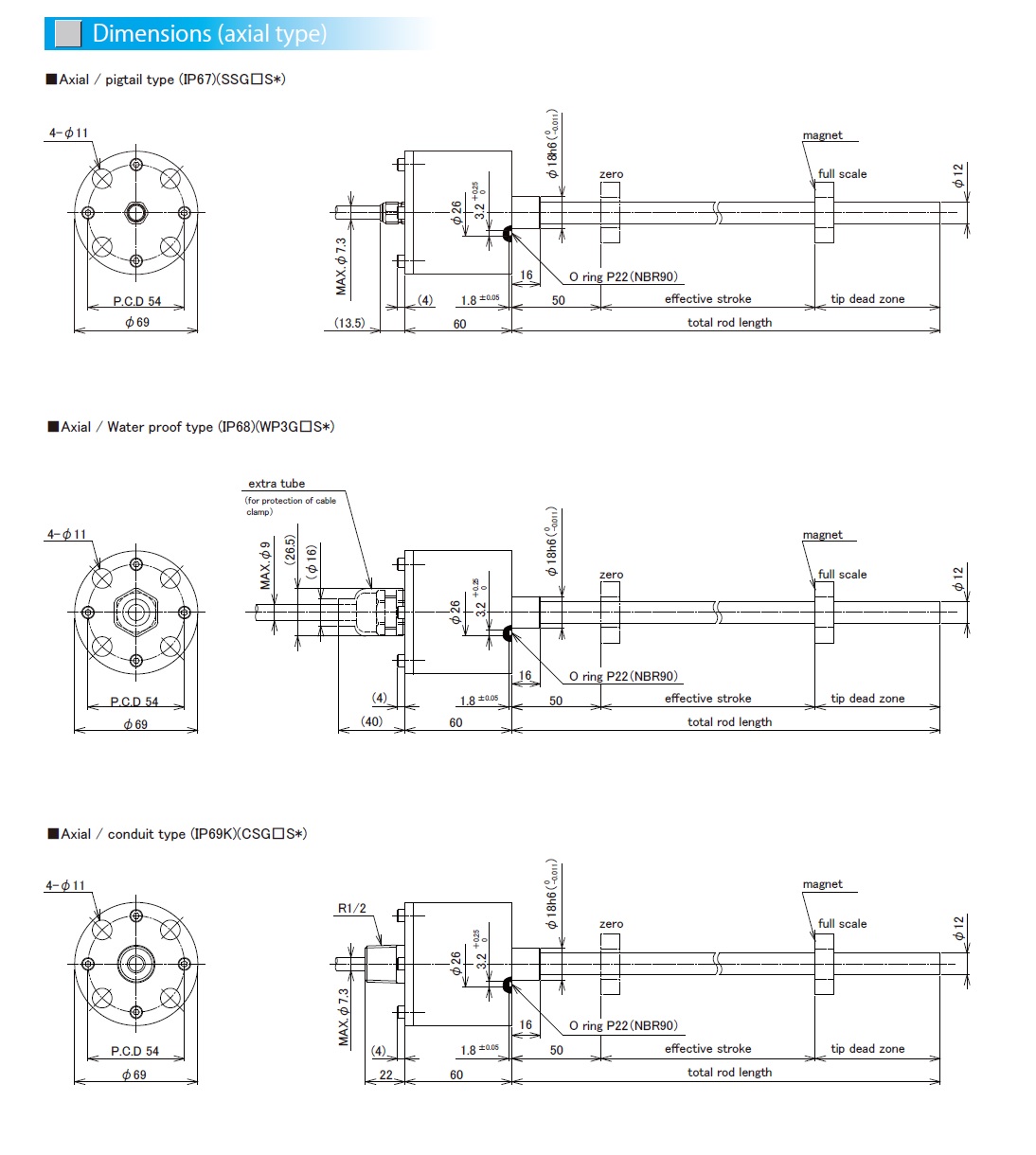

Dimensions (Radial) Dimensions (Axizl) Cable
Zoom ZoomZoom
