GYSE-R Probe.
High accuracy type
(detachable probe element)
GYSE-R Probe.

Between probe and controller, RS-422 differential line driver
transmission, providing robustness against electrical noise, is used.
In combination with a digital output controller, Min.1μm resolution
is possible.
The inside probe element can be detached from the outer housing.

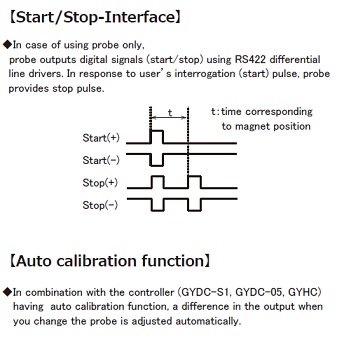

And by auto calibration function, a difference in the output
when you change the probe is adjusted automatically.

◆ Associated controller
　・Analogue output :GYHC(page 52, 53)
　・Digital output:GYDC-S1(page 56, 57), GYDC-05(page 58, 59)
　・IRDS-GY(page 61) : When using the IRDM, you can connect with
　　　CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
　・DC-Q (page 60) : MELSEC-Q built-in unit

( Created on Nov.16.2021 )

Specifications

Non-linearity≦±0.025%FS Typ.
Resolution ( Analogue ) 16bit
( Digital ) Min. 1μm
Repeatablity≦±0.001%FS
Temp. drift≦±20ppmFS /°C
Max. Pressure35MPa ( probe rod )
Operating temp.-20°C〜+75°C
Storage temp.-40°C〜+75°C
Vibration15G ( 20〜100Hz )
Shock100G ( 2msec )
IP gradeIP67

　　・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
　　・The specification of stroke less than 300mm is equal that of stroke 300mm.

　

Model No.

① Effective stroke
　　15〜7500mm

② Head dead zone
　　S :50mm (Std.)
　　□ :□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
　　S:70mm/ 90mm/ 100mm(Std.)
・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZmagnetfloat
70mmM2PN, M0SM, M0LM,
M3, M11N, BA		F25N, F28N
90mmF28S, F30S
100mmT144, T163F40S, F42S, F50S, F54S

　　　□ :□mm ( option ) ( specified by customers )
　　　・Possible Min. length depends on the selected magnet or float.

④ Thread / Rod diameter
　　M :M24xP1.0, rod Φ10(Std.)
　　N :M18xP1.5, rod Φ10
　　U :3/4-16UNF-3A, rod Φ10
　　M8 :M24xP1.0, rod Φ8
　　N8 :M18xP1.5, rod Φ8
　　U8 :3/4-16UNF-3A, rod Φ8
　　M14 :M24xP1.0, rod Φ13.8
　　Z　　:EF ( flexible element ) only ( without outer housing )

⑤ Associated magnet or float

magnetfloat
M2PN :No.2PN (Std.)
M0SM :No.ΦSPM
M0LM :No.ΦLPM
M3 :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3
BA : No.2KYN-17-LG		F28S :Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.

⑥ Cable connection
　　8P :connector
　　△G□F :pigtail / cable end : free
　　△G□A :pigtail / cable end : with connector for relay
　　　　( □ :cable length (m)、Max.10m ) (*)
　　　　( △ :cable type
　　　　　S :standard, H :high temp. cable, R :robot cable, UL :cUL cable)
　 　(*) In case of using extension cable
　　　　　　sensor cable (m) + extension cable (m) ≦ 200m
　　　　　・Please consider extension cable on page 112.

⑦ Output
　　00:depends on external controller

⑧ Option
　blank :without option
　SRT :SRT option

・Please confirm the details of SRT option on page 108.

Dimensions

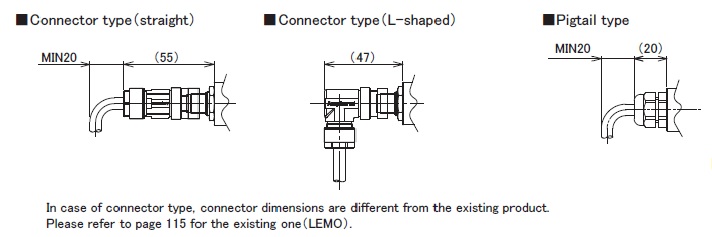

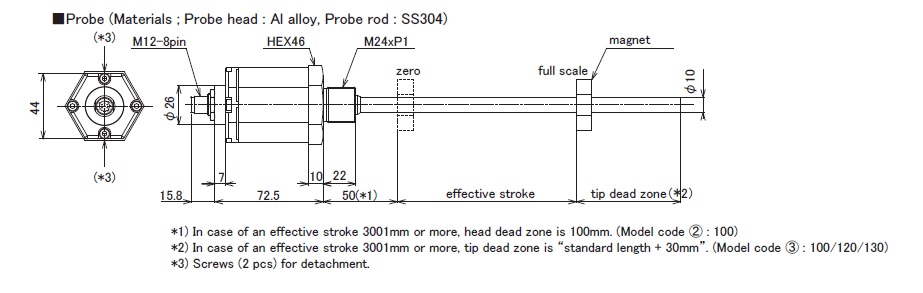

Probe Detachable probe element Connector & Pigtail Cable
Zoom ZoomZoomZoom

　　・materials : Probe head : Al alloy, Probe rod : SS304
　　・magnet : Select one from group GG on page 110
　　・The tip dead zone length depends on the selected magnet or float.
　　・connector : Amphenol (materials : glass fiber reinforced plastic)
　　・Suitable cable diameter : Φ4.0〜Φ7.0, Wire size　: 0.14〜0.82mm2
