High Performance Series

GYMR5 Probe.
High performance pan cake type
GYMR5 Probe.

GYMR5 probe is the pan cake type which put the thickness of
the head part in 36mm.
Applying to hydraulic cylinder, its total length becomes space saving.
Between probe and controller, RS-422 differential line driver
transmission, providing robustness against electrical noise, is used.
In combination with a digital output controller, Min.1μm resolution
is possible.
Please consider GYMR6 in a new inquiry.

◆ Associated controller
 ・Analogue output :GYHC (page 52, 53), GYFC2/3(page 54, 55)
 ・Digital output :GYDC-S1(page 56, 57), GYDC-05(page 58, 59)


( Created on Nov.16.2021 )

Specifications

Non-linearity≦±0.025%FS Typ.
Resolution( Analogue ) 16bit
( Digital ) Min. 1μm
Repeatablity≦±0.001%FS
Temp. drift≦±20ppmFS /°C
Max. Pressure35MPa ( probe rod )
Operating temp.-20°C〜+80°C
Storage temp.-40°C〜+80°C
Vibration6G ( 40Hz 2mmPP )
Shock100G ( 2msec )
IP gradeIP64

 ・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
 ・The specification of stroke less than 300mm is equal that of stroke 300mm.

Model No.

① Effective stroke
  15〜2000mm

② Head dead zone
  S :50mm (Std.)
  □ :□mm ( option ) ( specified by customers )
 ・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
  S:70mm/ 90mm/ 100mm(Std.)
・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZmagnetfloat
70mmM2P, M0SM, M0LM,
M3, M11N
F25N, F28N
90mmF28S, F30S
100mmT144, T163F40S, F42S, F50S, F54S

   □ :□mm ( option ) ( specified by customers )
    ・Possible Min. length depends on the selected magnet or float.

④ Thread / Rod diameter
  K8 :M16xP1.5 rod Φ8 (Std.)
  M :M24xP1.0, rod Φ10
  N :M18xP1.5, rod Φ10

  ・In case of stroke longer than 1000mm, rod Φ10 is recommended.

⑤ Associated magnet or float

magnetfloat
M2PN :No.2P (Std.)
M0SM :No.ΦSPM
M0LM :No.ΦLPM
M3  :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3
F28S :Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.

⑥ Cable connection
  △G□F :pigtail / cable end : free
  △G□A :pigtail / cable end : with connector for relay
  △G□FC :pigtail / cable end : with connector for GYFC2/3
    ( □ :cable length (m)、Max.10m ) (*)
    ( △ :cable type S :standard, R :robot cable )

   (*) In case of using extension cable
      sensor cable (m) + extension cable (m) ≦ 200m
     ・Please consider extension cable on page 112.

⑦ Output
  00:depends on external controller

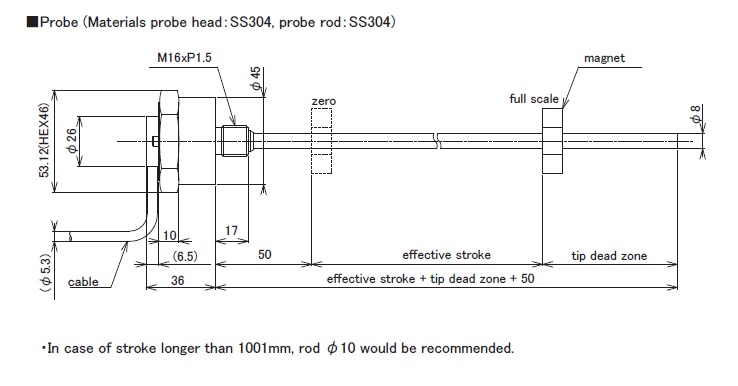

Dimensions

Probe Cable
Zoom Zoom

  ・Materials : Probe head : Al alloy, Probe rod : SS304
  ・Magnet : Select one from group B on page 110
  ・The tip dead zone length depends on the selected magnet or float.
