Model GY Series
WAGO products
WAGO 750-635 is a discontinued product.
For new projects, we recommend the following SANTEST's controllers.
◆ Associated controller
・Analogue output :GYHC(page 52, 53)
・Digital output :GYDC-S1(page 56, 57), GYDC-05(page 58, 59)
・IRDS-GY(page 61) : When using the IRDM, you can connect with
CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT.
・DC-Q (page 60) : MELSEC-Q built-in unit
---------------------------------
WAGO's 750-635 is a module for detecting the magnets on GY probe.
Associating with WAGO's BUS couplers, CC-Link,DeviceNet, ProfibusDP,
CANopen, Modbus and Ethernet are available.
One BUS unit can be assoiated with several pcs of 750-635 module.
Specifications
| probe stroke | Max. 4000mm |
|---|---|
| resolution | 1μm |
| linearity | ≦±0.025%FS TYP |
| repeatability | ≦±0.01%FS |
| temp. drift | ≦±20ppm/°C |
| sampling freq. | 500Hz |
| power supply | 24VDC |
| working temp. | 0°C-+55°C |
| IP Grade | IP20 |
＜750-310 CC-Link BUS coupler＞
No. of 750-635 Max. 8 pcs
occupation points Max. 4
total cable length 100m-200m
baud rate 156k-10M
BUS coupler connection D-Sub 9
(mating connecter 750-965)
①module for GY probe:750-635
associated probe
GYcRS(P.32,33), GYMR5(P.36,37), GYFRS(P.38,39)
GYSE-R(P.30,31), GYKM-RS(P.66-68),
GYSE-R-PF(P.58,59)
②terminal module:750-600
③BUS coupler
CC-Link:750-310
DeviceNet:750-306
ProfibusDP:750-333
Ethernet:750-341

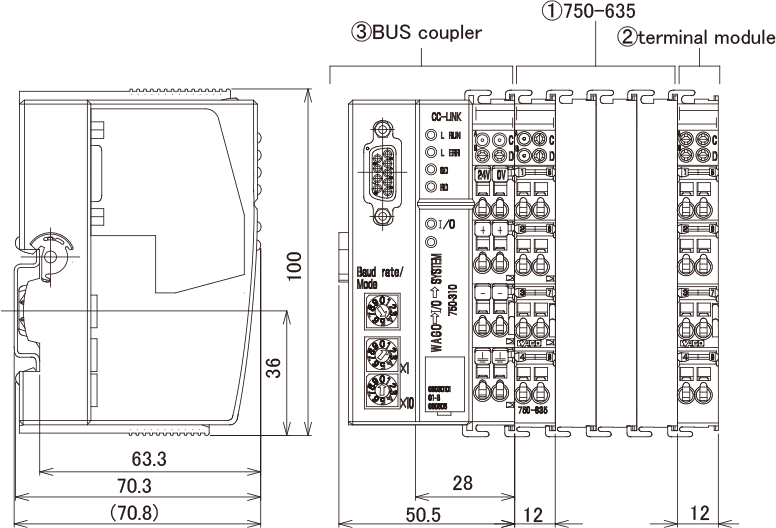

Dimensions
 | ||||||
|
Contact Form
