Compact Series

GYPMR Probe.
Compact head
GYPMR Probe.

GYPMR probe has been developed as the most compact head type.

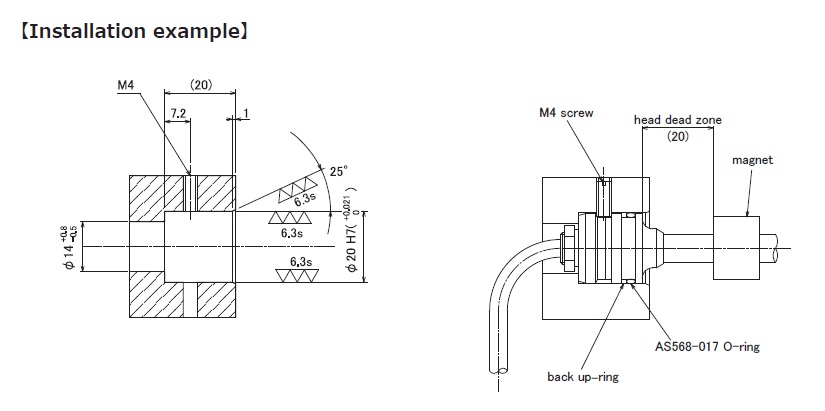

Applying to hydraulic cylinder, its total length becomes space saving.

【 Controller 】
 GYHC : High-precision / high-performance analog output
 GYDC-S1 : Digital output (parallel output), standard type
 GYDC-05 : High-precision / high-performance digital output


( Created on Nov. 11. 2021 )

Specifications

Non-linearity≦±0.05%FS Typ.
Resolution( Analogue) ≦0.01%FS
( Digital ) ≦0.1mm
Repeatablity≦±0.01%FS
Temp. drift≦±45ppmFS
Max. Pressure35MPa ( probe rod )
Operating temp.-20°C〜+80°C
Storage temp.-40°C〜+80°C
Vibration6G ( or 40Hz 2mmPP )
Shock20G ( 2msec )
IP gradeIP67

 ・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
 ・The specification of stroke less than 300mm is equal that of stroke 300mm.

Model No.

① Effective stroke
  15mm〜2000mm


② Head dead zone
  S :20mm (Std.)
  □ :□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.


③ Tip dead zone
  S:70mm (Std.)
・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZmagnet
70mmMG178, M2PN, M11N
100mmT144, T163

□ : □mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.


④ Thread / Rod diameter
  P8 :O-ring, rod Φ8(Std.)


⑤ Associated magnet

magnet
MG178 :No.178 (Std.)
M2PN :No.2P ( ≦stroke 1000mm )
M11N :No.11N ( ≦stroke 1000mm )
T144 :No.T14-M4
T163 :No.T16-M3

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.


⑥ Cable connection
  G□F :pigtail / cable end : free
  G□A :pigtail / cable end : with connector for relay
    ( □:cable length (m), Max.10m ) (*)

(*) In case of using extension cable
sensor cable (m) + extension cable (m) ≦ 100m
・Please consider extension cable on page 112.

⑦ Output
  00 :depends on external controller

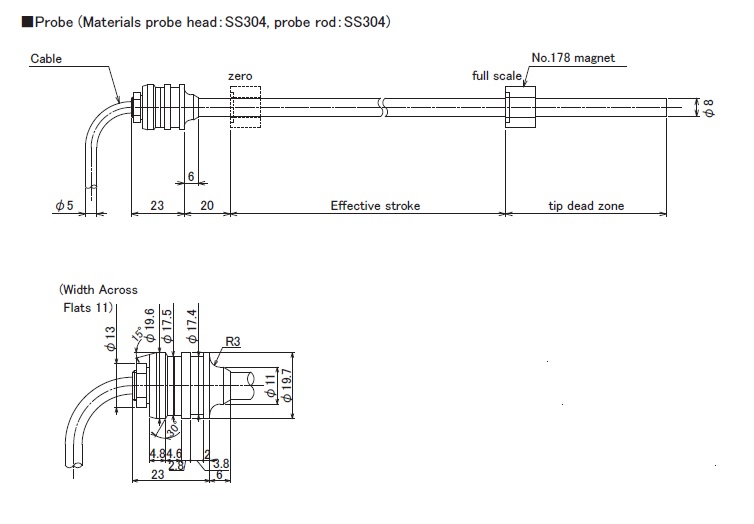

Dimensions

Probe No.178 magnet Cable
Zoom ZoomZoom

・Material probe head :SS304, probe rod :SS304
・For magnet, standard is No.178.
・For others, select one from group GG on page 110.
・The tip dead zone length depends on the selected magnet.
