Compact Series

GYPM Probe.
Dead zone 30mm ( thread side )
GYPM Probe.

The sensor head of GYPM probe is more compact.
By new design of probe head, screw side dead zone has been
shorted to 30mm (standard).
As to tip zone, making short to 40mm is possible by option
(standard : 70mm).

【 Controller 】
 GYHC : High-precision / high-performance analog output
 GYDC-S1 : Digital output (parallel output), standard type
 GYDC-05 : High-precision / high-performance digital output


 ( Created on Nov. 11. 2021 )

Specifications

Non-linearity≦±0.05%FS Typ.
Resolution( Analogue ) ≦0.01%mm
( Digital ) ≦0.01%mm
Repeatability≦±0.01%FS
Temp. drift±45ppmFS / °C
Max. Pressure35MPa ( probe rod )
Operating temp.-5°C〜+60°C
Storage temp.-40°C〜+80°C
Vibration6G ( or 40Hz 2mmPP )
Shock20G ( 2msec )
IP gradeIP64

・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.

◆associated controller
・analogue output :GYHC (page 52, 53)
・digital output :GYDC-S1 (page 56, 57), GYDC-05 (page 58, 59)
・IRDS-GY ( page 61 ) : When using the IRDM, you can connect with
CC-Link, CC-Link IE Field, PROFIBUS, EtherNet/IP, and EtherCAT

Model No.

① Effective stroke
  15〜1000mm

② Head dead zone
  S :30mm (Std.)
  □ :□ mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.


③ Tip dead zone
  S: 70mm/ 90mm/ 100mm (Std.)
・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZmagnetfloat
70mmM2PN, M0SM, M0LM,
M3, M11N
F25N, F28N
90mmF28S, F30S
100mmT144, T163F40S, F42S, F50S, F54S

□ : □mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.


④ Thread / Rod diameter
N8 :M18xP1.5, rod Φ8(Std.)
  K6 :M16xP1.5, rod Φ6


⑤ Associated magnet or float

magnetfloat
M2PN :No.2PN (Std.)
M0SM :No.ΦSPM
M0LM :No.ΦLPM
M3 :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3
F28S:Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.


⑥ Cable connection
  G□F :pigtail / cable end : free
  G□A :pigtail / cable end : with connector for relay
    ( □:cable length (m), Max.10m ) (*)

(*) In case of using extension cable
sensor cable (m) + extension cable (m) ≦ 100m
・Please consider extension cable on page 112.


⑦ Output
  00 :depends on external controller

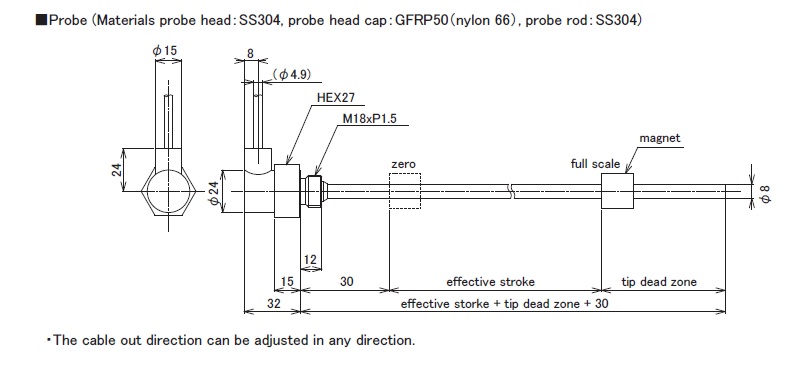

Dimensions

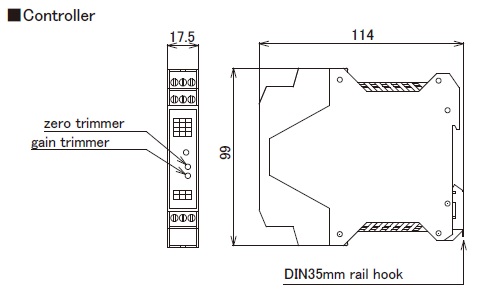

Probe Controller Cable
Zoom ZoomZoom

・Material probe head :SS304・Bs, Probe rod :SS304, Cable gland :Bs
・magnet : Select one from group GG on page 110
・The tip dead zone length depends on the selected magnet or float.
・Cable direction of radial output type is adjustable.
