ST-SP323 Display unit.
Digital panel meter
ST-SP323 Display unit.

・ 5 digits
・ 4〜20mA input
・ Power supply DC24V
・ 4〜20mA output available (option)
・ with alarm output (relay form C x 2)
・ with power supply 24VDC for sensor(150mA)
・ with linearization function


( Created on Feb. 6.2023 )

Specifications

MeasurementA/D conversion Resolution: approx. 1/22000
Measuring interval : approx. 20msec
DisplayRed LED, 5 digit, height :14mm
-9999〜99999
Accuracy±0.1％FS ± 1digit
Linearization21 points (selectable)
Input4〜20mA
AlarmRelay form C×2
AC250V 0.3A or DC30V 2A
4〜20mA output
(option)		4〜20mA (load :Max.500 kΩ)
Accuracy : ±0.1%FS for displayed value
Temp. drift : ±50ppm/°C (0〜50°C)
Response : approx. 1ms
Resolution : 1/55000
Power supply+24VDC±10% (≧20W)
( Inrush current : 800mA ( 1sec ) )
Environmenttemp. 0-50°C, 30-80%RH(no dewing)

　・By option, 8 points of the switch output are available.
　　　In that case, analogue output is not available.
　・By option, power supply AC 100V is available.

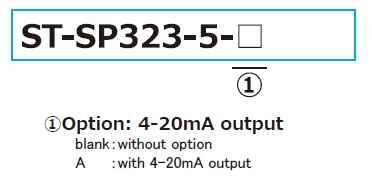

Model No.

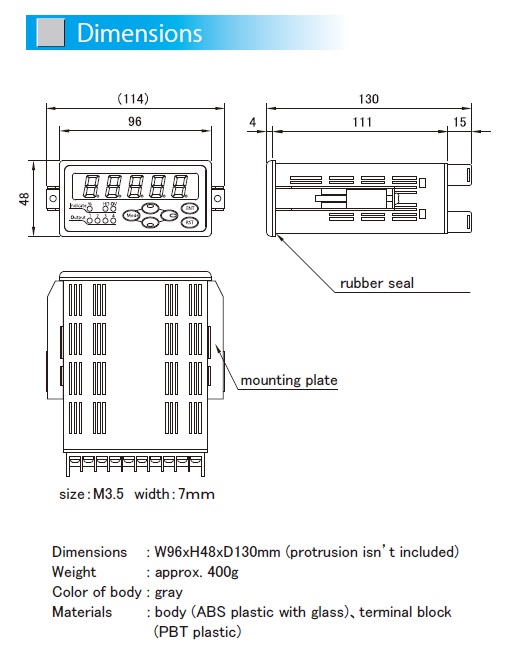

Dimensions

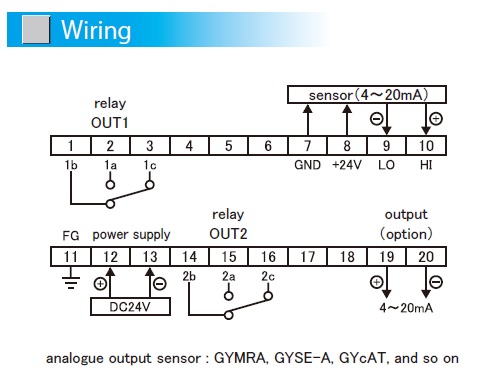

Dimensions Wiring
Zoom Zoom
