Model GY Series
High performance with controller
The GYKM-RS is a discontinued product, but please contact us
for spare parts or repeats.
For new projects, we recommend "GYKMR".
---------------------------------------------------------------------------------------
Profile (GYKM series), having GYcRS circuit inside.
Specifications
| Non-linearity | ≦±0.025%FS TYP |
|---|---|
| Resolution | (analogue) 16bit (with GYHC) (digital) Min.1μm (with GYDC-05) |
| Repeatability | ≦±0.01%FS |
| Temp. drift | ≦±20ppmFS/°C |
| Operating temp. | 0°C-+65°C |
| Storage temp. | -20°C-+65°C |
| Vibration | 3G (or 40Hz 2mmPP) |
| Shock | 10G (2msec) |
| IP grade | IP63-IP65 |
| Cable | Std 1.5m (Option Max.200m) |
・The above mentioned accuracy applies to sensors with an
effective stroke of 300 mm or more.
◆associated controller
analogue output:GYHC (Page.42-43), GYFC2
digital output:GYDC-05 (Page.46-47)
MelsecQ built-in:DC-Q(JCC) (Page.48)
CC-Link:WAGO I/Osystem750-635 (Page.49)
・Fixing clamps are supplied.
stroke < 600mm:4 pcs
600-1000mm:6 pcs
1001-1200mm:8 pcs
1501-2000mm:10 pcs
Model No.
①Effective stroke
15mm-2000mm
②Magnet
R:rod Φ6 (M5 thread)
R2:rod Φ6 (M5 thread)
R88:rod Φ8 (M8 thread)
R85:rod Φ8 (M5 thread)
U:Slide magnet
T:Floating magnet (gap 1mm)
TS:Floating magnet (gap 4mm)
TW:Floating magnet (gap 8mm)
U-FX65:Slide magnet
+flexible rod Φ6 (M5 thread)
U2-FX88:Slide magnet
+flexible rod Φ8(M8 thread)
③Position Output
00:depends on external controller

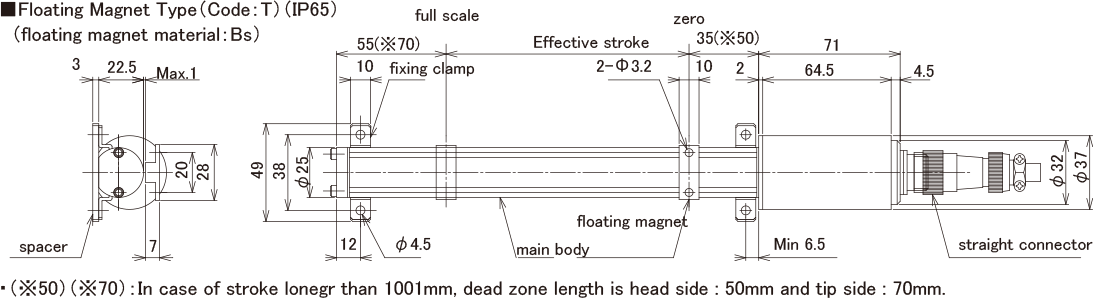

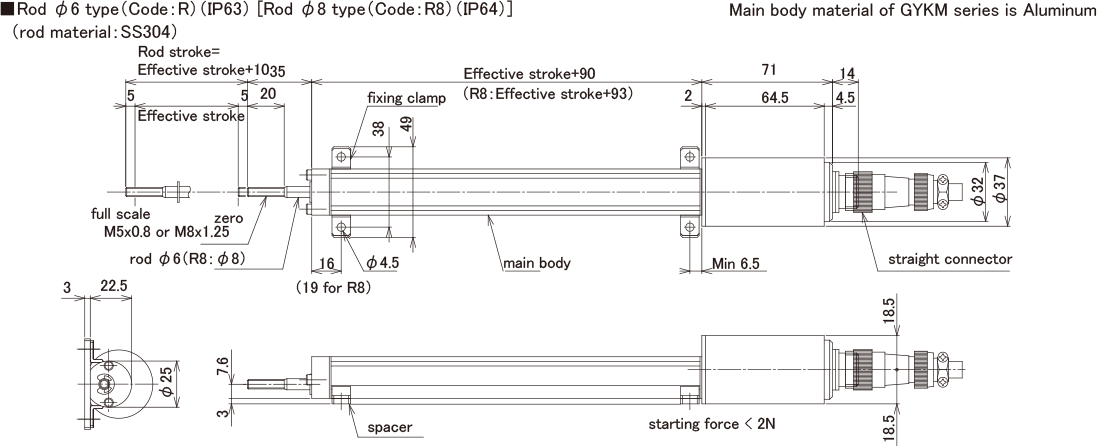

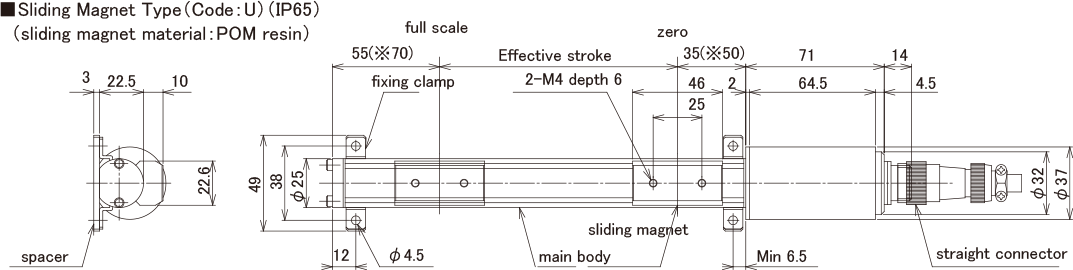

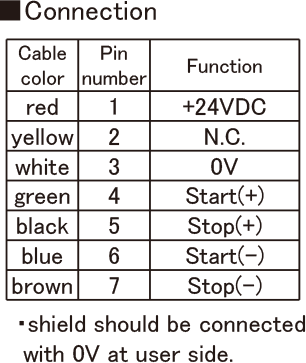

Dimensions
 |  |  |  | |||
|
| | |
Contact Form
