Model GY Series
Digital Controller with LED Display
The GKS-01 is a discontinued product.
For new projects, we recommend "SP323-5" or "MA10/4".
------------------------------------------------------------------------------------------------------
The GKS-01 is a digital controller with 6 digit LED display, which
can be directly connected to GY probes (GYcRS, GYMR5, GYFRS,
GYKM-RS).
The GKS-01 series are available with serial output (standard) or
parallel output (optional).
The magnet or float position may be displayed in 0.1mm unit or scaled to read in other units (%, inch, etc.).
Alarm point outputs (open collector), up to 10 points, are also
available.
Specifications
| Display | 6 digit, 7 segment 15mm high, red LEDs display range:999999-99999 (decimal point selectable) |
|---|---|
| Scaling | ％、inch、etc. (User programmable) |
| Applicable probe | GYcRS, GYMR5, GYFRS, GYKM-RS[Note] |
| Power supply | +12V-+24VDC ±10% 4W max. |
| Preset point | 1 |
| Serial output | RS232C or RS485 (Standard) |
| Parallel output | BCD/Binary/Gray (User selectable) (Option) |
| Sampling frequency | 30-100Hz (depending on point output condition) |
| Alarm point output | Open colletor 30V 20mA max., 10 points |
| Operating Temp | 0°C-45°C |
| Storage Temp | -20°C-+70°C |
| Humidity | 20-90%RH(Non-condensing) |
| Weight | GKS-01-SN･･･330 grams approx. GKS-01-SP･･･380 grams approx. |
Model No.
SN:Serial output only (Standard)
SP:with Parallel output (Option)
mating connector supplied
[Note]
GYcRS, GYMR5, GYFRS, GYKM-RS probes are designed to be used with the GKS-01.

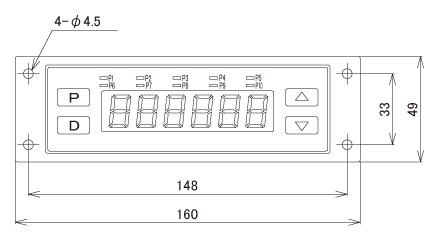

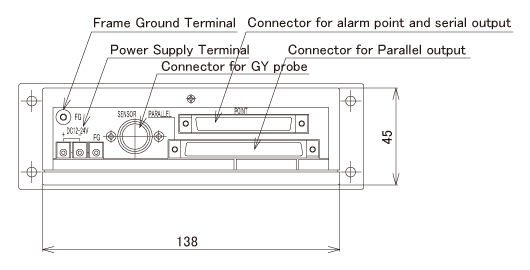

Dimensions
 |  |  | ||||
|
| |
Case Material:ABS (Glassfiber reinforced)
