The DP-50-D is a discontinued product.
For new projects, we recommend "SP323-5" or "MA10/4".
------------------------------------------------------------------------------------------------------
The DP-50-D is a 4-20mA input, 5 digit LED display panel meter.
Input signal may be displayed as current or scaled to read in other units (inch, %, etc).
Four realy outputs can be independently set by the user.
The DP-50-D and DP-101-D can be used with the analogue output probes
(GYSE, GYcAT, GYLT) or analogue controller for applications such as liquid
level monitoring and control.
| Display | 5 digit, 7 segment, 14mm high, red LEDs Display range:-19999-19999 Accuracy:±(0.05% of reading + 1 count) Decimal point:User selectable |
|---|---|
| Display | %, inch, etc. (User programmable) |
| Input | 4-20mA |
| Power supply | +24(18-36)VCD 4.2W |
| Alarm output (Replay output) | 4 points 5 Amp form A x 2 10 Amp form C x 2 Conversions per sec :3 Hysteresis and time delays programmable |
| A/D converter | 16bit |
| Operating Temp | 0°C-+60°C |
| Storage Temp | -20°C-+70°C |
| Humidty | 20-95%RH (Non-condensing) |

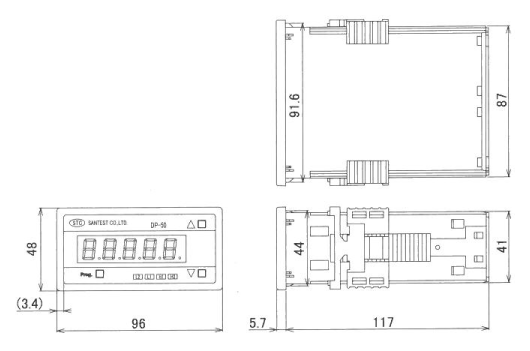

| Case dimensions | 1/8DIN(96W x 48H x 117D) |
| weight | 0.5kg approx. |

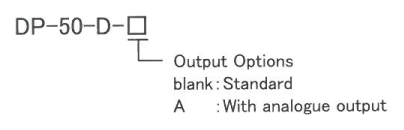

| DP-50-D | ||||||
|---|---|---|---|---|---|---|
 | ||||||
|
