SSPC-03 Converter.
SSI → Parallel signal converter
SSPC-03 Converter.

SSPC-03 converts SSI (Synchronous Serial Interface) which is often
used as a serial data transmission method to parallel data.
It's possible to change SSI bit length and the SSI clock frequency by
a DIP switch.
It's possible to choose N channel output or P channel output.


( Created on Nov.25.2021 )

Specifications

SSI bit lengthProgrammable 17〜32 bit
Clock frequency125k/ 250k/ 500k/ 1MHz
Parallel outputFET open drain output
(N channel or P channel)
Power supplyFor SSPC :+24VDC±5%(≦35mA)
For Output :+12-24VDC±5%(≦15mA)
Operating temp. 0°C〜+60°C
Storage temp.-20°C〜+75°C

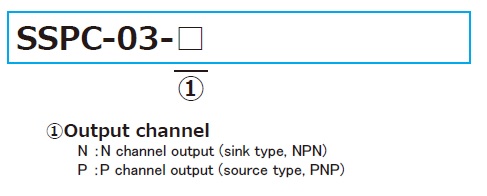

Model No.

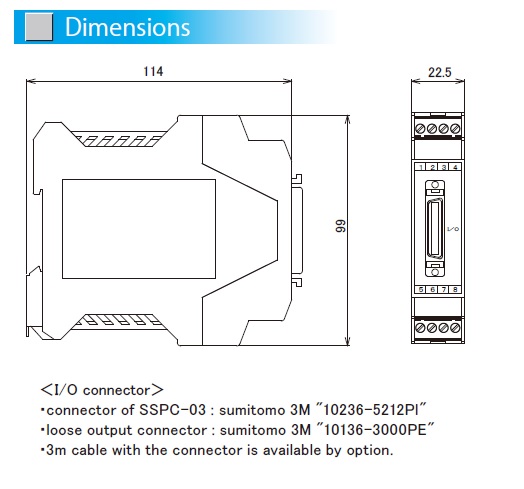

Dimensions
