Linear Profile Series

GYSE-EP2-PF probe
EtherNet/IP interface
　（detachable probe element）
GYSE-EP2-PF probe

GYSE-EP2-PF of profile type is EtherNet/IP output type sensor.
It is an adapter device that outputs displacement/velocity of magnets via EtherNet/IP.
The position/velocity of up to 20 sensing magnets can be detected with a sensor.
The sensor element can be detached from the housing and replaced.

Specifications

Non-linearity ≦±0.025%FS Typ.
ResolutionPosition: Min. 1um
　　　(at multi-magnet: Min. 10μm)
Velocity: Resolution 1μm/sec
　　　(at velocity 1mm/sec or higher)
Set by "Configuration Assembly" at the start of communication.
Repeatability ≦±0.001%FS (≦Min.±3μm)
Temp. drift ≦±15ppmFS/°C
OutputEtherNet/IP
Power supply+24VDC(±5％)(110mA)
Sampling freq. (*) 1kHz (≦1300mm)
500Hz (≦2400mm)
250Hz (≧2401mm)
Operating temp. -20°C-+75°C
Storage temp. -40°C-+90°C
Vibration15G(10-100Hz)
Shock100G(2msec)
IP grade IP67

　・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
　・The specification of stroke less than 300mm is equal that of stroke 300mm.
　(*) In case of multi magnets on one probe, sampling frequency is not standard value.
・Fixing clamps are supplied. (One clamp is added every 500mm.)
　stroke < 600mm:2 pcs
　　　　　　　600-1000mm:3 pcs
　　　　　　　1001-1500mm:4 pcs
　　　　　　　1501-2000mm:5 pcs

Model No.

① Effective stroke
　　15〜7500mm

② Head dead zone
　　50:50mm(Std.)
　　□:□mm (specified by customers)
　　・Possible Min. length depends on the selected magnet.

③ Tip dead zone
　　70:70mm(Std.)
　　□:□mm (option)(specified by customers)
　　・Possible Min. length depends on the selected magnet.

④ Associated magnet
　　PFU:PFU slide magnet
　　FE :No.5N-UK
　　BP : No.5PFT-LG
　　M11N: No.11N
　　M11S: No.11S
　　・Please consult our factory in case of requesting special magnet.
　　・This model code means only specifying associated magnet.
　　・Ordering magnet individually.

⑤ Cable connection
　　CN: connector

⑥ Clamp
　　F50: With clamp
　　N: without clamp
　　・The number of clamps is determined by the stroke.
　　・If you need more clamps, please specify separately.
　　・Please refer to page 118 for the drawing of clamps.

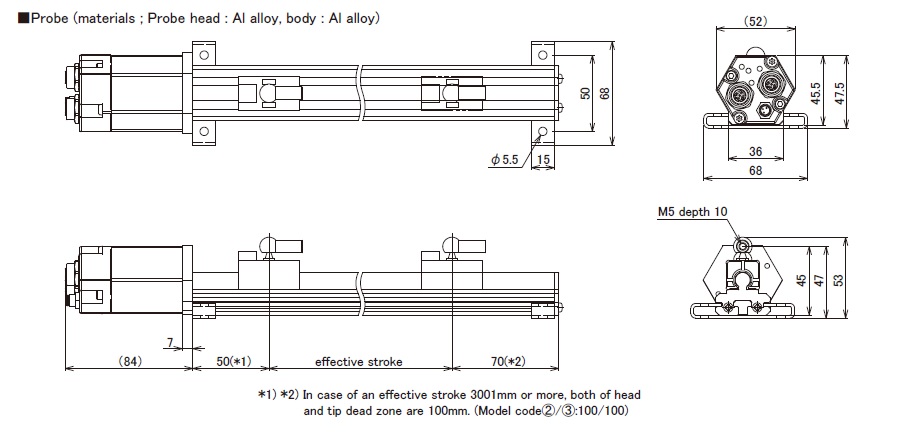

Dimensions

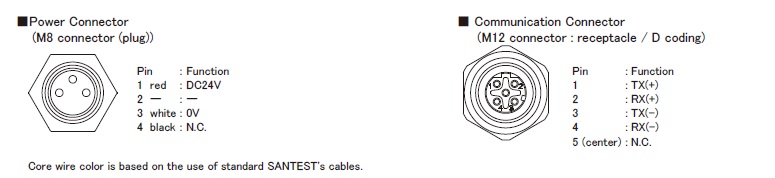

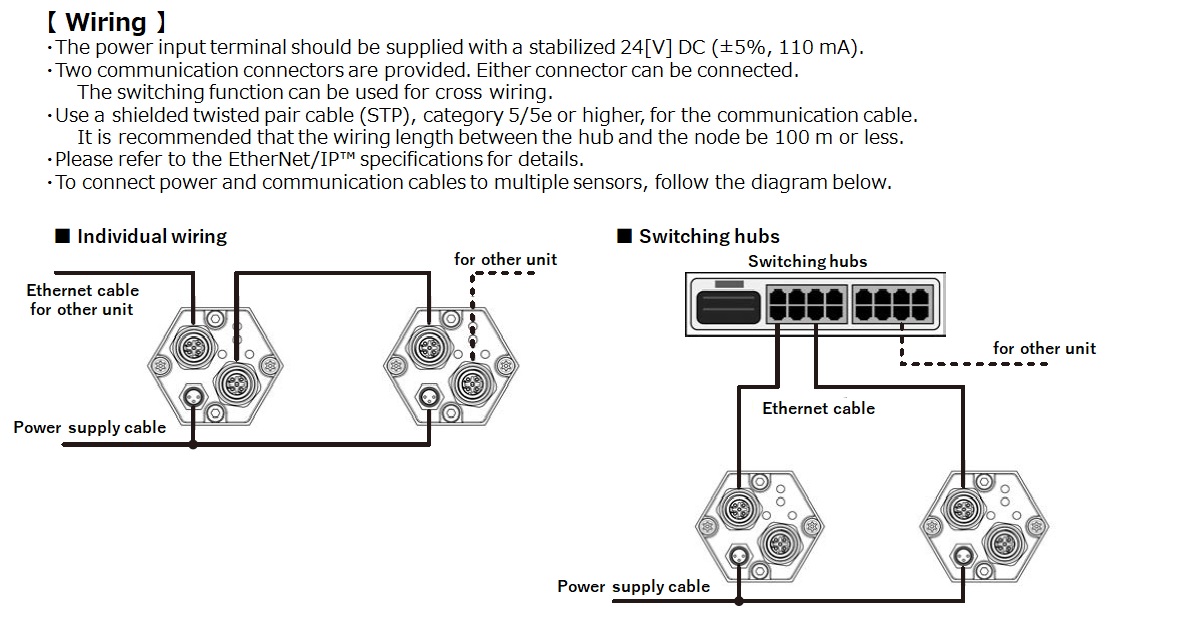

Probe Connector Wiring
