Linear Profile Series

GYMRA-PF Probe.
Flat head type, analogue output
(detachable probe element)
GYMRA-PF Probe.

This is the linear profile version of GYMRA.
The output is voltage or current.
The inside probe element can be detached from the outer housing,
and with the captive software (GPM), zero and gain adjustment is
possible at user side.

 ・ Noise cancellation
 ・ GPM setting


( Created on Nov.17.2021 )

Specifications

Non-linearity≦±0.025%FS Typ.
Resolution≦ 0.1mm
Repeatability≦±0.1mm
Temp. drift≦±20ppmFS /°C
Voltage output0〜10V or 10〜0V
( output current : Max. 5mA, load: Min. 2kΩ )
Current output4〜20mA or 20〜4mA
( load : Max.500Ω )
Alarm Open drain 50V 0.1A ( for magnet missing )
Power supply+24(±2)VDC (60mA)
Sampling freq.Std. 1kHz ( up to stroke 1000mm )
Operating temp.-20°C〜+75°C
Storage temp.-40°C〜+75°C
Vibration15G ( 20〜100Hz )
Shock15G ( 20〜100Hz )
IP gradeIP65

 ・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
 ・The specification of stroke less than 300mm is equal that of stroke 300mm.

 ・Fixing clamps are supplied. ( One clamp is added every 500mm. )
   stroke  < 600mm:2 pcs
       600-1000mm:3 pcs
       1001-1500mm:4 pcs
       1501-2000mm:5 pcs

Model No.

① Effective stroke
  15〜7500mm

② Head dead zone
  S :50mm(Std,)
  □ :□mm (option) (specified by customers)
  ・Possible Min. length depends on the selected magnet.

③ Tip dead zone
  S :70mm(Std.)
  □:□mm (option) (specified by customers)
  ・Possible Min. length depends on the selected magnet.

④ Associated magnet
   PFU :PFU slide magnet
   FE :No.5N-UK
   BP :No.5PFT-LG

⑤ Cable connection
  △G□F:pigtail / cable end : free
  △G□A:pigtail / cable end : with connector for relay
    (□:cable length(m), Max.10m)(*)
    (△:cable type
       S:standard, H:high temp. cable, R:robot cable, UL : cUL cable)

   (*) In case of using extension cable
    Voltage output : sensor cable (m) + extension cable (m) ≦ 10m
    Current output : sensor cable (m) + extension cable (m) ≦ 100m
    ・Please consider extension cable on page 113.

⑥ Position output(OUT1)
  AD :0〜10V(When magnet moves toward tip, output increase)
  AR :10〜0V(When magnet moves toward tip, output decrease)
  BD :4〜20mA(When magnet moves toward tip, output increase)
  BR :20〜4mA(When magnet moves toward tip, output decrease)
  V Z/F :option (specified voltage)
        (for example V1/5:1〜5V, V9.5/0.5:9.5〜0.5V)
  I Z/F :option (specified current)
        (for example I5.2/20:5.2〜20mA, I18/5:18〜5mA)

   【Z=output at zero position, F=output at full position】

⑦ Clamp
   F50 :with fixing clamps
   N :without fixing clamps

Dimensions

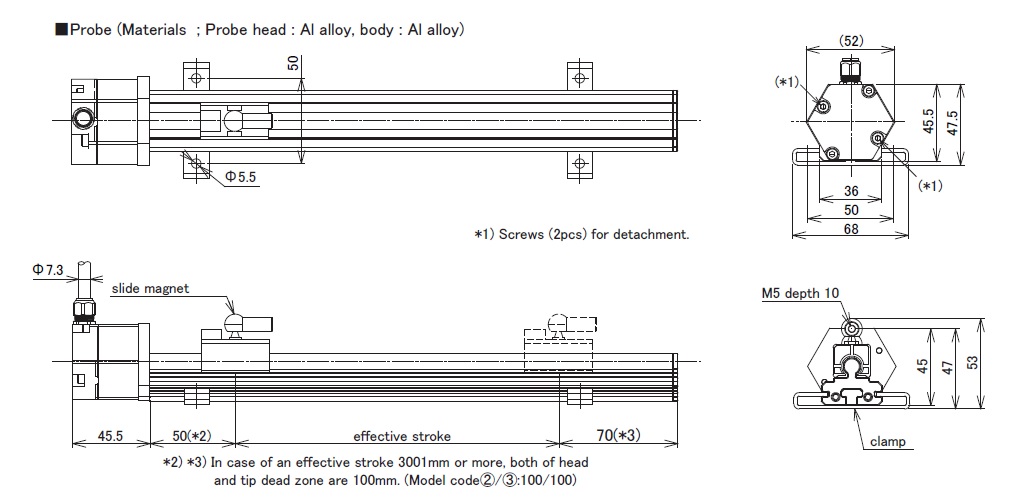

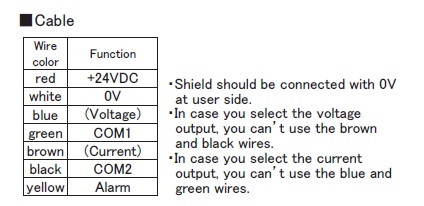

Probe Magnet Detachable probe element Cable
Zoom ZoomZoomZoom

 ・materials  ; Probe head : Al alloy, body : Al alloy
 ・cable length  ; Max.10m (0〜10V output), Max.100m (4〜20mA output)
