Linear Profile Series

GYKS2 Probe
Compact・Analogue output type
（All-in-one）
GYKS2 Probe

GYKS2 is the all-in-one series of GYKM.
The length of the body became short compared with conventional
GYKS in the rod type.
GYKS2 is replacement model of GYKM-LS/LT.
You can get a voltage or current analog signal proportional to magnet
position only by applying a 24VDC power supply directly to GYKS2.
It has alarm output and is equipped with noise cancellation functions.
It gives infinite life time due to magnetostrictive non-contact sensor,
well replacing conventional potentiometers.
And with the captive software (GPM), zero and gain adjustment is
possible at user side.


　・ CE marking
　・ Noise cancellation
　・ GPM setting



　( Created on Feb. 8. 2023 )

Specifications

Non-linearity≦±0.025%FS Typ.
Resolution≦0.01%FS
Repeatability≦±0.01%FS
Temp. drift≦±50ppmFS /°C
Voltage output0〜10V or 10〜0V
( output current : Max. 5mA, load: Min. 2kΩ )
Current output4〜20mA or 20〜4mA
( load : Max.500Ω )
Power supply+24(±2)VDC ( less than 100mA )
Sampling freq.Std. 1kHz ( Total body length : 1300mm )
Operating temp.0°C〜+65°C
Storage temp.-20°C〜+65°C
Vibration3G ( or 40Hz 1mmPP)
Shock10G ( 2msec )
IP gradeIP53, IP64, IP65

　・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
　・The specification of stroke less than 300mm is equal that of stroke 300mm.

　・Mounting brackets (fixing clamps) are supplied.
　　　stroke　　 < 600mm　 :4 pcs (2 pcs)
　　　　　　　 600-1000mm :6 pcs (3 pcs)
　　　　　　　1001-1500mm :8 pcs (4 pcs)
　　　　　　　1501-2000mm :10 pcs (5 pcs)
　　　　　　　2001-2500mm :12 pcs (6 pcs)

　・When replacing GYKM-LS/LT, a spacer for height adjustment is prepared.
　　When you need it, please order separately.

Model No.

① Effective stroke
　　15mm-2000mm(rod type)
　　15mm-500mm(both end universal joint types)
　　15mm-2500mm(U, TS, TW type)

② Magnet
　　R :rod Φ6 (M5 thread)(Standard)
　　R2 :rod Φ6 (M5 thread)
　　R88 :rod Φ8 (M8 thread)
　　R85 :rod Φ8 (M5 thread)
　　RW88 :Both end Universal Joint Type(rod Φ8)
　　U :Slide magnet
　　T :Floating magnet (gap 1mm)
　　TS :Floating magnet (gap 4mm)
　　TW :Floating magnet (gap 8mm)
　　U-FX65 :Slide magnet
　　　　　　　　+ rod Φ6 (M5 thread) with linkball joint
　　U-FX88 :Slide magnet
　　　　　　　　+ rod Φ8 (M8 thread) with linkball joint


③　Cable connection
　　CN:　connector
　　・When ordering the connector with cable, please refer to Page 121.
　　・Connector (M12-4pin) : Omron XS2C-D4S1 (straight type) or
　　　　　　　　　　　　　　　D4S2 (L type) (Material : PBT plastic)
　　・Please confirm extension cable on page 120〜122.


④ Position output
　　AD :0〜10V(When magnet moves toward tip, output increase)
　　AR :10〜0V(When magnet moves toward tip, output decrease)
　　BD :4〜20mA(When magnet moves toward tip, output increase)
　　BR :20〜4mA(When magnet moves toward tip, output decrease)
　　・Bipolar output (±10V) is not available.


⑤ Dead zone
　　or shapes other than rod type
　　・Stroke of 1001 mm or more: Connector side dead zone is 150 mm.
　　・Strokes of 2001 mm or more: Tip side dead zone is 70mm or 80mm (standard length + 15mm).

　　In this case, the dead zone is indicated in actual dimensions (mm).
　　　S/S: Standard
　　　150/S: 1001mm〜
　　　150/70: 2001mm〜 (Magnet models: U, T, U-FX65, U-FX88)
　　　150/80: 2001mm〜 (Magnet model: TS, TW)


⑥ Clamp
　　K38 : with mounting brackets
　　F50 : with fixing clamps
　　N : without mounting brackets and fixing clamps
　　・The number of pieces included is determined by the stroke.
　　　If you need more than that, please specify separately.
　　・Please refer to page 118 for clamp drawings.

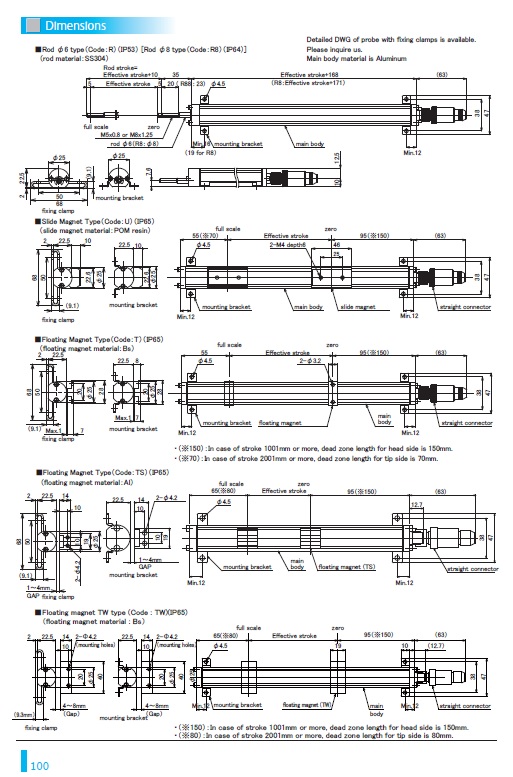

Dimensions

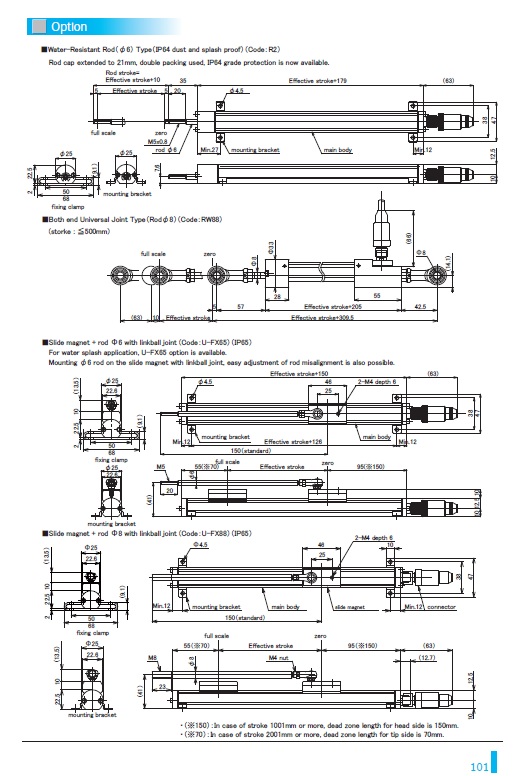

Dimensions Dimension (Option) Cable
Zoom ZoomZoom
