Heavy Duty Type

GYRHP-MRA Probe.
Pressure resistance rod : 70MPa, heavy duty type
(Alli-in-one, analogue output)
GYRHP-MRA Probe.

GYRHP-MRA, which is different from conventional GY series, achieved
pressure-resistant 70MPa (rod) by redesign in head and rod part.
Standard of protection grade is IP67, but you can select water-proof
type (IP68) or cable conduit type (IP69K) by option.
It is all-in-one and its output is voltage or current.
With the captive software (GPM), zero and gain adjustment is
possible at the user.


　・ Noise cancellation

　・ GPM setting



　( Created on Feb. 8. 2023 )

Specifications

Non-linearity≦±0.025%FS (Typ.)
Resolution≦0.1mm
Repeatability≦±0.1mm
Temp. drift≦±20ppmFS / °C
Voltage output0〜10V or 10〜0V
( output current :Max.5mA, load :Min.2kΩ )
Current output4〜20mA or 20〜4mA
( load :Max.500Ω )
Alarm outputOpen drain 50V　0.1A ( for magnet missing )
Power supply+24(±2)VDC ( 60mA )
Sampling freq.Std. 1kHz ( Total rod length : 1300mm )
Max. Pressure70MPa ( probe rod )
Operating temp.-20°C〜+75°C
Storage temp.-40°C〜+75°C
Vibration20G (10〜100Hz)
Shock100G (2msec) / 800G (option)
IP gradeIP67(Std.), IP68 / IP69K (option)

　　・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
　　・The specification of stroke less than 300mm is equal that of stroke 300mm.

Model No.

① Effective stroke
　　15〜1000mm


② Head dead zone
　　50 :50mm (Std.)
　　□ :□mm (specified by customers)
　　・Possible Min. length depends on the selected magnet.


③ Tip dead zone
　　70 : 70mm (in case ⑤ is BA)
　　100 : 100mm (in case ⑤ is T163)
　　□ : □mm (specified by customers)


④ Mount / Rod diameter
　　F12 : pressure-resistant flange, rod Φ12 (Std.)


⑤ Associated magnet
　　BA : No.2KYN-17-LG (Std.)
　　T163 : No.T16-M3
　　・Please consult if you select a magnet of other than above.
　　・This Model code means only specifying associated magnet, please order separately.


⑥ Cable connection
　　○△G□◇F :pigtail / cable end : free (Std.)
　　○△G□◇A :pigtail / cable end : with connector for relay
　　WP3G□◇F :pigtail of water proof cable / cable end : free
　　WP3G□◇A :pigtail pf water proof cable / cable end : with connector for relay

　　　○:pigtail type (S : standard, C : cable conduit)
　　　△:cable type (S : standard, H : high temp. cable, R : robot cable, UL : cUL cable)
　　　□:cable length (m)　Max.10m(*)
　　　◇:head shape type (L : radial, S : axial)

　　(*) In case of using extension cable,
　　　voltage output : sensor cable (m) + extension cable (m) ≦ 10m
　　　current output : sensor cable (m) + extension cable (m) ≦ 100m


⑦ Position output
　　AD :0〜10V(When magnet moves toward tip, output increase)
　　AR :10〜0V(When magnet moves toward tip, output decrease)
　　BD :4〜20mA(When magnet moves toward tip, output increase)
　　BR :20〜4mA(When magnet moves toward tip, output decrease)
　　V Z/F :option (specified voltage) (for example V1/5 : 1〜5V)
　　I Z/F :option (specified current) (for example I5.2/20 : 5.2〜20mA)
　　　　【 Z=output at zero position, F=output at full position (tip side) 】

⑧ Option
　　blank :without option
　　SRT :SRT option (Please confirm the SRT option on page 114.)


① Probe
　　PMRA :GYRHP-MRA

② Cable type
　　S : Standard cable
　　H : High temp. cable
　　R : Robot cable
　　W : Water proof cable
　　UL : cUL cable

③ Cable length (m)

④ Cable end (sensor side)
　　F : free
　　S : with straight connector

⑤ Cable end (controller side)
　　F : free
　　A : with connector for relay

Dimensions

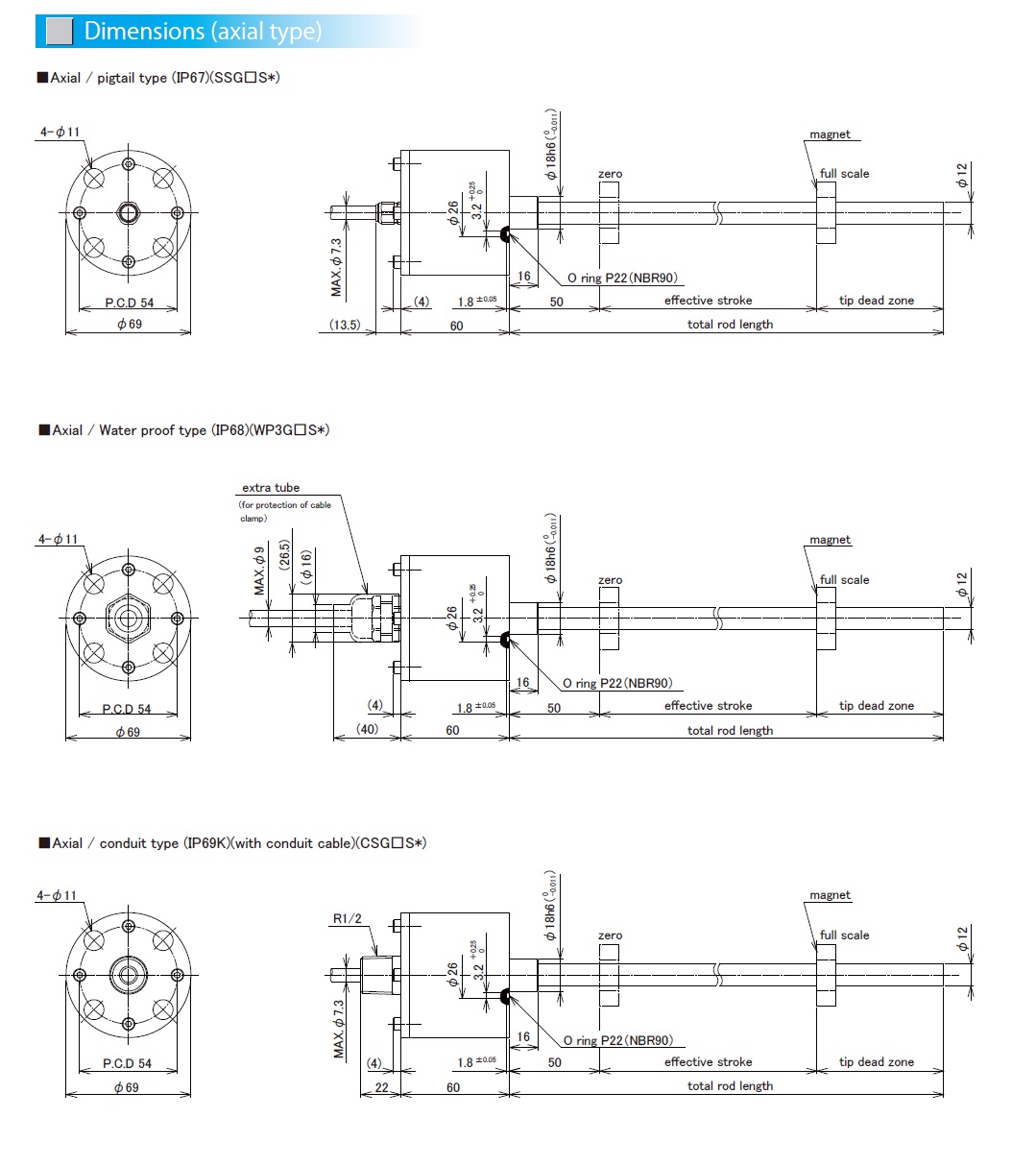

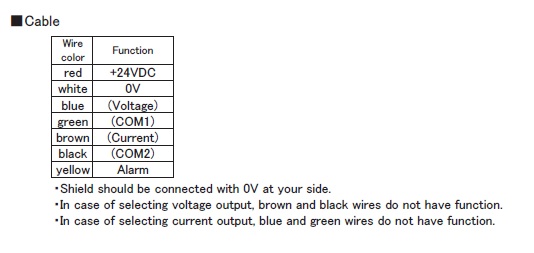

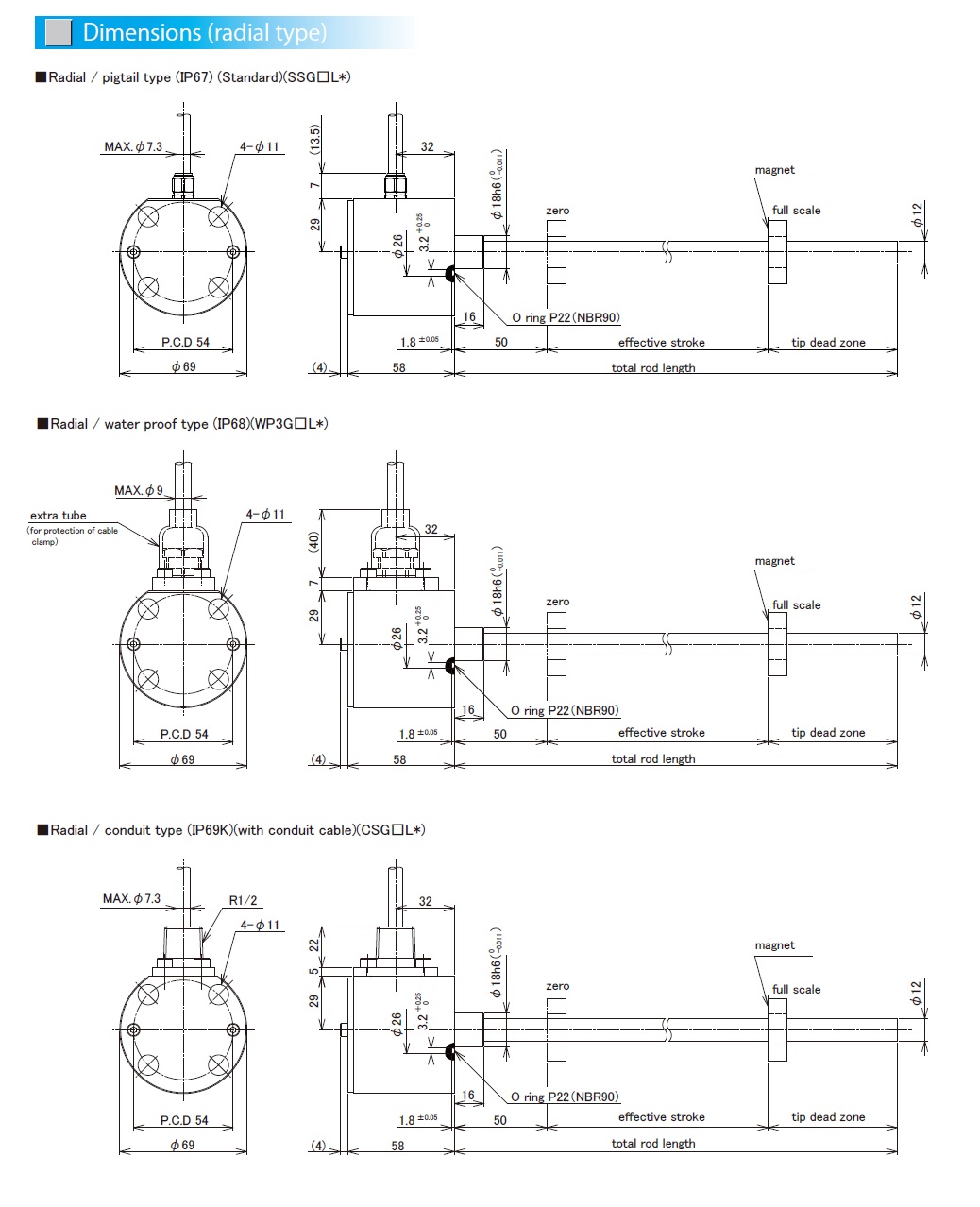

Dimensions (Radial type) Dimensions ( Axial type) Cable
Zoom ZoomZoom
