Model GY Series

GYMT Probe / GYMTC Controller.

【Discon.】Compact type

The GYMT probe / GYMTS controller is a discontinued product,
but please contact us for spare parts or repeats.

For new projects, we recommend "GYMS".

----------------------------------------------------------------------------------------

The GYMT series, the compact probe and controller in the GY series, have an extremely simplified and carefully selected electronics in a small place. By employing COMBICON screw plug connectors of Phoenix Contact in the GYMTC controller, wiring operation becomes easier and more reliable. The GYMTC controller provides 0-10V voltage output or 4-20mA current output, indicating the position of the movable magnet along the GYMT probe rod. The power supply of GYMTC is ±15VDC.

Specifications

Non-linearity	≦±0.05%FS TYP
Resolution	≦0.01%FS
Repeatability	≦±0.01%FS
Temp. drift	≦±50ppmFS/°C (probe) ≦±80ppmFS/°C (controller)
Voltage output	0-10V or 10-0V (output current:Max.5mA, load:Min.2kΩ)
Current output	4-20mA or 20-4mA (load:Max.500Ω)
Alarm output	not available
Power supply	±15VDC (±5%)
Sampling freq.	Std 1kHz (up to stroke 1000mm)
Max. Pressure	35MPa (probe rod)
Operating temp.	-5°C-+60°C (probe) 0°C-+60°C (controller)
Storage temp.	-40°C-+80°C
Vibration	6G (or 40Hz 2mmPP)
Shock	50G (2msec)
IP grade	IP67 (probe)
Cable	Std 1.5m (Option Max.10m)

*The above mentioned accuracy applies to sensors with an effective
stroke of 300mm or more.
*Zero/Gain adjustment by trimmer of controller are possible, std within ±3%FS.

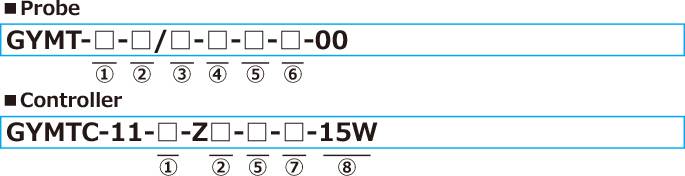

Model No.

①Effective stroke
　　15mm-2000mm

②Thread dead zone
　　S:50mm (STD)
　　□:□mm(option)(specified by customers)

③Tip dead zone
　　S:70mm/90mm/100mm(STD)
　　・S (STD length) depends on the selected magnet or float in ⑤.

tip DZ	magnet	float
70mm	M2P, M0, M11	F25N, F28N
90mm		F28S, F30S
100mm	T142, T162	F40S, F42S, F50S

□:□mm(option)(specified by customers)

④Thread/Rod diameter
　　J8 :M20xP1.0, rod Φ8(STD)
　　L8 :M16xP2.0, rod Φ8
　　E8 :M20xP1.5, rod Φ8
　　N　　:M18xP1.5, rod Φ10
　　U　　:3/4-16UNF-3A, rod Φ10
　　K6 :M16xP1.5, rod Φ6

⑤Associated magnet or float

magnet	float
M2P :No.2P (STD) MG0 :No.Φ M11 :No.11 T142 :No.T14-M2 T162 :No.T16-M2 MG□ :other magnet	F28S :Φ28 SS316 F30S :Φ30 SS316L F40S :Φ40 SS316(B) F42S :Φ42.5 SS316 F50S :Φ50 SS316 F54S :Φ54 SS304 F25N :RF-A10 plastic F28N :RF-A6 plastic FL□ :other float

⑥Cable connection
　　G□F:pigtail / cable end : free
　　G□A:pigtail / cable end : with connector for relay
　　　　　(□:cable length(m))
　　CN:connector(option)
　・Please use the cable as specified on order.
　・The cable extend and cut needs the readjustment in the factory.
　・The terminal stand and the connector etc. can be used to connect cable.
　・For ordering extend cable, please see page 77.

⑦Position output
　　AD:0-10V(When magnet moves toward tip, output increase)
　　AR:10-0V(When magnet moves toward tip, output decrease)
　　BD:4-20mA(When magnet moves toward tip, output increase)
　　BR:20-4mA(When magnet moves toward tip, output decrease)
　　CD□□:bipolar output(-□V-+□V)
　　　　　　(for example CD10:-10V-+10V)
　　CR□□:bipolar output(+□V--□V)
　　　　　　(for example CR05:+5V--5V)

⑧Power supply
　　15W:±15VDC(STD)
　　　　＋15V±5%　(≦100mA)
　　　　－15V±5%　(≦50mA)
　　24S:＋24VDC(option for retrofit)
　　12S:＋12VDC(option)
　　・In case of selecting 24S, we would recommed
　　GYMS/GYMSC series(P18,P19).

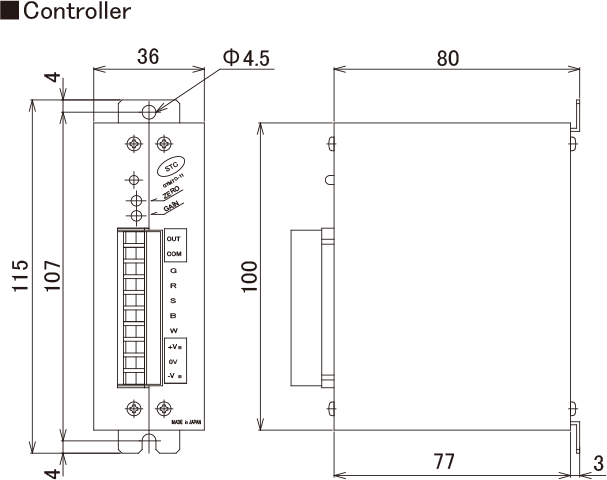

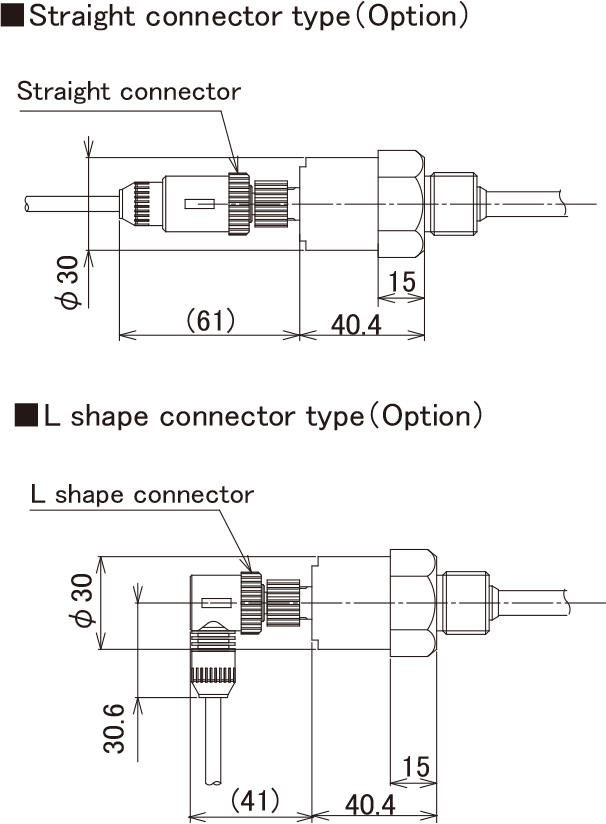

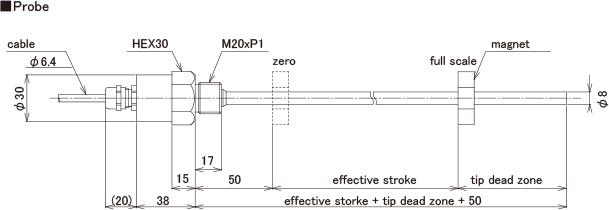

Dimensions
