Model GY Series

GYMRA Probe.
Flat head type, analogue output (detachable probe element)
GYMRA Probe.

GYMRA probe is the flat head type, analog output sensor
which put the thickness of the head part of a GYSE-A probe
in 48.5mm by the latest circuit design.
The output is voltage or current.
With the captive software (GPM), zero and gain adjustment
is possible at the user.

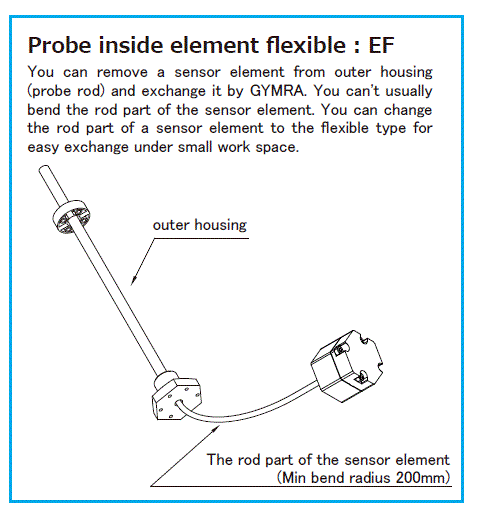

The sensor inside element flexible option is available and
also most suitable for the exchange when space is small.

 ・ Noise cancellation
 ・ GPM setting


( Created on Oct. 26. 2021 )

Specifications

Non-linearity≦±0.025%FS TPY
Resolution≦0.1mm
Repeatability≦±0.1mm
Temp. output≦±20ppmFS/°C
Voltage output0〜10V or 10〜0V (output current:Max.5mA, load:Min.2kΩ)
Current output4〜20mA or 20〜4mA (load:Max.500Ω)
Alarm outputOpen drain 50V 0.1A (for magnet missing)
Power supply+24(±2)VDC (60mA)
Sampling freg.Std. 1kHz (up to stroke 1000mm)
Max. Pressure35MPa (probe rod)
Operation temp.-20°C〜+75°C
Storage temp.-40°C〜+75°C
Vibration15G (20〜100Hz)
Shock100G (2msec)
IP gradeIP67

・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.

Model No.

① Effective stroke
  15〜7500mm


② Head dead zone
  S:50mm(Std.)
  □:□mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.


③ Tip dead zone
  S:70mm/90mm/100mm(Std.)
  ・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZ magnet float
70mmM2PN, M0SM, M0LM,
M3, M11N, BA
F25N, F28N
90mmF28S, F30S
100mmT144, T163F40S, F42S, F50S, F54S
  □:□mm(option)(specified by customers)


④ Thread/Rod diameter
  M :M24xP1.0, rod Φ10(STD)
  N :M18xP1.5, rod Φ10
  U :3/4-16UNF-3A, rod Φ10
  M8 :M24xP1.0, rod Φ8
  N8 :M18xP1.5, rod Φ8
  U8 :3/4-16UNF-3A, rod Φ8
  M14 :M24xP1.0, rod Φ13.8
  Z :EF (flexible element) only (without outer housing)

⑤ Associated magnet or float

magnet float
M2PN :No.2PN(Std.)
M0SM :No.ΦSPM
M0LM :No.ΦLPM
M3 :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3
BA :No.2KYN-17-LG
F28S :Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.

⑥ Cable connection
  △G□F:pigtail / cable end : free
  △G□A:pigtail / cable end : with connector for relay
    (□:cable length(m)、Max.10m)(*)
    (△:cable type
       S:standard, H:high temp. cable, R:robot cable, UL : cUL cable)

  (*) In case of using extension cable
   Voltage output : sensor cable (m) + extension cable (m) ≦ 10m
   Current output : sensor cable (m) + extension cable (m) ≦ 100m
  ・Please consider extension cable on page 113.

⑦ Position output(OUT1)
  AD :0〜10V(When magnet moves toward tip, output increase)
  AR :10〜0V(When magnet moves toward tip, output decrease)
  BD :4〜20mA(When magnet moves toward tip, output increase)
  BR :20〜4mA(When magnet moves toward tip, output decrease)
  V Z/F :option (specified voltage)
        (for example V1/5:1〜5V, V9.5/0.5:9.5〜0.5V)
  I Z/F :option (specified current)
        (for example I5.2/20:5.2〜20mA, I18/5:18〜5mA)
【Z=output at zero position, F=output at full position】

⑧ Option
  blank : without option
  SRT : SRT option
  H0 : probe rod 100°C
  EF : flexible element (rod Φ10 only)

 ・Please confirm the details of options on page 106〜108.
 ・Without EF option (standard), GYMRA probe element is detachable
  though the rod parts is rigid. With EF option, as to accuracy or other
  specs, please consult factory.

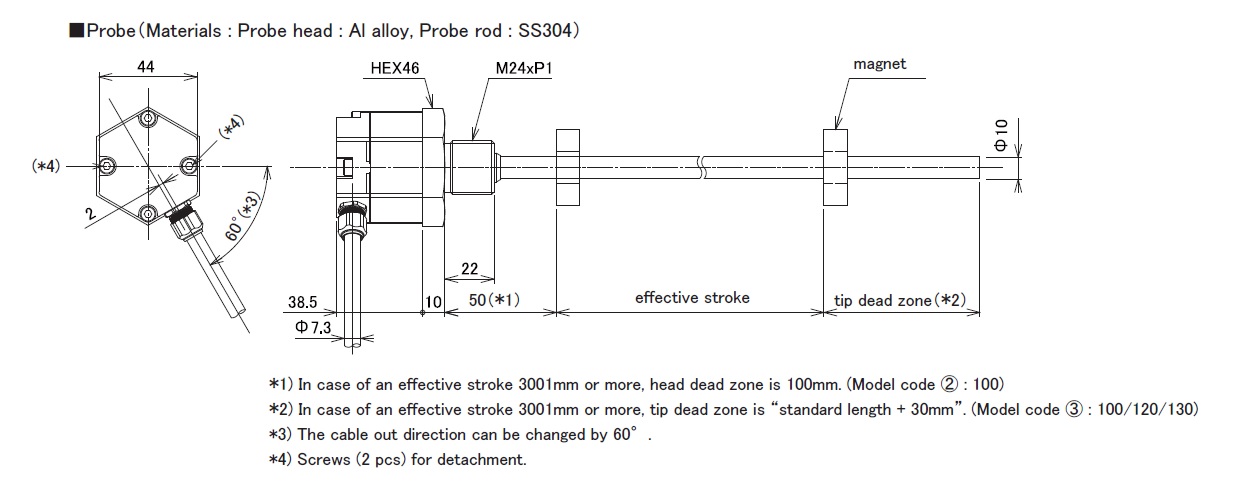

Dimensions

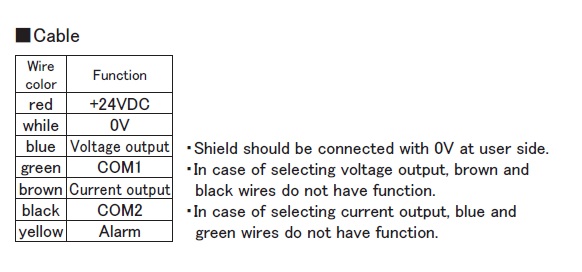

Probe Detachable probe element Cable
Zoom ZoomZoom

・Materials : Probe head : Al alloy, Probe rod : SS304
・Magnet : Select one from group GG on page 110
・The tip dead zone length depends on the selected magnet or float.
・Cable length : Max.10m (0〜10V output), Max.100m (4〜20mA output)
