Model GY Series
Specifications
| Non-linearity | ≦±0.025%FS TYP |
|---|---|
| Resolution | ≦0.1mm |
| Repeatability | ≦±0.1mm |
| Temp. drift | ≦±0.03%FS/°C |
| Voltage output | not available |
| Current output | 4〜20mA or 20〜4mA(load:Max.500Ω) |
| Alarm output | not available |
| Power supply | +24(±2)VDC(100mA) |
| Sampling freq. | Std. 1kHz(up to stroke 1000mm) |
| Max. Pressure | 35MPa(probe rod) |
| Operating temp. | -20°C〜+80°C |
| Storage temp. | -40°C〜+80°C |
| Vibration | 6G (or 40Hz 2mmPP) |
| Shock | 50G(2mse) |
| IP grade | IP67 |
・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.
Model No.
① Effective stroke
15〜3000mm
② Head dead zone
S:50mm(Std.)
□:□mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.
③ Tip dead zone
S:70mm／90mm／100mm(Std.)
□:□mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.
| tip DZ | magnet | float |
|---|---|---|
| 70mm | M2PN,M0SM,M0LM, M3,M11N,BA | F25N,F28N |
| 90mm | F28S,F30S | |
| 100mm | T144,T163 | F40S,F42S,F50S,F54S |
④ Thread / Rod diameter
J8 :M20xP1.0, rod Φ8(STD)
L8 :M16xP2.0, rod Φ8
E8 :M20xP1.5, rod Φ8
N :M18xP1.5, rod Φ10
U :3/4-16UNF-3A, rod Φ10
K6 :M16xP1.5, rod Φ6
・In case of an effective stroke 1001mm or more, the rod Φ10 should be used.
| magnet | float |
|---|---|
| M2PN :No.2PN M0SM :No.ΦSPM M0LM :No.ΦLPM M3 :No.3 M11N :No.11N T144 :No.T14-M4 T163 :No.T16-M3 BA :No.2KYN-17-LG | F28S :Φ28 SUS316 F30S :Φ30 SUS316L F40S :Φ40 SUS316(B) F42S :Φ43 SUS316 F50S :Φ50 SUS316L F54S :Φ54 SUS304 F25N :RF-A10 plastic F28N :RF-A6 plastic |
・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.
・In case of an effective stroke 2001mm or more, "No.2KYN-17-LG"
magnet (page 110) would be recommended.
⑥ Cable connection
G□F :pigtail / cable end : free
G□A :pigtail / cable end : with connector for relay
(□:cable length(m)、Max.10m)(＊)
CN :connector
(*) In case of using extension cable
Current output : sensor cable (m) + extension cable (m) ≦ 100m
・Please consider extension cable on page 113.
・In case that you need loose mating connector, ordering connector
(straight or L-shaped) separately is necessary.
⑦ Position output(OUT1)
BD :4〜20mA(When magnet moves toward tip, output increase)
BR :20〜4mA(When magnet moves toward tip, output decrease)
Dimensions
| Probe | Straight connector type | L shape connector type | Cable | |||
|---|---|---|---|---|---|---|
 |  |  |  | |||
|
| | |

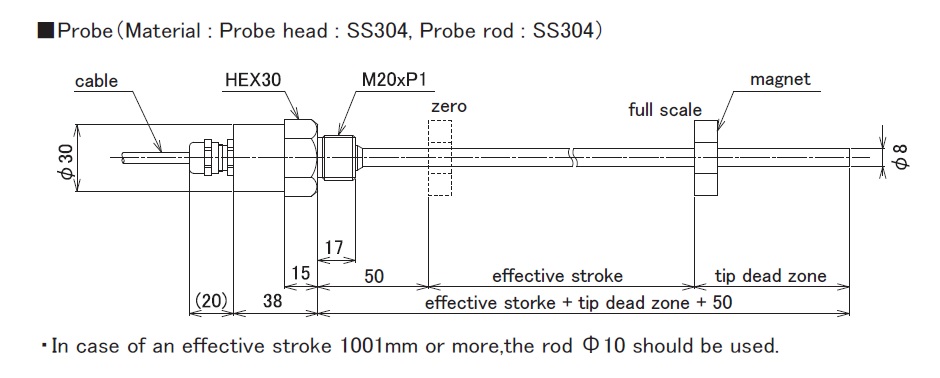

・Material : Probe head : SS304, Probe rod : SS304
・Magnet : Select one from group GG on page 110
・The tip dead zone length depends on the selected magnet or float.

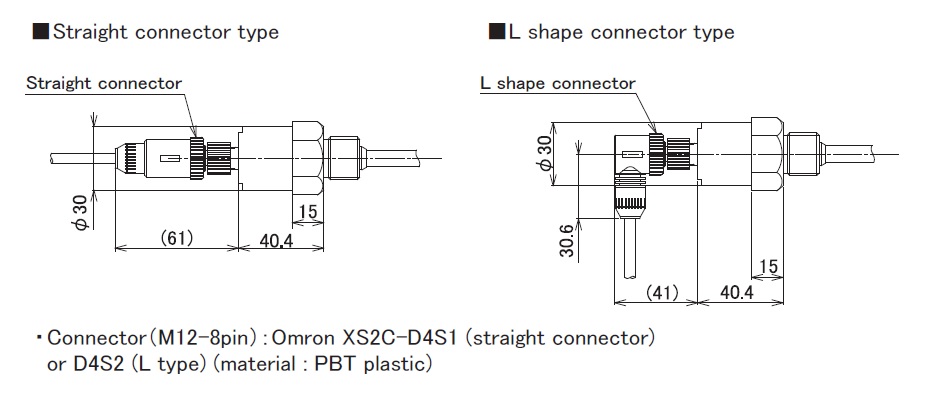

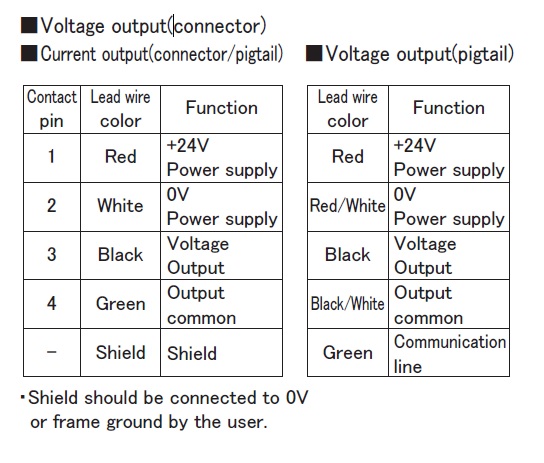

・Connector : Omron XS2C-D4S1 (straight connector) or D4S2 (L type) (material : PBT plastic)

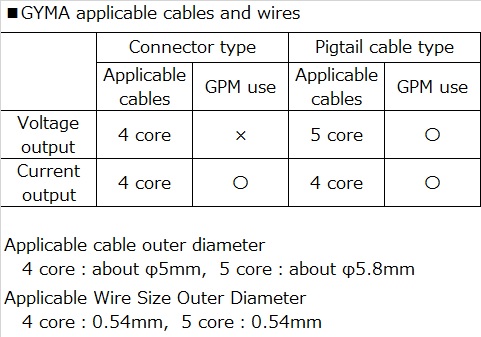

・Suitable cable diameter : Φ5-Φ6, Wire size : 0.18〜0.75mm2
・cable length : Max. 100m
