Model GY Series

GYCL-201

【Discon.】
　CC-Link Certified Controller

GYCL-201 is a discontinued product, but please contact us
for spare parts or replacements.
For new projects, we recommend "IRDM-CCL + IRDS-GY" or
"IRDM-CFN + IRDS-GY".

---------------------------------------------------------------------------------------
GYCL-201 controller combined with the GYcRP probe is a digital
signal conditioner.
This controller has ASIC special for CC-Link and it is used as a remote
device station of the CC-Link system.
The positional data of high accuracy can be transmitted at high speed
by a simple program.
The setting is possible according to the sensor, and it has the
upper/lower detecting function.

Specifications

Resolution	1mm, 0.1mm, 0.05mm
Effective stroke	Max.3000mm
Frequency resp.	Std 1kHz (depending on stroke) sampling
Occupied stations	3
Transmission rate	156k/625k/2.5M/5M/10M
Power supply	24VDC (18-30VDC)
Consumption	0.2A (24V supply)
Weight	0.6kg
Operating Temp	0°C-60°C
Storage Temp	-20°C-75°C
Vibration	2G
Shock	50G

Model No.

(1):Effective stroke
15-3000mm
(2):Resolution
D1:1mm
D2:0.1mm
D3:0.05mm
(3):Measuring method
1M:1 magnet system
2M:2 magnet system
(a distance between two points)
(4):Auxiliary Power Supply
blank:nil
X:with

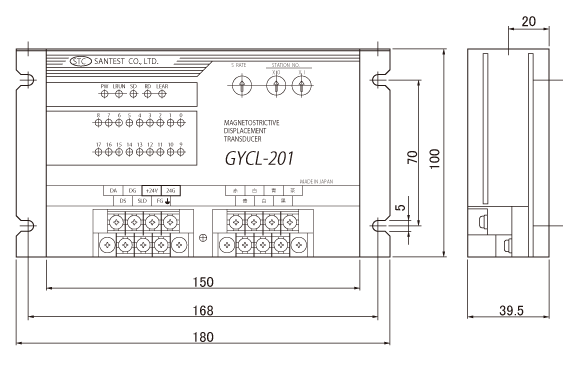

Dimensions

[Reference:WAGO-I/O-System]
WAGO Co. (Germany) product WAGO750-635 is a module that can be connected with GYcRS, GYMR5,
and GYFRS probes and measures the position of the magnet set on the sensor in high accuracy. It is
possible to use various bus couplers of WAGO-I/O-SYSTEM and develop various fieldbuses such as
DeviceNet, PROFIBUS, CC-Link, and CANopen. Moreover, the combination of multiple modules with one
bus coupler is available or max 4 magnets can be measured on one sonsor probe. Please inquire us for a
detailed catalog.
