Explosion-proof Type

IGY3 Series.
Intrinsic safety structure
IGY3 Series.

It's the displacement sensor of intrinsic safety type based upon
international standards which can be used at zone 0.
(Class 0 hazardous area).
Class A grounding (first class grounding) isn't necessary adopting
a power transformer and photo coupler isolation system.
Possible to 100°C rod by option.


Form official approval pass symbol : No.TC14815 (Sep, 2000)


　( Created on Feb. 7. 2023 )

Specifications

Non-linearity≦±0.05%FS Typ.
Resolution≦±0.03％FS
Repeatability≦±0.03%FS
Temp. drift≦±0.02%FS /°C (Probe)
≦±30ppmFS /°C (Controller)
≦±50ppmFS /°C (P/A converter)
Power supply90〜110VAC 50/60Hz ≦3W (Controller)
+24(±2)VDC 0.1A (P/A converter)
Max. Pressure35MPa (probe rod)
Operating temp.-5°C〜+60°C (Probe) (Std.)
-5°C〜+100°C (Probe)(Option)
0°C〜+60°C (Contoroller)
0°C〜+60°C (P/A converter)
Storage temp.-40°C〜+80°C
Vibration6G (or 40Hz 2mmPP)
Shock50G (2msec)
IP gradeProbe : IP65
Controller : IP20
P/A converter : IP20
Explosion-proof symbolExdⅡ CT4

　・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
　　The specification of stroke less than 300mm is equal that of stroke 300mm.

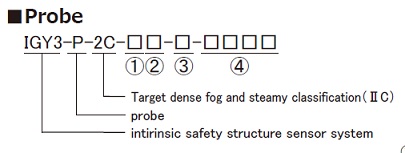

Model No.

① Probe rod Operating temp.
　　S :-5〜+60°C(Std.)
　　H :-5〜+100°C(option)

② Thread
　　M :M24xP1.0(Std.)
　　N :M18xP1.5
　　U :3/4-16UNF

③ Rod diameter
　　1 :Φ10(Std.)
　　3 :Φ13.8
　　8 :Φ8

④ Effective stroke
　　50〜1500mm
　*Max. length depends on using magnet or float.


* Associated magnet or float

magnetfloat
T142, T162,
BE, BF		F28S, F30S, F40S
F42S, F50F, F54S

　　・Please consult our factory in case of requesting special magnet or float.
　　・This model code means only specifying associated magnet or float.
　　・Ordering magnet or float individually.

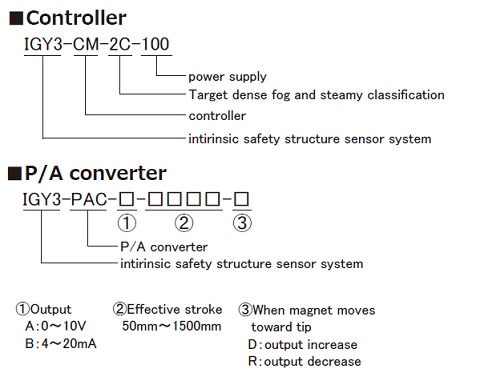

① Output
　A:0〜10V
　B:4〜20mA

② Effective stroke
　50mm〜1500mm

③ When magnet moves toward tip
　D:output increase
　R:output decrease

Dimensions

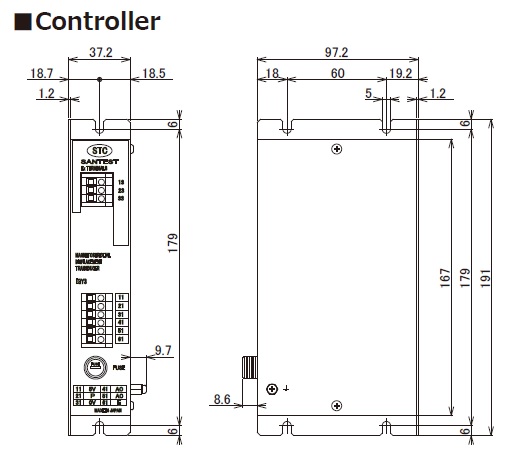

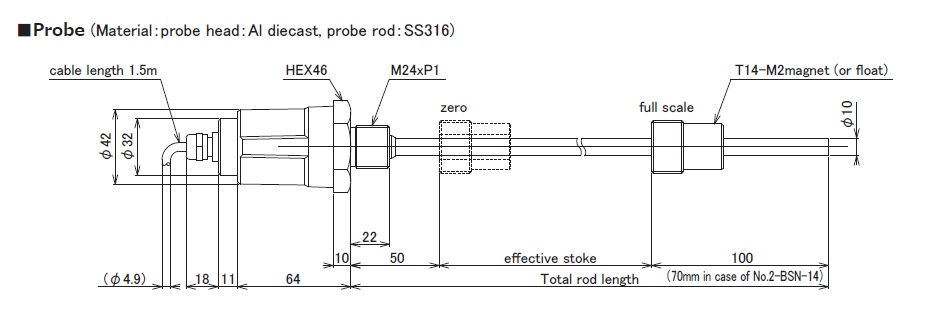

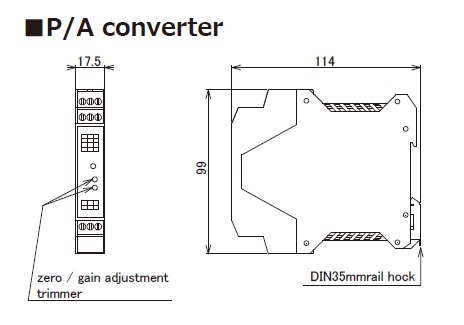

Probe & Magnet Controller P/A converter Construction
Zoom ZoomZoomZoom

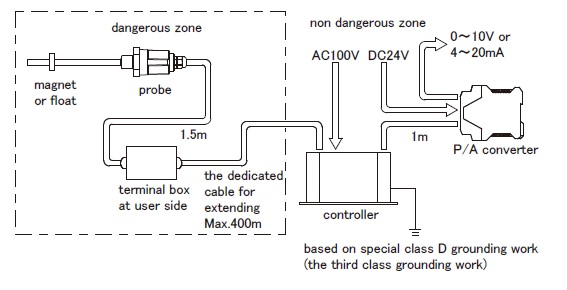

・IGY3 series consist of a probe, a controller, a P/A converter, a magnet (or a float),
　cable between probe and controller, and 1m cable between controller and P/A converter.
　　(Plastic magnet or float can't be used by law. )

・Probe has 1.5m cable with it. In case of extending cable,
　It is possible to extend max. 400m by using the dedicated cable (2 core with shield).
　 (Please connect extend cable with 1.5m cable of probe in terminal box.)

・Probe and magnet (or float) should be installed in dangerous zone, and controller
　and P/A converter should be installed in non dangerous zone.
