GYSE-Q Probe.
Quasi-incremental output (detachable probe element)
GYSE-Q Probe.

GYSE-Q probe has the incremental output (A/B pulse),
the resolution is Min.1μm (Quad divide).

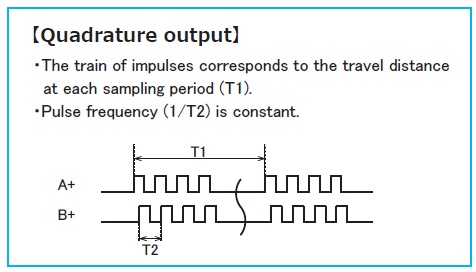

The working principle is based on a sampling detection method,
in which pulse frequency is fixed to 250kHz or 500kHz (it depends
on resolution).
GYSE-Q doesn't output the pulse which continued like a linear
encoder, so please be careful.
The inside probe element can be detached from the outer
housing, and with the captive software (GPM), zero and gain
adjustment is possible at user side.

 ・ CE marking
 ・ Noise cancellation
 ・ GPM setting

( Created on Nov. 8. 2021 )

Specifications

Non-linearty≦±0.025%FS (Typ.)
Resolution0.1mm〜0.001mm specified
Repeatablity≦±0.001%FS (Min. ±3μm)
Temp. drift≦±15ppmFS / °C
Position
(Std.)
A/B pulse, without Z pulse
Line driver、 pulse freq. 250kHz
Velocity
(Option)
not available
AlarmOpen drain 50V 0.1A (for lost magnet)
Power supply+24( ±2 )VDC ( 100mA )
Sampling freq.Std. 1kHz ( up to stroke 1000mm )
Max. Pressure35MPa ( probe rod )
Operating temp.-20°C〜+75°C
Storage temp.-40°C〜+75°C
Vibration15G ( 20〜100Hz )
Shocks100G ( 2msec )
IP gradeIP 67

 ・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
 ・The specification of stroke less than 300mm is equal that of stroke 300mm.

Model No.

① Effective stroke
  15〜7500mm

② Head dead zone
  S:50mm ( Std. )
  □:□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
  S:70mm/ 90mm/ 100mm ( Std. )
・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZmagnetfloat
70mmM2PN, M0SM, M0LM,
M3, M11N, BA
F25N, F28N
90mmF28S, F30S
100mmT144,T163F40S, F42S, F50S

  □:□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.


④ Thread / Rod diameter
  M :M24xP1.0, rod Φ10(STD)
  N :M18xP1.5, rod Φ10
  U :3/4-16UNF-3A, rod Φ10
  M8 :M24xP1.0, rod Φ8
  N8 :M18xP1.5, rod Φ8
  U8 :3/4-16UNF-3A, rod Φ8
  M14:M24xP1.0, rod Φ13.8
  Z :EF ( flexible element ) only ( without outer housing )


⑤ Associated magnet or float

magnetfloat
M2PN :No.2PN (Std.)
M0SM :No.ΦSPM
M0LM :No.ΦLPM
M3 :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3
BA : No.No.2KYN-17-LG
F28S:Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.


⑥ Cable connection
  8P :connector
  △G□F :pigtail / cable end : free
  △G□A :pigtail / cable end : with connector for relay
   ( □:cable length(m) 、Max.10m ) (*)
   ( △:cable type
     S :standard, H :high temp. cable, R :robot cable, U L :cUL cable)
  CN existing connector ( Please refer to P.109 of option.)

(*) In case of using extension cable sensor cable (m) + extension cable (m) ≦ 100m
・Please consider extension cable on page 114.
・In case that you need loose mating connector, ordering connector ( straight or L-shaped )
separately is necessary.


⑦ Resolution
  D2:0.1mm
  D3:0.05mm
  D4:0.01mm (Std.)
  D5:0.005mm
  D7:0.002mm
  D8:0.001mm


⑧ Direction
  D :When magnet moves toward tip, output increase
  R :When magnet moves toward tip, output decrease


⑨ Pulse frequency
  1:1MHz
  2:500kHz( Std. in case of ⑦ resoluton:D7, D8 )
  3:250kHz( Std. in case of ⑦ resolution:D2〜D5 )
  4:125kHz
  6:31kHz
  7:15kHz
・Allowable magnet speed depends on the selected resolution and pulse freq.
Allowable speeds for Std. setting are as below.

Resolution(mm)Pulse freq.Max. magnet speed
0.1mm250kHz(*)15m/sec
0.05mm250kHz(*)15m/sec
0.01mm>250kHz8m/sec
0.005mm250kHz4m/sec
0.002mm500kHz3.2m/sec
0.001mm500kHz1.6m/sec
* ( For the noise cancellation function )


⑩ Option
  blank :without option
  SRT:SRT option ( ⑥ Cable connection :pigtail type only )

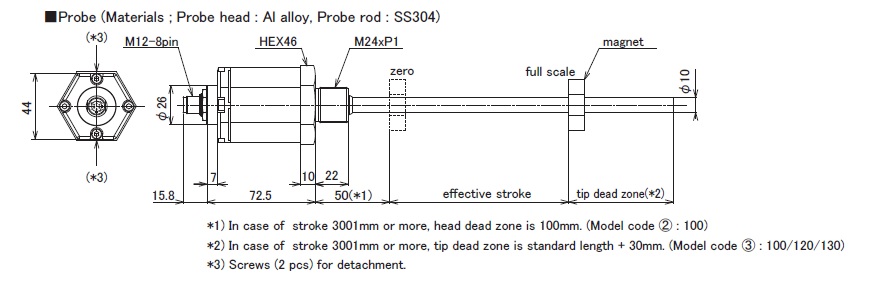

Dimensions

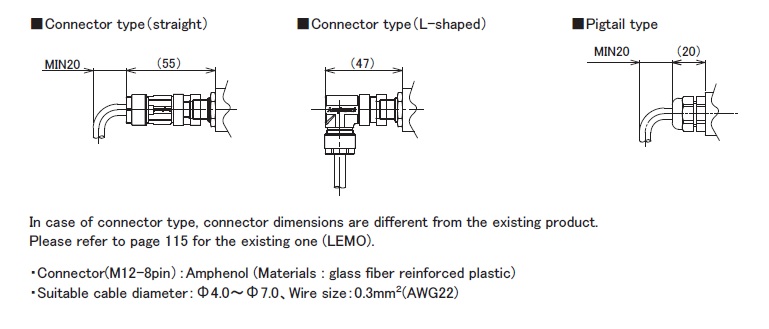

Probe Detachable probe element Connector & Pigtail type Cable
Zoom ZoomZoomZoom
