GYSE-P Probe.

Profibus DP interface (detachable probe element）

GYSE-P is PROFIBUS interface type.
Setting parameters (resolution, output direction) through PROFIBUS
is possible.
GSD file is available on SANTEST web site.
Detecting up to 32 pcs of magnets on one probe is possible.
When you use a PROFIBUS master simulator of separate sale,
it's possible to confirm the data and to set up a PROFIBUS
slave from a PC without PROFIBUS master (usually, PLC).

　・ CE marking
　・ Noise cancellation

( Created on Feb. 2. 2023 )

Specifications

Non-linearity	≦±0.025%FS (Typ.)
Resolution	Min. 1μm ( set by Profibus Configurator )
Repeatability	≦±0.001%FS ( Min. ±3μm )
Temp. drift	≦±15ppmFS / °C
Output	Profibus DPV0
Power supply	+24(±2)VDC (70mA)
Sampling freq.	Stroke 〜800mm : 2000Hz 　　　〜2200mm : 1000Hz 　　　〜5000mm : 500Hz 　　　5001mm〜 : 250Hz
Max. Pressure	35MPa ( probe rod )
Operating temp.	-20°C〜+75°C
Storage temp.	-40°C〜+75°C
Vibration	15G ( 20〜100Hz )
Shock	100G ( 2msec )
IP grade	IP67

・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.
(*) In case of multi magnets on one probe, sampling frequency is not standard value.

Model No.

① Effective stroke
　　15〜7500mm

② Head dead zone
　　50: 50mm(Std.)
　　□: □mm ( option ) ( specified by customers )
　・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
　　□: 70mm/ 90mm/ 100mm ( Std.)

□	tip DZ	magnet	float
70	70mm	M2PN, M3, M11N, BA	F28N
100	100mm	T144, T163	F40S, F42S, F50S, F54S

④ Thread / Rod diameter
　　N :M18xP1.5, rod Φ10 (Std.)
　　M :M24xP1.0, rod Φ10
　　M14 :M24xP1.0, rod Φ13.8

⑤ Associated magnet or float

magnet	float
M2PN :No.2PN (Std.) M3 :No.3 M11N :No.11N T144 :No.T14-M4 T163 :No.T16-M3 BA : No.2KYN-17-LG	F40S :Φ40 SS316(B) F42S :Φ43 SS316L F50S :Φ50 SS316L F54S :Φ54 SS304 F28N :RF-A6 plastic

　・Selecting magnet from page 116〜118(GG)．
　・Please consult our factory in case of requesting special magnet or float.
　・This model code means only specifying associated magnet or float.
　・Ordering magnet or float individually.

⑥ Cable connection
　　CN :connector ( Std.)

⑦ Option
　　blank :without option
　　SRT :SRT option
　　L :linearization option (≦0.006％ FS Typ.)
　　2M : temperature compensation (≦±7ppmFS / °C)
　　2ML : temperature compensation + linearization

　・Please confirm the details of SRT option on page 114.

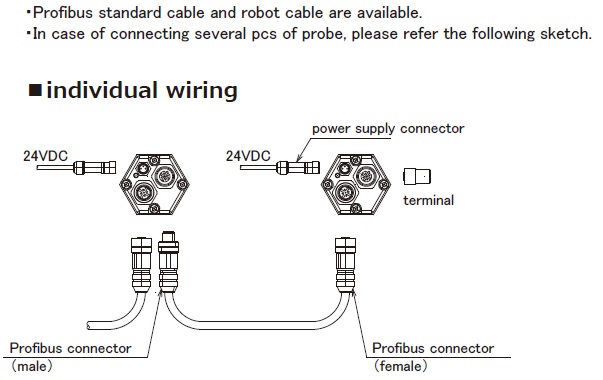

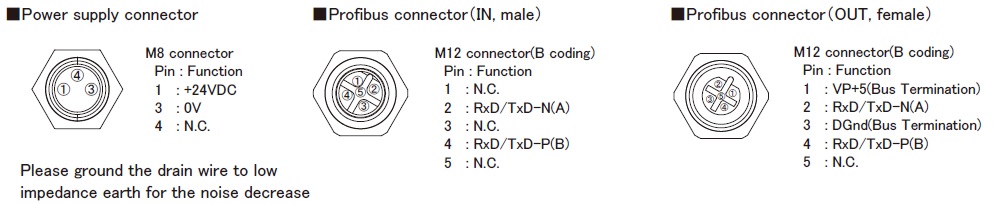

■Connector and Cable Models
・Power supply connector
　　　:CN-SEP-M8-□
・Profibus connector (IN, male)
　　　:CN-SEP-M12M-○□-△
・Profibus connector (OUT, female)
　　　:CN-SEP-M12F-○□
・Terminal
　　　:CN-SEP-TR

　　○ :cable length(m),
　　　S :standard
　　　 R :robot cable
　　□ :cable length(m)
　　　In case of “0”, it means loose connector only
　　△ :Connector
　　　blank :loose connector ( IN, male )
　　　M12F:with connector ( OUT, female ) at the other end
　　　( Need to specify cable length )

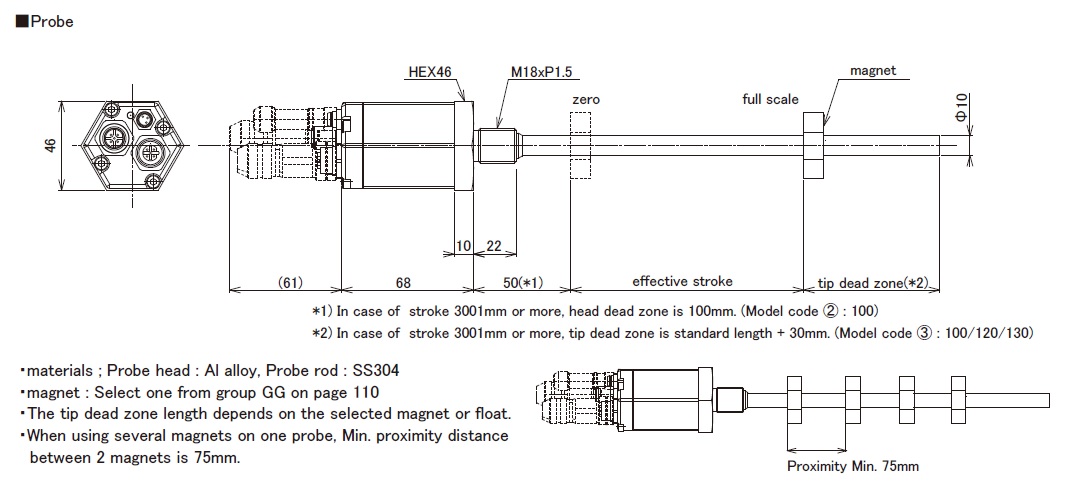

Dimensions

Probe		Profibus Connector
