All-in-one Series

GYSE-EP2 Probe
EtherNet/IP interface
　（ detachable probe element ）
GYSE-EP2 Probe

GYSE-EP2 is EtherNet/IP interface.
It is an adapter device that outputs position/velocity of
magnets via EtherNet/IP.
Detecting up to 20 pcs of magnets on one probe is possible.
The inside probe element can be detached from the outer
housing.


　・Noise Cancellation

　( Created on Feb. 2. 2023 )

Specifications

Non-linearity ≦±0.025%FS Typ.
Resolution Position: Min. 1um
　　 (multi-magnet: Min. 10μm)
Velocity: Resolution 1μm/sec
　　(velocity 1mm/sec or higher)
Set by "Configuration Assembly"
Repeatability ≦±0.001%FS (≦Min.±3μm)
Temp. drift ≦±15ppmFS/°C
OutputEtherNet/IP
Power supply +24VDC(±5％)(110mA)
Sampling freq.
(＊)		 1kHz (≦1300mm)
500Hz (≦2400mm)
250Hz (≧2401mm)
Max. Pressure 35MPa(probe rod)
Operating temp. -20°C〜+75°C
Storage temp. -40°C〜+90°C
Vibration 15G(10-100Hz)
Shock 100G(2msec)
IP grade IP67

　　・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
　　・The specification of stroke less than 300mm is equal that of stroke 300mm.
　　(*) In case of multi magnets on one probe, sampling frequency is not standard value.

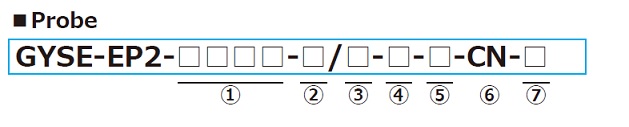

Model No.

① Effective stroke
　　15〜7500mm

②Head dead zone
　　50: 50mm( Std.)
　　□: □mm (option)(specified by customers)

　・Possible Min. length depends on the selected magnet.

③ Tip dead zone
　　□:70mm/ 100mm(Std.)
　

□tip DZmagnet
7070mmM2PN, M3, M11N
100100mmT144, T163


　　□:□mm (option)(specified by customers)

　　・Possible Min. length depends on the selected magnet or float.

④ Thread / Rod diameter
　　M :M24xP1.0, rod Φ10 (Std.)
　　N :M18xP1.5, rod Φ10
　　M14:M24xP1.0, rod Φ13.8


⑤ Associated magnet
　　M2PN :No.2PN (Std.)
　　M3 :No.3
　　M11N :No.11N
　　T144 :No.T14-M4
　　T163 :No.T16-M3

　・Selecting magnet from page 116〜118(GG)．
　・Please consult our factory in case of requesting special magnet or float.
　・This model code means only specifying associated magnet or float.
　・Ordering magnet or float individually.

⑥ Cable connection
　　CN :Connector (Std.)


⑦ Option
　　blank :without option
　　SRT :SRT option
　・Please confirm the details of SRT option on page 114.　


Dimensions

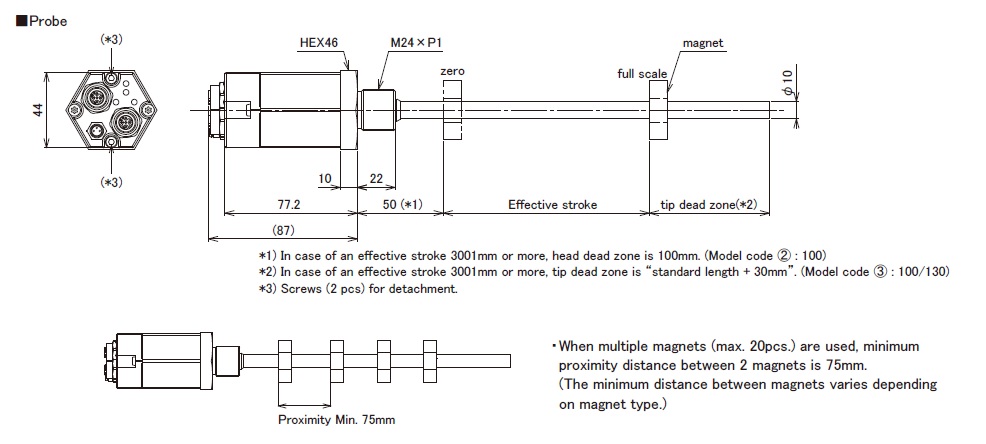

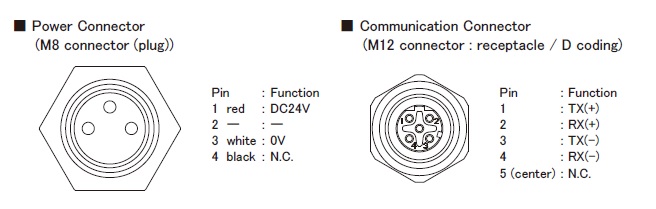

Probe Connector Detachable probe element
Zoom ZoomZoom
