GYSE-A Probe.
High performance analogue output  (detachable probe element)
GYSE-A Probe.

GYSE-A is a high performance analog output probe,
and has the high resolution of 16bit.
It has also velocity output.
Using two pcs of magnet on the probe as another option,
detecting each magnet position or relative distance between
the twois possible.
The inside probe element can be detached from the outer
housing, and with the captive software (GPM), zero and gain
adjustment is possible at user side.
The sensor inside element flexible option is available and
also most suitable for the exchange when space is small.

 ・ CE marking
 ・ Noise cancellation
 ・ GPM setting

( Created on Apr.19. 2021 )


Non-linearity≦±0.025%FS Typ.
Repeatablity≦±0.001%FS (Min. ±3μm)
Temp. drift≦±20ppmFS/°C
Position ( Std. )0-10V(output current : Max.5mA, load : Min.2kΩ)
or 4-20mA(load : Max.500Ω)
Velocity ( Option )±10V(output current : Max.5mA, load : Min.2kΩ)
or 4-20mA(load : Max.500Ω)
Alarm Open drain 50V 0.1A (for magnet missing)
Power supply+24(±2)VDC (80mA)(*1 )
Sampling freq. (*2 )Std. 1kHz( total rod length : up to 1300mm )
Max. Pressure35MPa ( probe rod )
Operating temp.-20°C〜+75°C
Storage temp.-40°C〜+75°C
Vibration15G ( 20〜100Hz )
Shock100G ( 2msec )
IP gradeIP67

・The above mentioned accuracy applies to sensors with an effective length of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.

(*1)The consumption current is 100mA in case of adding OUT2 option (Model ⑧).
(*2)Sampling freq. is available to Max. 3.75kHz by option. It depends on the total rod length (shows in Model ⑨),
and the consumption current increases.

Model No.

① Effective stroke

②Head dead zone
  □:□mm (option)(specified by customers)

③ Tip dead zone
  S:70mm/ 90mm/ 100mm(Std.)
  ・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZmagnetfloat
70mmM2PN, M0SM, M0LM,

  □:□mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.

④ Thread / Rod diameter
  M :M24xP1.0, rod Φ10(Std.)
  N :M18xP1.5, rod Φ10
  U :3/4-16UNF-3A, rod Φ10
  M8 :M24xP1.0, rod Φ8
  N8 :M18xP1.5, rod Φ8
  U8 :3/4-16UNF-3A, rod Φ8
  M14:M24xP1.0, rod Φ13.8
  Z :EF (flexible element) only (without outer housing)

⑤ Associated magnet or float

M2PN :No.2PN (Std.)
M3 :No.3
M11N :No.11N
T144 :No.T14-M4
T163 :No.T16-M3
BA : No.2KYN-17-LG
F28S:Φ28 SS316L
F30S :Φ30 SS316L
F40S :Φ40 SS316(B)
F42S :Φ43 SS316L
F50S :Φ50 SS316L
F54S :Φ54 SS304
F25N :RF-A10 plastic
F28N :RF-A6 plastic

⑥ Cable connection
  △G□F :pigtail / cable end : free
  △G□A :pigtail / cable end : with connector for relay
    (□:cable length (m)、Max.10m)(*)
    (△:cable type
       S :standard, H :high temp. cable, R :robot cable, UL :cUL cable)
  CN :existing connector (Please refer to P.109 of option.)

(*) In case of using extension cable
Voltage output : sensor cable (m) + extension cable (m) ≦ 10m
Current output : sensor cable (m) + extension cable (m) ≦ 100m
・Please consider extension cable on page 114.
・In case that you need loose mating connector, ordering connector (straight or L-shaped) separately is necessary.

⑦ Position output( OUT1 )
  AD:0〜10V( When magnet moves toward tip, output increase )
  AR:10〜0V( When magnet moves toward tip, output decrease )
  BD:4〜20mA( When magnet moves toward tip, output increase )
  BR:20〜4mA( When magnet moves toward tip, output decrease )
  CD□□:bipolar output( -□V〜+□V )
        ( for example CD10:-10V〜+10V )
  CR□□:bipolar output( +□V〜-□V )
        ( for example CR05:+5V〜-5V )
  V Z/F :option (specified voltage)
        ( for example V1/5:1〜5V, V9.5/0.5:9.5〜0.5V )
  I Z/F :option (specified current)
        ( for example I5.2/20:5.2〜20mA, I18/5:18〜5mA )

【 Z=output at zero position, F=output at full position 】

⑧ Option : Analogue output( OUT2 )
  ・N :without option (Std.)
  ・Position output :select from ⑦
  ・Velocity output(Note1)
    VA[  ]:±10V
    WB[  ]:4〜20mA
    [  ]:max. velocity(1.00〜999 mm/s)
        < ex.9R99 : max. velocity = 9.99 mm/s >
VA : When magnet stops, output is 0V.
When moving toward probe tip, +10V.
WB : When magnet stops, output is 4mA.
When moving in any direction, 20mA.

⑨ Option
  blank :without option
  SRT :SRT option ( ⑥Cable connection :pigtail type only )
  H0 :probe rod 100°C
  EF :flexible element (rod Φ10 only)
  X2 :2kHz sampling (total rod length : Max. 700mm)
  X3 :3kHz sampling (total rod length : Max. 500mm)
  X4 :3.75kHz sampling (total rod length : Max. 400mm)

・Please confirm the details of options on page 106 - 109.
・Without EF option (standard), GYSE-A probe element is detachable though the rod parts is rigid.
With EF option, as to accuracy or other specs, please consult factory.

⑩ Two Magnets Option
  A :one magnet (Std.)
  A2MR :two magnets ( relative distance between the two )(*)
  A2ME :two magnets ( each magnet position )(*)
   ( Please consult factory )

(*) When using standard magnets, Min. proximity distance between 2 magnets is 75mm.
When using other magnets, please consult us.

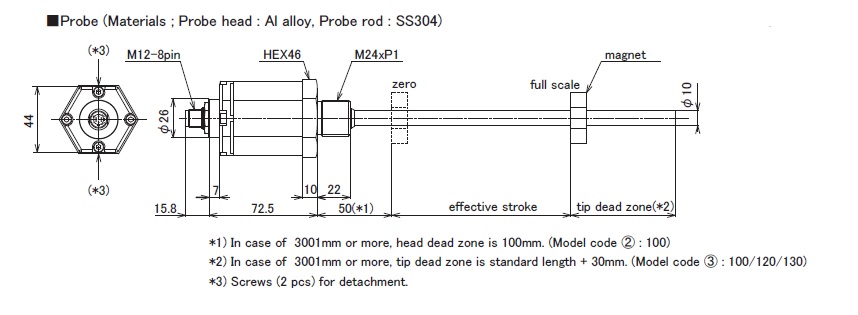

Probe Detachable probe element Connector / Pigtail Cable
Zoom ZoomZoomZoom

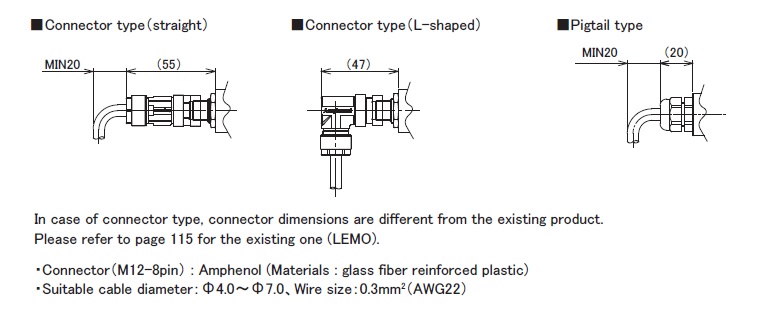

In case of connector type, connector dimensions are different from the existing product.
Please refer to page 109 for the existing one.

・materials ; Probe head : Al alloy, Probe rod : SS304
・magnet : Select one from group GG on page 110
・The tip dead zone length depends on the selected magnet or float.
・connector : Amphenol (materials : glass fiber reinforced plastic)
・Suitable cable diameter:Φ4.0〜Φ7.0、Wire size:0.14〜0.82mm2.
・cable length ; Max.10m (0〜10V output), Max.100m (4〜20mA output)
