GYcAT4 Probe.

Analogue output
( replacement model for GYLT, GYLS )

Replacement model for GYLS (0〜10V) or GYLT (4〜20mA).
The linearity is changed to 0.05%FS from 0.025%FS, so please be
careful.
GYcAT4 doesn't have alarm output.
Please consider GYcAT (page 16-17) in a new inquiry.
By the option, it is available with the High speed sampling, and
High temperature (rod parts only).

　・ CE marking
　・ Noise cancellation

( Created on Nov. 10. 2021 )

Specifications

Non-linearity	≦±0.05%FS Typ.
Resolution	≦0.01%FS
Reapeatablity	≦0.01%FS
Temp. drift	≦±40ppmFS / °C
Voltage output	０〜10V or 10〜0V ( output current :Max.5mA, load :Min.2kΩ )
Current output	4〜20mA or 20〜4mA ( load : Max.500Ω )
Alarm output	not available
Power supply	+24(±2)VDC ( 100mA )
Sampling freq.	Std. 1kHz ( total rod length : up to 1250mm )
Max. Pressure	35MPa ( probe rod )
Operating temp.	-20°C〜+80°C
Storage temp.	-40°C〜+80°C
Vibration	6G ( or 40Hz 2mmPP
Shock	50G ( 2mse )
IP grade	IP67 (10KPa, 30min )

・The above mentioned accuracy applies to sensors with an effective
　stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.

(*) Sampling freq. is available to Max. 8kHz by option.
It depends on the total rod length (shows in Model ⑧),
and the consumption current increases.

Model No.

① Effective stroke
　　15-3500mm

② Head dead zone
　　S :50mm (Std.)
　　□ :□mm ( option ) ( specified by customers )

・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
　　S:70mm/90mm/100mm (Std.)
・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZ	magnet	float
70mm	M2P, M2PN, M0 M0SM, M11, M3	F25N, F28N
90mm		F28S, F30S
100mm	T142(144), T162(163)	F40S, F42S, F50S, F54S

□ :□mm ( option ) ( specified by customers )
・Possible Min. length depends on the selected magnet or float.

④ Thread / Rod diameter
　　M :M24xP1.0, rod Φ10 (Std.)
　　N :M18xP1.5, rod Φ10
　　U :3/4-16UNF-3A, rod Φ10
　　M8 :M24xP1.0, rod Φ8
　　N8 :M18xP1.5, rod Φ8
　　U8 :3/4-16UNF-3A, rod Φ8
　　M14:M24xP1.0, rod Φ13.8

⑤ Associated magnet or float

magnet	float
M2P :No.2P (Std.) M2PN : No.2PN MG0 :No.Φ M0SM :No.ΦSPM M0LM :No.ΦLPM M3 :No.3 M11 :No.11 M11N :No.11N T142 :No.T14-M2 T144 : No.T14-M4 T162 :No.T16-M2 T163 : No.16-M3	F28S :Φ28 SS316L F30S :Φ30 SS316L F40S :Φ40 SS316(B) F42S :Φ43 SS316L F50S :Φ50 SS316L F54S :Φ54 SS304 F25N :RF-A10 plastic F28N :RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.

⑥ Cable connection
　　CN :connector
　　G□F :pigtail / cable end : free
　　G□A :pigtail / cable end : with connector for relay
　　　　( □ :cable length (m), Max.10m )(*)

(*) In case of using extension cable
Voltage output : sensor cable (m) + extension cable (m) ≦ 10m
Current output : sensor cable (m) + extension cable (m) ≦ 100m
・Please consider extension cable on page 113.
・In case that you need loose mating connector, ordering connector
(straight or L-shaped) separately is necessary.

⑦ Position output
　　AD :0〜10V ( When magnet moves toward tip, output increase )
　　AR :10〜0V ( When magnet moves toward tip, output decrease )
　　BD :4〜20mA ( When magnet moves toward tip, output increase )
　　BR :20〜4mA ( When magnet moves toward tip, output decrease )
　　CD□□　:bipolar output (-□V〜+□V)
　　　　　　　　(for example CD10 :-10V〜+10V )
　　CR□□:bipolar output (+□V〜-□V)
　　　　　　　　(for example CR05 :+5V〜-5V )

⑧　Option
　　blank :without option
　　H0 :probe rod 100°C
　　X2 :2kHz sampling ( total rod length : Max.750mm )
　　X4 :4kHz sampling ( total rod length : Max.450mm )
　　X8 :8kHz sampling ( total rod length : Max.300mm )
　　・Please confirm the details of H0 option on page 106.

Dimensions

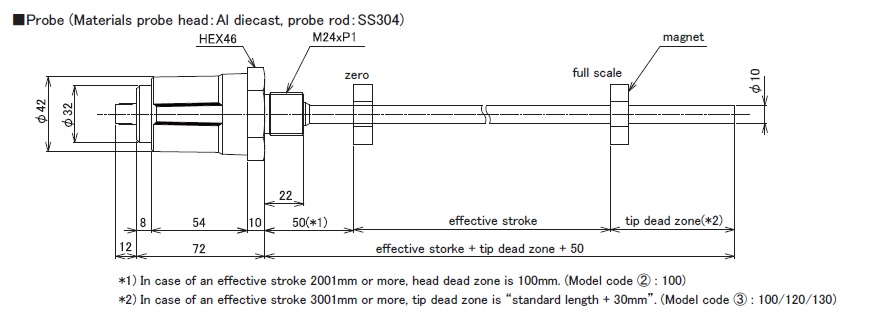

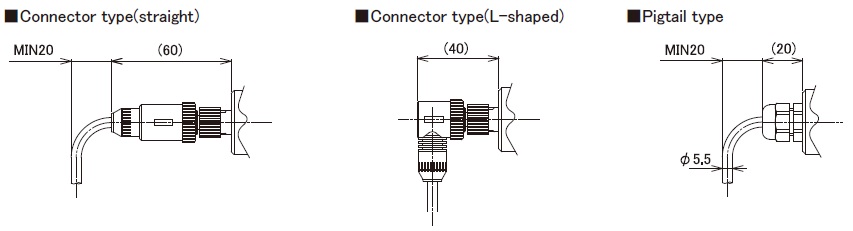

Probe		Connector & Pigtail		Cable

・Material probe head :Al diecast, probe rod:SS304
・Magnet : Select one from group GG on page 110 ( in case of a new inquiry, select one from group B )
・The tip dead zone length depends on the selected magnet or float.
・Connector :Omron XS2C-D4S1 ( straight type ) or D4S2 ( L type ) ( Material :PBT plastic )
・Suitable cable diameter :Φ5〜Φ6, Wire size:0.18〜0.75mm2
・cable length :Max.10m ( 0〜10V output ), Max.100m ( 4〜20mA output )
