GYAF1 Probe.

Flat head, Analogue output

GYAF1 probe is an all-in-one sensor with the flange shape.
You can get a voltage or current analog signal proportional
to magnet position only by applying a 24VDC power supply
directly to it.
Reversed output or bipolar output can be supported as well.
The flat head permits a miniaturized application, and
the flange makes the installation easier, compared with
the conventional screw type probes.

( Created on Nov. 1. 2021 )

Specifications

Non-linearrity	≦0.025％FS　Tpy.
Resolution	≦0.01%FS
Repeatability	≦±0.01%FS
Temp.	≦±40ppmFS/°C
Voltage output	0〜10V or 10〜0V(output current: Max. 5mA, load: Max. 2kΩ)
Current output	4〜20mA or 20〜4mA(load:Max. 500Ω)
Alarm output	not available
Power supply	+24(±2)VDC (100mA)
Sampling freq.	Std. 1kHz (up to stroke 1000mm)
Max. Pressure	35MPa (probe rod)
Operating temp.	-20°C〜+80°C
Storage temp.	-40°C〜+80°C
Vibration	6G ( or 40Hz 2mmPP)
Shock	50G (2ms)
IP grade	IP67 (option: IP68)

・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・The specification of stroke less than 300mm is equal that of stroke 300mm.

Model No.

① Effective stroke
　　15〜3000mm

② Head dead zone
　　S:50mm(Std.)
　　□:□mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.

③ Tip dead zone
S:70mm/ 90mm/ 100mm(Std.)
・S (Std. length) depends on the selected magnet or float in ⑤.

tip DZ	magnet	float
70mm	M2PN,M3, M11N,BA	F28N
90mm
100mm	T144,T163	F40S,F42S, F50S,F54S

□:□mm (option)(specified by customers)
・Possible Min. length depends on the selected magnet or float.

④ Mount / Rod diameter
　　F: flange, rod Φ10(Std.)

⑤ Associated magnet or float

magnet	float
M2PN: No.2PN (Std.) M3 :No.3 M11N :No.11N T144 :No.T14-M4 T163 :No.T16-M3 BA :No.2KYN-17-LG	F40S :Φ40 SS316(B) F42S :Φ43 SS316L F50S :Φ50 SUS316L F54S :Φ54 SS304 F28N :RF-A6 plastic

・Please consult if you select a magnet or a float of other than above.
・This Model code means only specifying associated magnet or float.
・When you need a magnet or float, please order separately.

⑥ Cable connection
　　CN: connector
　　G□F: pigtail / cable end : free
　　G□A: pigtail / cable end : with connector for relay
　　　(□:cable length(m)、Max.10m)(*)
　　　　
　＜Water proof option＞(recommendation : pigtail (WP3G))
　　WPCN: submersible connector type
　　WP3G□F:pigtail / cable end : free
　　WP3G□A:pigtail / cable end : with connector for relay
(□:cable length(m)、Max.10m)(*)
　　　　
(*) In case of using extension cable
Voltage output : sensor cable (m) + extension cable (m) ≦ 10m
Current output : sensor cable (m) + extension cable (m) ≦ 100m
・Please consider extension cable on page 112.
・In case that you need loose mating connector, ordering connector (straight only) separately is necessary.

⑦ Position output
　　AD:0〜10V(When magnet moves toward tip, output increase)
　　AR:10〜0V(When magnet moves toward tip, output decrease)
　　BD:4〜20mA(When magnet moves toward tip, output increase)
　　BR:20〜4mA(When magnet moves toward tip, output decrease)
　　CD□□:bipolar output(-□V〜+□V)
　　　　　　　　(for example CD10:-10V〜+10V)
　　CR□□:bipolar output(+□V〜-□V)
　　　　　　　　(for example CR05:+5V〜-5V)

Dimensions

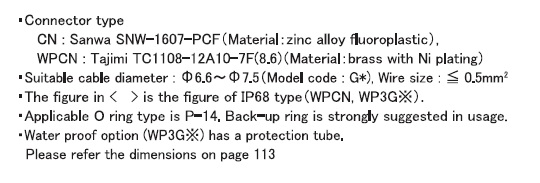

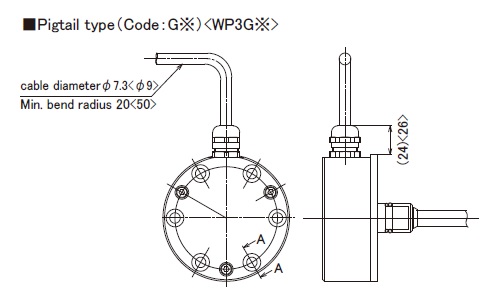

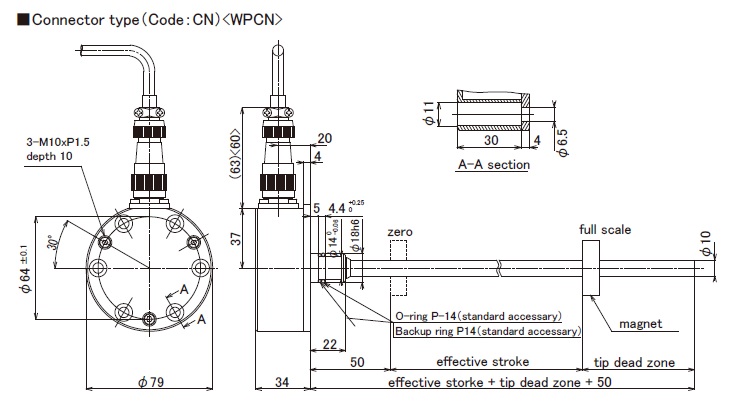

Connector type (Code :CN)		Pigtail type (Code: G※)		Cable		Note

Contact Form
