Model I-SAC Series

I-SAC C1
Compact Low-Cost type
I-SAC C1

I - SAC C1 is a compact and low-cost series,
User can add axes upto four acoording to his necessity.

Axes upto 4 on your demand
One I-SAC C1-M (Elec Source/Communication board
block) can accept upto 4 I-SAC C1-S (servo block)
which provide compactness and low-cost.
Control processing is done independently by each DSP.

Compact, Easy-Mounting
I-SAC C1 series are designed compact and can easily
mount on DIN-rail.

Specifications

elec powerDC 24V (±15％) 400mA (in case 4 axes max load)
input signalanalog (±10V or ±20mA) (A/D16bit) or CW/CCW、pulse train/direction, A/B 1/2/4 (multiply) (differential line driver or open collector)
output signal±10V or ±50mA　max load 200Ω (D/A16bit) (scale adjustable)
sampling3kHz
general-purposed interfaceInput 2 points, Output 2 points (per channel)
options Integration compensation, velocity/acceleration feedback, dither, etc.

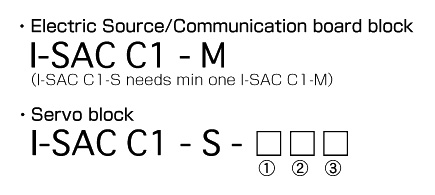

(1):command input V,I,D,O
(2):feed-back input V,I,D,O
(3):controlled output V or I

Command/feed-back
V:analog voltage (±10V)
I:analog current (±20mA)
D:differential line-driver
O:digital open collector

Operating output
V:voltage output ±10V
I:current output ±50mA (load200ΩMAX)

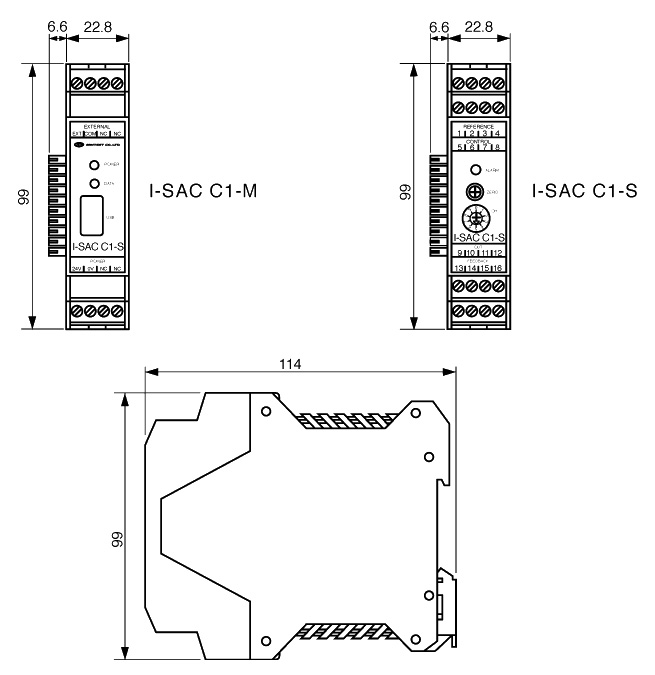

Dimensions


Zoom
