Model GY Series
The GYLS/ GYLS is a discontinued product。
We recommend "GYcAT" for new products and "GYcAT4" for spare
parts (you want to use existing connectors and cables).
---------------------------------------------------------------------------------------
Low cost, all-in-one, direct analogue output (4-20mA or 0-10V).
Absolute, non-contacting transducer Improved non-linearity,
improved S/N ratio, reduced power consumption.
Easy to connect. (screw type)
Wide temperature operating range.
Shock and vibration resistant.
Specifications
| Non-linearity | < ±0.025%FS TYP |
|---|---|
| Resolution | < 0.01%FS |
| Repeatability | < ±0.01%FS |
| Temp drift | < 40ppm FS/°C |
| Voltage output | Model:GYLS 0-10V or 10-0V / (output current:Max.5mA, load:Min.2kΩ) |
| Current output | Model:GYLT 4-20mA or 20-4mA / (load:Min.500Ω) |
| Power Supply | +24 (±2) VDC (50mA) |
| Frequency response | Std 1kHz (depending on stroke) sampling |
| Admissible press. | 35MPa (probe rod) |
| Operating Temp | -20°C-+80°C |
| Storage Temp | -40°C-+80°C |
| Vibration | 6G (or 40Hz 2mmPP) |
| Shock | 50G (2msec) |
| Protection | IP67 (10kPa, 30min) |
The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
Model No.
(1):Effective stroke
15mm-3500mm
(2):Direction of output
(toward probe tip)
D:output data increase
R:output data decrease
(3):Thread
M:M24xP1.0 (Standard)
N:M18xP1.5
U:3/4-16UNF
(4):Sensor rod diameter
blank:Φ10 (Standard)
8:Φ8
14:Φ13.8
(5):Cable connection
CN:Connector (Standard)
G*:Pigtail type
(*:Cable length [m], Standard:1.5m)
Connector:straight or angle type
Connector:only counter connector is supplied. In case cable needed,
specify cable length.

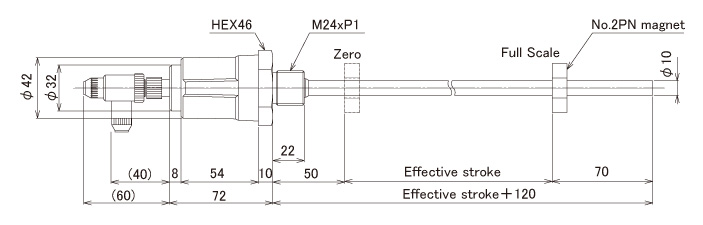

Dimensions

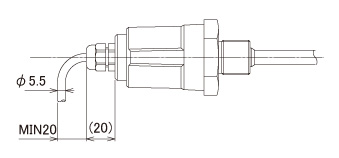

| Connector type (Standard) | Pigtail type (Option) | |||||
|---|---|---|---|---|---|---|
 |  | |||||
|
|
Material probe head:Al diecast, probe rod:SS304
Standard magnet:No.2PN. Other magnets are available from Magnet Grouping [GG].
The tip dead zone length (70mm) depends on the magnet or float type.
The length of the cable should be less than 10m in case of using the voltage output type
and 100m in case of using the current output type.
Connector:Omron XS2C-D4S1 (straight type) or D4S2 (L type) (Material:PBT plastic)
Applied cable diameter:Φ5-Φ6
Wire size:0.18-0.75mm2
Connection
1 DC24V
2 0V
3 Output (Current or Voltage)
4 COM
*Shield should be connected with 0V
at user side.
*0V and COM are connected in the head.
