Model GY Series
Linear Profile Version
/ The maximum effective stroke is 1200mm.
The GYKM is a discontinued product, but please contact us for spare parts
or repeats.
For new projects, we recommend "GYKMR".
---------------------------------------------------------------------------------------
The profile measuring Φ25mm×height 22.5mm renders you a free
mechanical design in adopting our "GY" series.
Applications have been widened by mounting GYKM series to
cylinders, machines, equipment and it gives infinite life time due to
magnetostrictive non-contact sensor, well replacing conventional
potentiometers.
GYKM probe can also be used in combination with GYHC or GYDC-05
controller, which provides velocity output or digital output.
Specifications
| Non-linearity | ≦±0.05%FS TYP | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Resolution | ≦0.01%FS | ||||||||||||||
| Repeatability | ≦±0.01%FS | ||||||||||||||
| Temp. drift | ≦±50ppmFS/°C(probe) ≦±50ppmFS/°C(controller) | ||||||||||||||
| Voltage output | 0-10V or 10-0V (output current:Max.5mA, load:Min.2kΩ) | ||||||||||||||
| Current output | 4-20mA or 20-4mA (load:Max.500Ω) | ||||||||||||||
| Alarm output | not available | ||||||||||||||
| Power supply | +24(±2)VDC (100mA) | ||||||||||||||
| Sampling freq. | Std 1kHz(up to stroke 1000mm) | ||||||||||||||
| Operating temp. | 0°C-+65°C(probe) 0°C-+60°C(controller) | ||||||||||||||
| Storage temp. | -20°C-+65°C | ||||||||||||||
| Vibration | 3G(or 40Hz 2mmPP) | ||||||||||||||
| Shock | 10G(2msec) | ||||||||||||||
| IP grade | IP63-IP65(probe) | ||||||||||||||
| Std 1.5m（Option Max.100m） | |||||||||||||||
・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・Zero/Gain adjustment by trimmer of controller are possible,std within ±3%FS.
Model No.
①Effective stroke
15mm-1200mm
②Magnet
R:rod Φ6(M5 thread)
R2:rod Φ6(M5 thread)
R88:rod Φ8(M8 thread)
R85:rod Φ8(M5 thread)
RW88:Both end Universal Joint Type(rod Φ8)
U:Slide magnet
T:Floating magnet(gap 1mm)
TS:Floating magnet(gap 4mm)
TW:Floating magnet(gap 8mm)
U-FX65:Slide magnet
+flexible rod Φ6(M5 thread)
U2-FX88:Slide magnet
+flexible rod Φ8(M8 thread)
③Position output
AD:0-10V(When magnet moves toward tip, output increase)
AR:10-0V(When magnet moves toward tip, output decrease)
BD:4-20mA(When magnet moves toward tip, output increase)
BR:20-4mA(When magnet moves toward tip, output decrease)
CD□□:bipolar output(-□V-+□V)
(for example CD10:-10V-+10V)
CR□□:bipolar output(+□V--□V)
(for example CR05:+5V--5V)

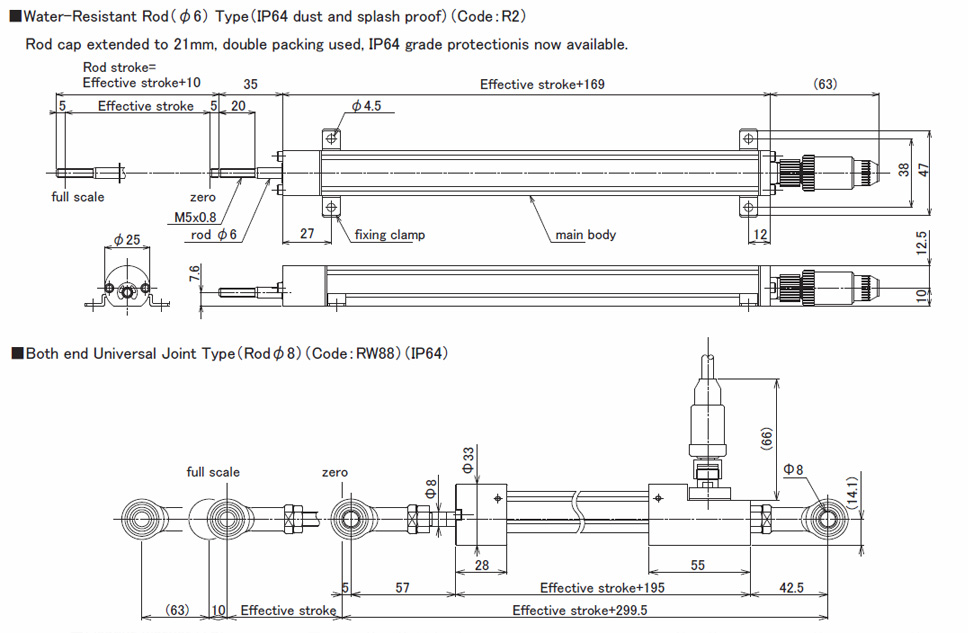

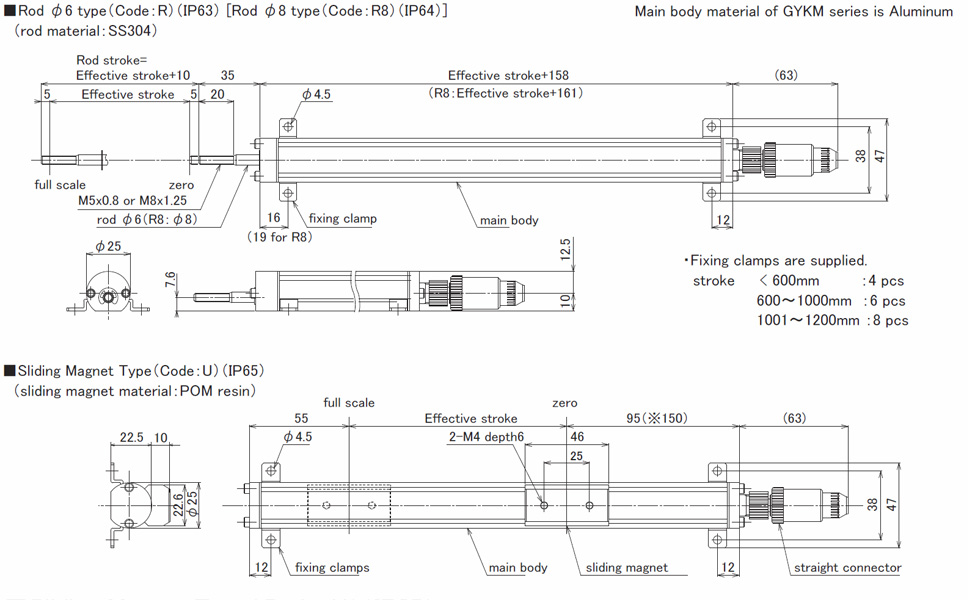

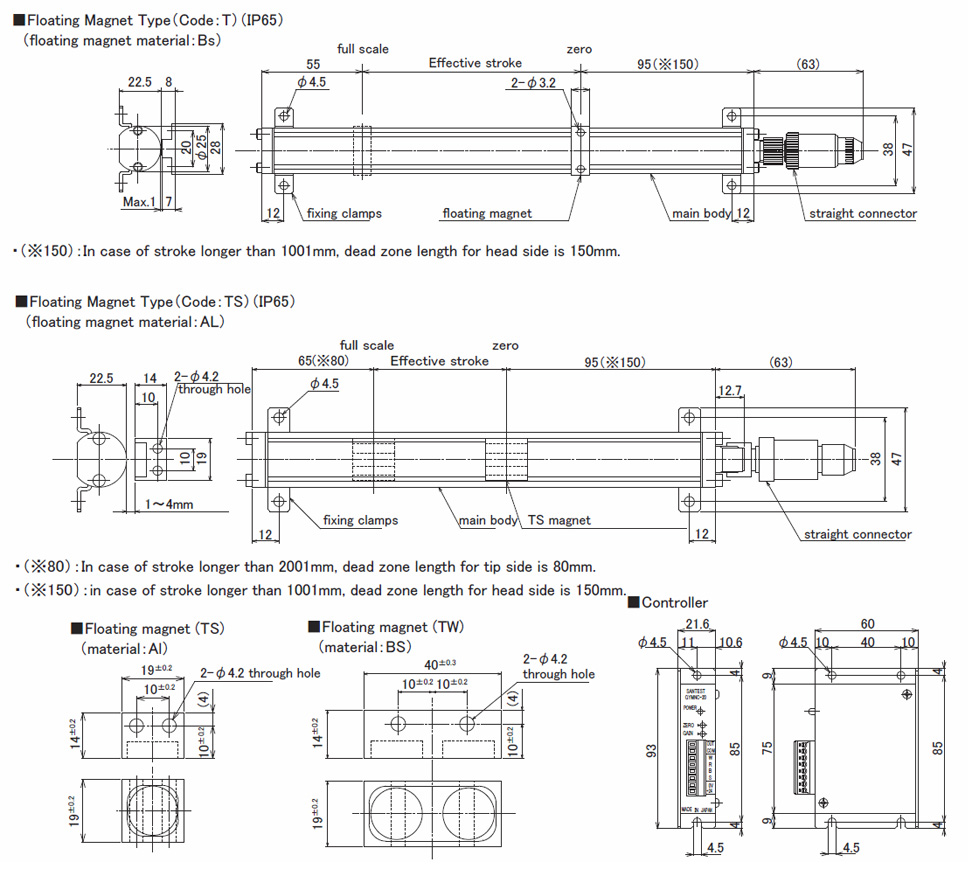

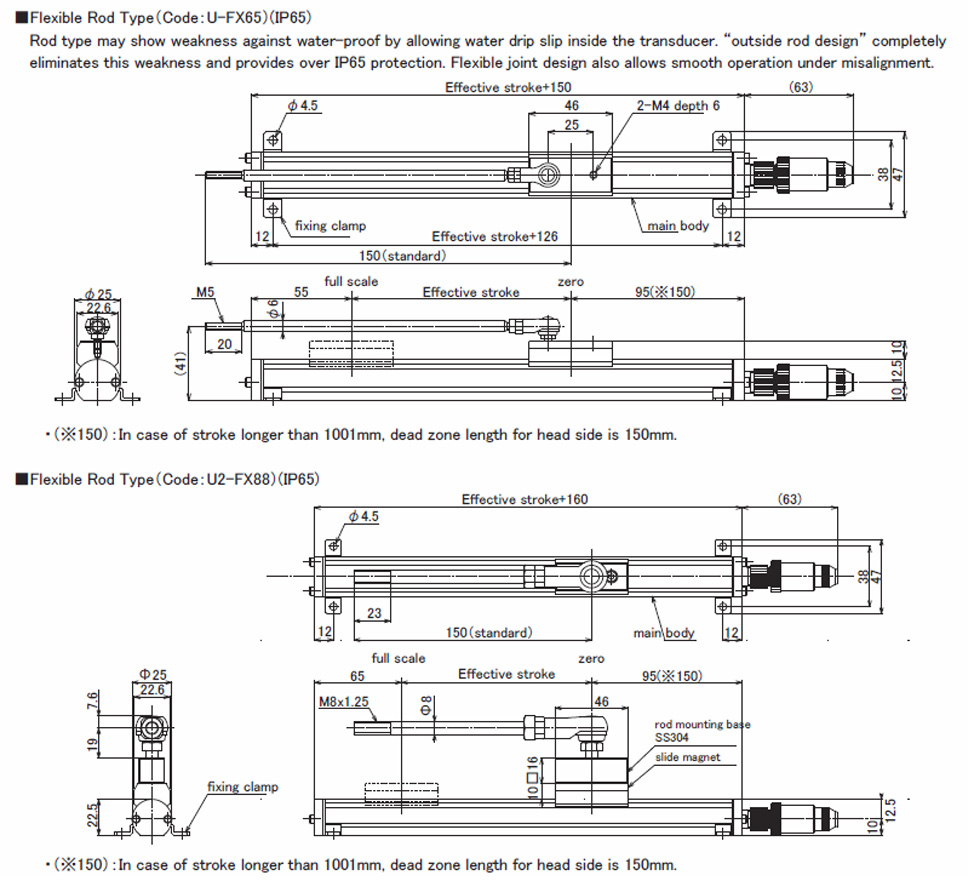

Dimensions
| Dimensions | Dimensions | Option | Option | |||
|---|---|---|---|---|---|---|
 |  |  |  | |||
|
| | |
Main body material of GYKM series is Al Shapes.
Fixing clamps are supplied.
stroke < 600mm:4 pcs
stroke 600-1000mm:6 pcs
stroke 1001-1200mm:8 pcs
Connector:Omron XS2C-D4S1 (straight type) or D4S2 (L type) (Material:PBT plastic)
