Model GY Series
All-in-one Linear Profile Version
/ The maximum effective stroke is 2000mm.
The GYKM-LS / GYKM-LT are a discontinued product,
but please contact us for spare parts or repeats.
For new projects, we recommend "GYKS2".
---------------------------------------------------------------------------------------
Linear profile GYKM series have new version of all electronics
integrated-"GYKM-LT/LS".
Mounting signal processing electronics to probe head,
you can get an analogue signal (4-20mA or 0-10V) proportional
to a magnet position.
Specifications
| Non-linearity | ≦±0.025%FS TYP |
|---|---|
| Resolution | ≦0.01%FS |
| Repeatability | ≦±0.01%FS |
| Temp. drift | ≦±40ppmFS/°C |
| Voltage output (GYKM-LS) | 0-10V or 10-0V(output current:Max.5mA, load:Min.2kΩ) |
| Current output (GYKM-LT) | 4-20mA or 20-4mA(load:Max.500Ω) |
| Power supply | +24(±2)VDC (≦100mA) |
| Sampling freq. | Std 1kHz(up to stroke 1000mm) |
| Operating temp | 0°C-+65°C |
| Storage temp. | -20°C-+65°C |
| Vibration | 3G(or 40Hz 1mmPP) |
| Shock | 10G(2msec) |
| IP grade | IP63-IP65 |
・The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
・Fixing clamps are supplied.
stroke < 600mm :4 pcs
600-1000mm :6 pcs
1001-1200mm :8 pcs
1501-2000mm:10 pcs
Model No.
①Model
LS:Voltage output (0-10V)
LT:Current output (4-20mA)
②Effective stroke
15mm-2000mm
③Magnet
R:rod Φ6(M5 thread)
R2:rod Φ6(M5 thread)
R88:rod Φ8(M8 thread)
R85:rod Φ8(M5 thread)
RW88:Both end Universal Joint Type(rod Φ8)
U:Slide magnet
T:Floating magnet(gap 1mm)
TS:Floating magnet(gap 4mm)
TW:Floating magnet(gap 8mm)
U-FX65:Slide magnet
+flexible rod Φ6(M5 thread)
U2-FX88:Slide magnet
+flexible rod Φ8(M8 thread)
④Position output
AD:0-10V(When magnet moves toward tip, output increase)
AR:10-0V(When magnet moves toward tip, output decrease)
BD:4-20mA(When magnet moves toward tip, output increase)
BR:20-4mA(When magnet moves toward tip, output decrease)
CD□□:bipolar output(-□V-+□V)
(for example CD10:-10V-+10V)
CR□□:bipolar output(+□V--□V)
(for example CR05:+5V--5V)

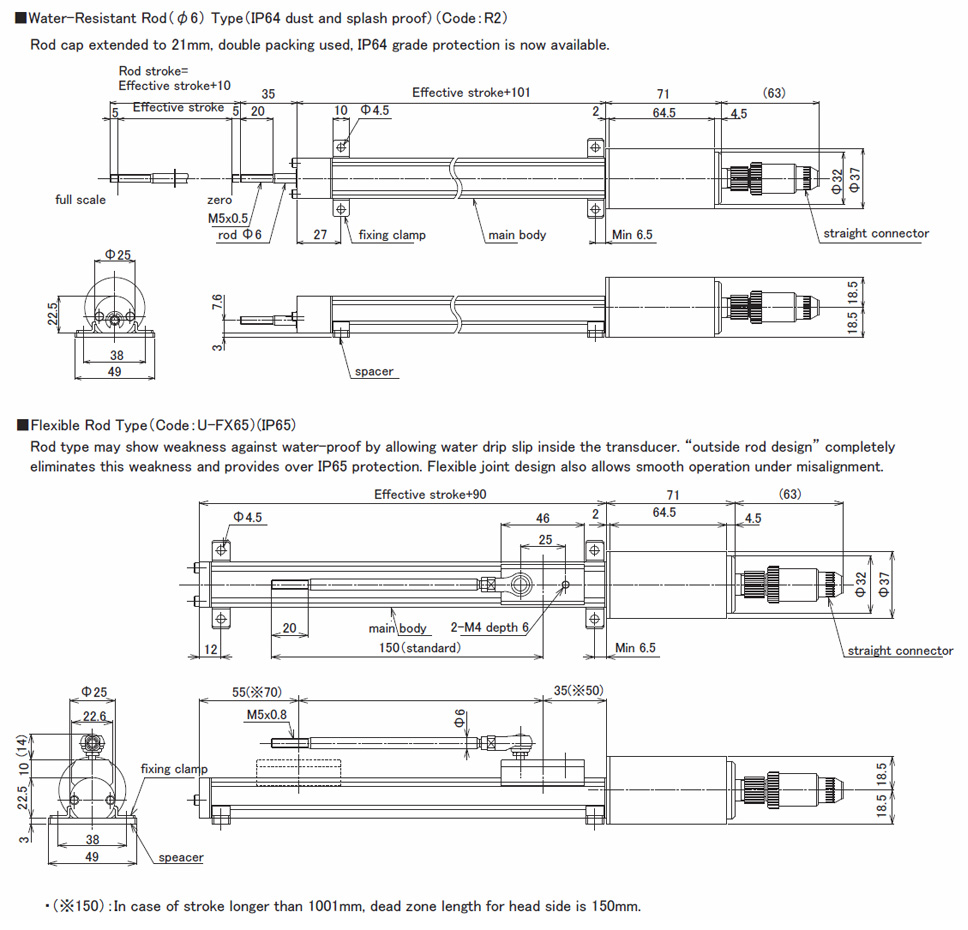

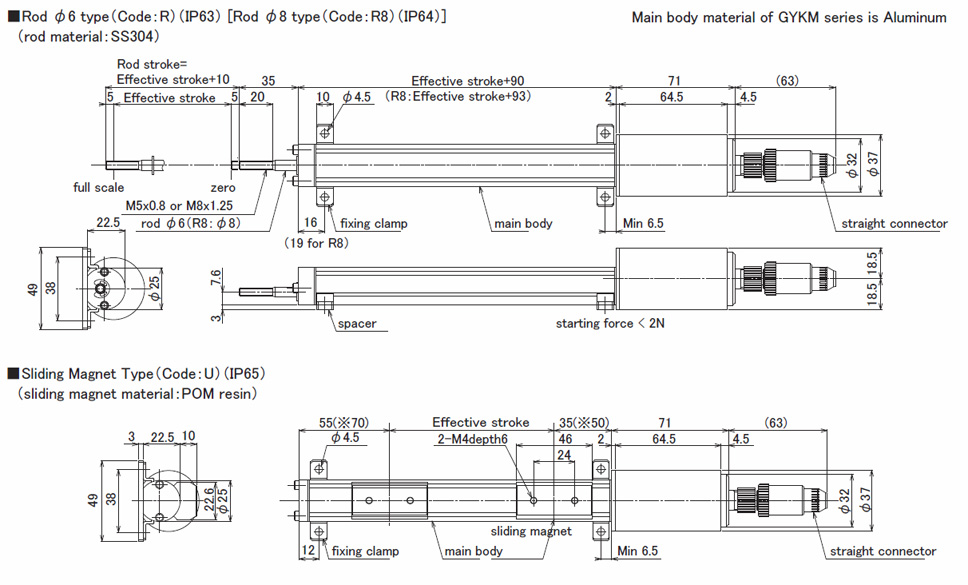

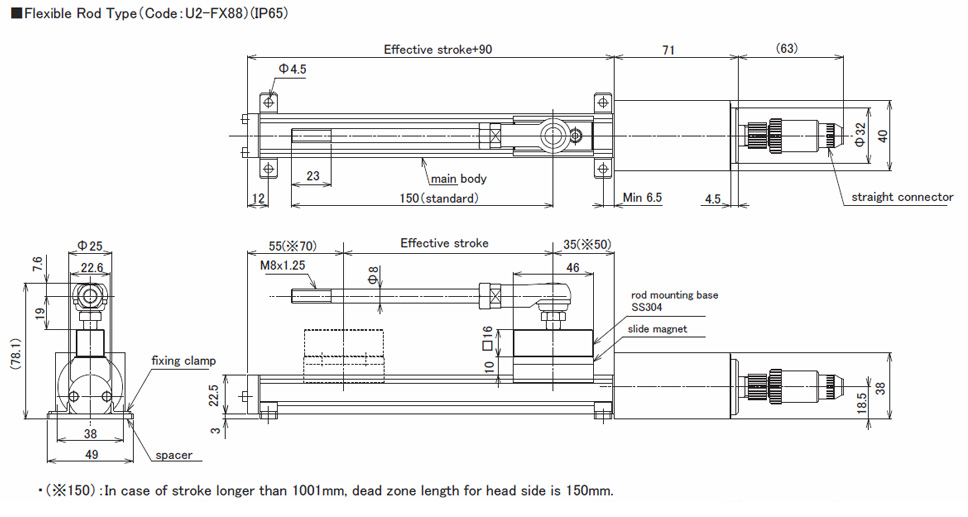

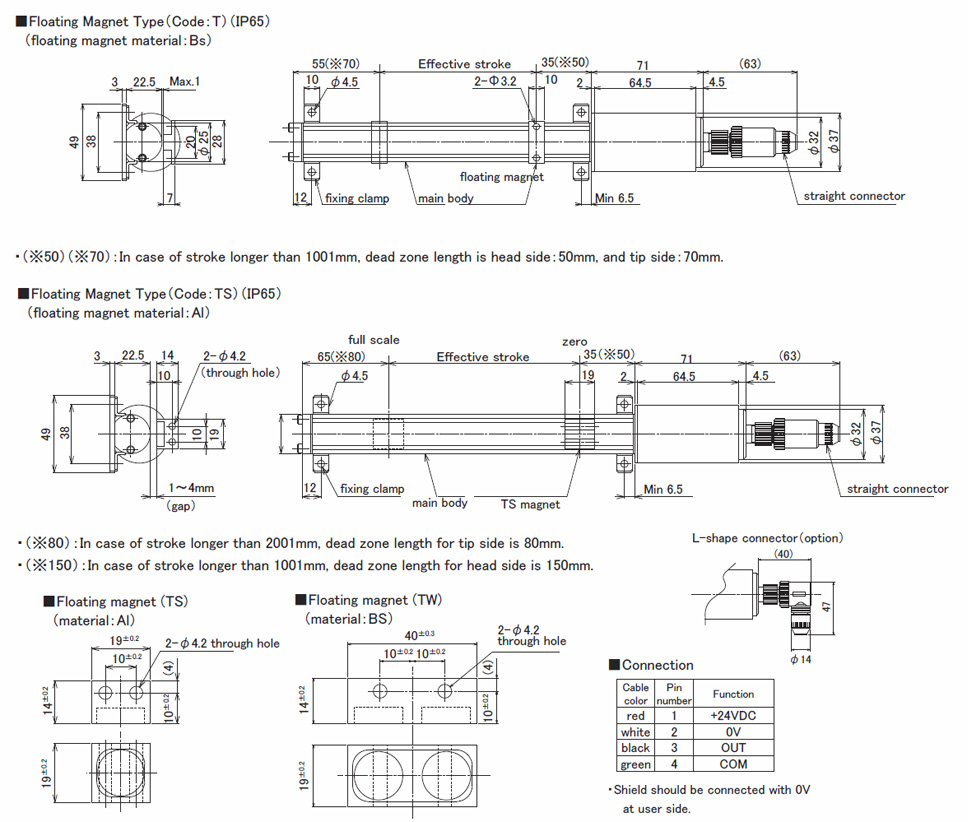

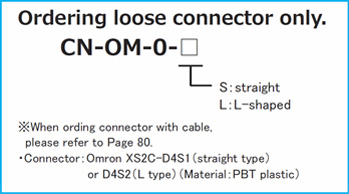

Dimensions
| Dimensions | Dimensions | Option | Option | |||
|---|---|---|---|---|---|---|
 |  |  |  | |||
|
| | |
