Model ARR Series

ARR

Analogue output,all-in-one type

ARR series is rotation angle sensor with simple strcture.It has an eccentric rotor which is linked to the shaft,and coils on 4 stator poles inside.
And it detects magnetic induction variation and converts to absolute output (0-10V or ±10V,4-20mA).
Preset function (setting 4mA or OV at any position) and switch function (CW or CCW) is available.

Specifications

Total rev.	Single turn(270°) 30 turns 60 turns 120 turns 240 turns
Resolution/rev.	single turn:8192 30 turns:2048 60 turns:1024 120 turns:512 240 turns:256
Accuracy	±0.5°
Output	Current output:4 - 20mA (R:Max.500Ω) Voltage output:0 - 10V, -10 - +10V (current:Max.5mA, R:Min. 2kΩ) Others:ready output (NPN or PNP selectable)
Power supply	DC24V ±20% (consumption:less than 100mA)
Sampling freq.	1ms
Start-up torque	< 5N・cm
Mechanical permissible speed	3600rpm
Lifetime	5.5 x 10⁴ hours
Operating temp.	-20 -80°C
Strage temp.	-30 -90°C
Vibration	10G
Shock	500G
Protection	IP52

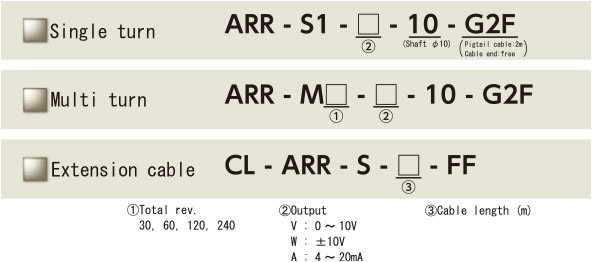

Model No.

Zero-full setting and change (or fine adjustment) of effective angle is possible with accessory "XVR Manager" (download of software and connecting terminal).
And monitoring the present value or alam status is also possible.

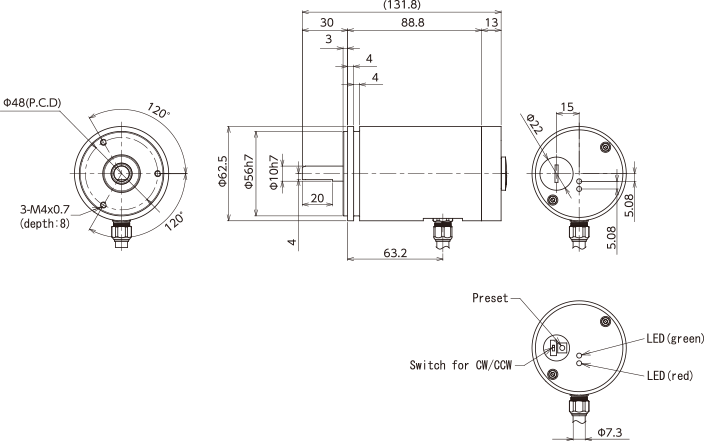

Dimensions

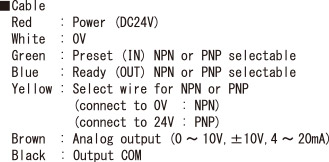

		Cable
